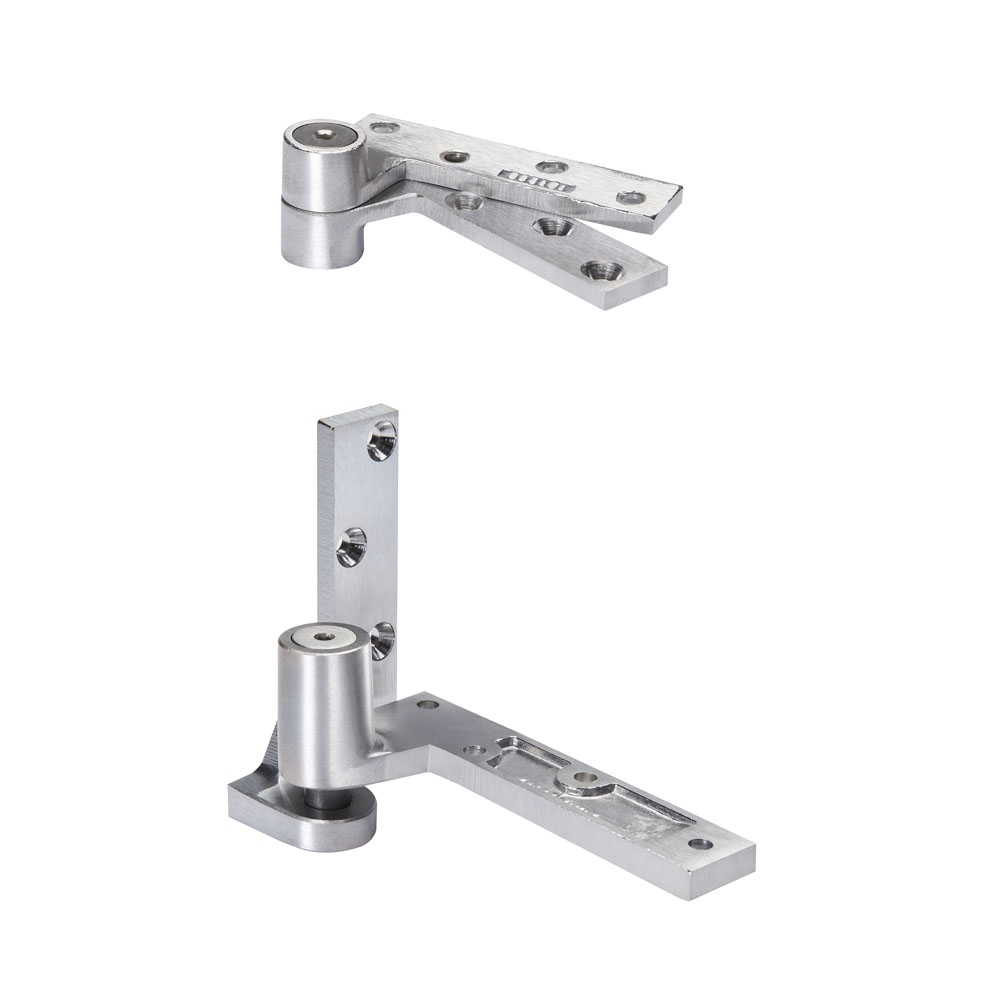

Rixson 195-RH-626 3/4" Offset Hung Pivot, Includes Top Pivot

The Rixson 195-RH-626 Offset Pivot Set is designed to provide a durable and reliable door hanging solution for offset pivot door applications. Engineered for performance, this pivot set distributes door weight to the floor, reducing stress on the frame and ensuring smooth long-term operation.

Manufactured by Rixson, an ASSA ABLOY brand, this pivot system includes the standard #180 top pivot and is ideal for both interior and exterior doors. The 3/4" offset design allows for improved weight distribution and compatibility with taller, heavier doors in commercial environments.

The Rixson 195-RH-626 Offset Pivot Set includes the following features:

• 3/4" offset pivot set for door hanging applications
• Includes standard #180 top pivot
• Satin Chrome (626) finish
• Right-hand (RH) configuration
• Suitable for interior and exterior doors
• Supports doors up to 450 lbs with proper intermediate pivots
• Accommodates door widths up to 4'0" (1219 mm)
• Jamb-attached pivot system
• Bottom pivot mortised into side jamb
• Weight of door supported at floor level for reduced frame stress
• Allows doors to swing up to 180°, trim permitting
• Vertical adjustment up to 3/16" (5 mm) without shims

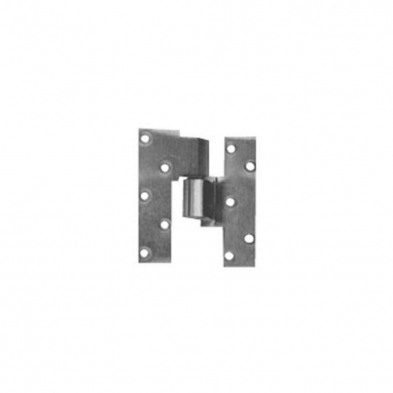

• Intermediate pivots (119 or M19) recommended for taller doors
• Additional intermediate pivots required for increased door height
• Non-ferrous base material construction
• Available for fire-rated assemblies with proper components (F195 / FM19)
• Requires beveled door edge (1/8" in 2")
• Extended spindles available for custom applications
• Furnished with wood and machine screws
