The 916 and 918 round push buttons are tamper-resistant with an extruded aluminum ¼” plate with beveled edges that provides additional durability. These mushroom push buttons are available in Momentary (2-SPST), maintained (2-SPST), or time-delay (DPDT) switches. The RCI 916 push button is devoted for handicap use and the RCI 918 push button is utilized for exit operation.
916 Tamper-Resistant Handicap Pushbutton
- Blue, 1-3/4" (44mm) diameter button
- Available with handicap symbol screen printed or blank
- Quickly mounts to single gang box (Standard) or narrow-stile door frames (Narrow)
- Extruded aluminum 1/4" (6.4mm) plate with beveled edges for tamper-resistance and durability
- Hardware kit includes stainless steel tamper-proof screws and spanner bit
- Momentary (2-SPST), maintained (2-SPST) or time-delay (DPDT) switches available
- Faceplate available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40)

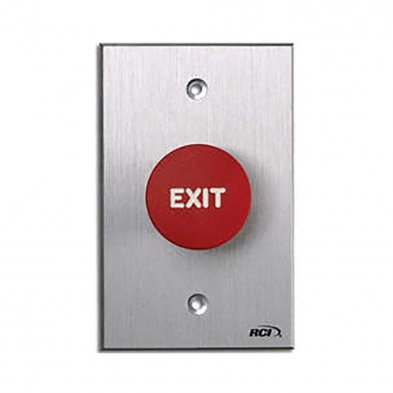

918 Tamper-Resistant Exit Pushbutton
- Red or green, 1-9/16" (40mm) diameter button
- Available with engraved “EXIT” (English, French or Spanish) or blank
- Quickly mounts to single gang box (Standard) or narrow-stile door frames (Narrow)
- Extruded aluminum 1/4" (6.4mm) plate with beveled edges for tamper-resistance and durability
- Hardware kit includes stainless steel tamper-proof screws and spanner bit Momentary (2-SPST), maintained (2-SPST) or time-delay (DPDT) switches available
- Faceplate available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40)
Technical Details
916 Tamper-Resistant Handicap Pushbutton
Standard: 3"W x 4-3/4"H (76mm x 121mm)
Narrow: 1-5/8"W x 4-3/4"H (45mm x 121mm)
918 Tamper-Resistant Exit Pushbutton
Standard: 3"W x 4-3/4"H (76mm x 121mm)
Narrow: 1-5/8"W x 4-3/4"H (45mm x 121mm)
Optional
Available as Handicap, Blank, Dark Bronze Finish
Accessories
9SURBOX - Surface-mount single gang box
TD30 - 30 second fixed timer (12/24VDC)
TD30A - 0-30 second adjustable timer (12/24VDC)
