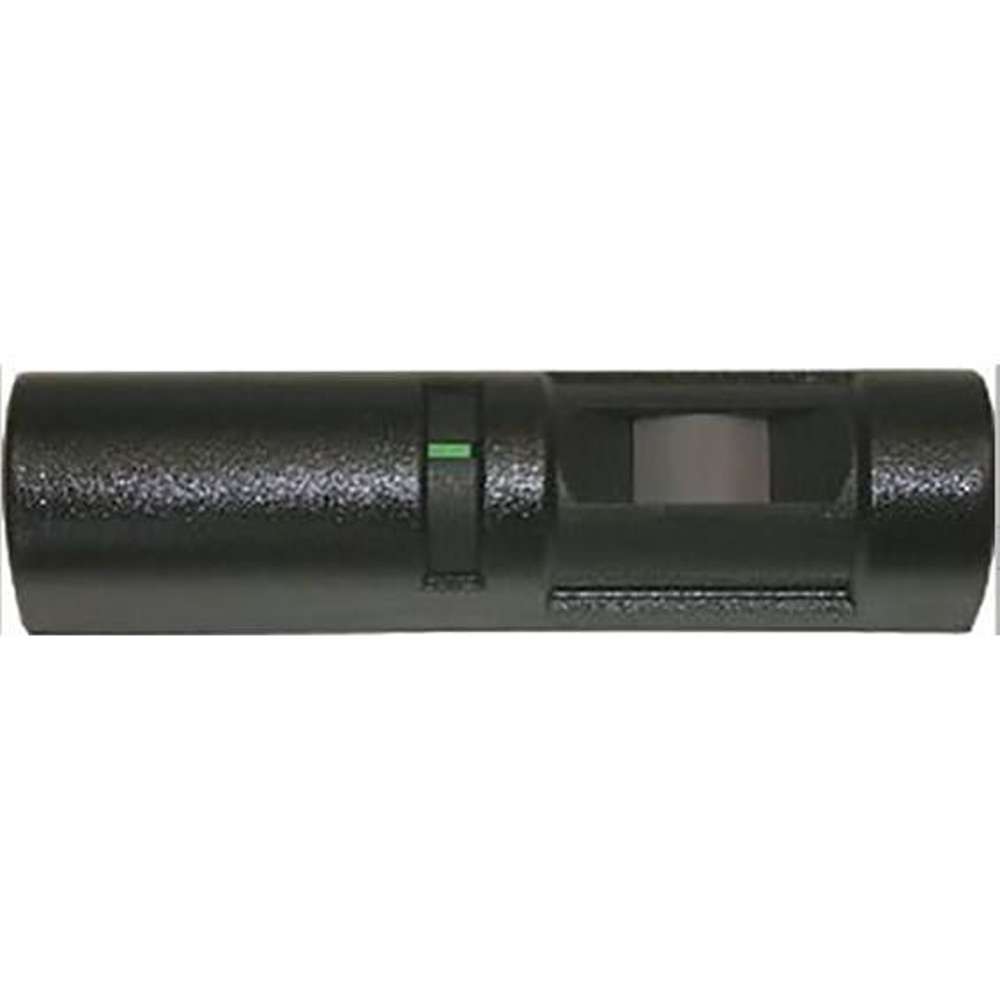

RCI 915-B-915-G Passive Infrared (PIR)

RCI 915-B-915-G Passive Infrared (PIR)

The 915 passive infrared device is a hands-free egress switch. The RCI 915 is ideal for request to exit applications that use electromagnetic locks. The hands-free switch is adjustable to allow for precise detection of the desired area. The RCI 915 is configured as a SPDT switch with an adjustable relay latch time delay of 2-60 seconds.

Technical Details
Dimensions: 6-1/4"W x 1-13/32"H x 1-1/2"D (159mm x 36mm x 38mm)

Ideal for Hands Free Request-to-Exit Applications

Blue (B) or Gray (G).

• Field-Selectable 12/24VDC
• 38mA max at 24VDC, 35mA at 12VDC
• Hands free release for electromagnetic locks
• Ideal for “request to exit” with electromagnetic locks
• Adjustable setting for precise detection area desired
• Adjustable-relay latch time delay (2-60 sec)
• Two Form C relays (rated 2A at 30VDC)
• SPDT switch configuration
• Available in Gray or Black
