RCI 10 Series Filtered Regulated Power Supplies

RCI 10 Series Filtered Regulated Power Supplies

The 10-3 & 10-3-FPD (Fire Panel Disconnect) power supplies operate at field selectable voltage of 3A at 12 VDC or 1.5A at 24VDC. The RCI power supplies have multiple listings for a wide variety of applications and include a collection of features for reliable operation. The RCI 10-3-FPD variant includes a multi-panel interconnect-fire disconnect with a fire interface for additional supervision and override capabilities.

• Jumper-selectable auto or manual reset
• Fire Panel Interface with Switching Output (FPD model only)
• “End of line” resistor supervision on fire interface
• Selectable ground fault detection on fire interface
• Instant unlock upon power failure
• Remote override reset capabilities for authorized personnel
• Multi-panel interconnect-fire disconnect

Technical Details

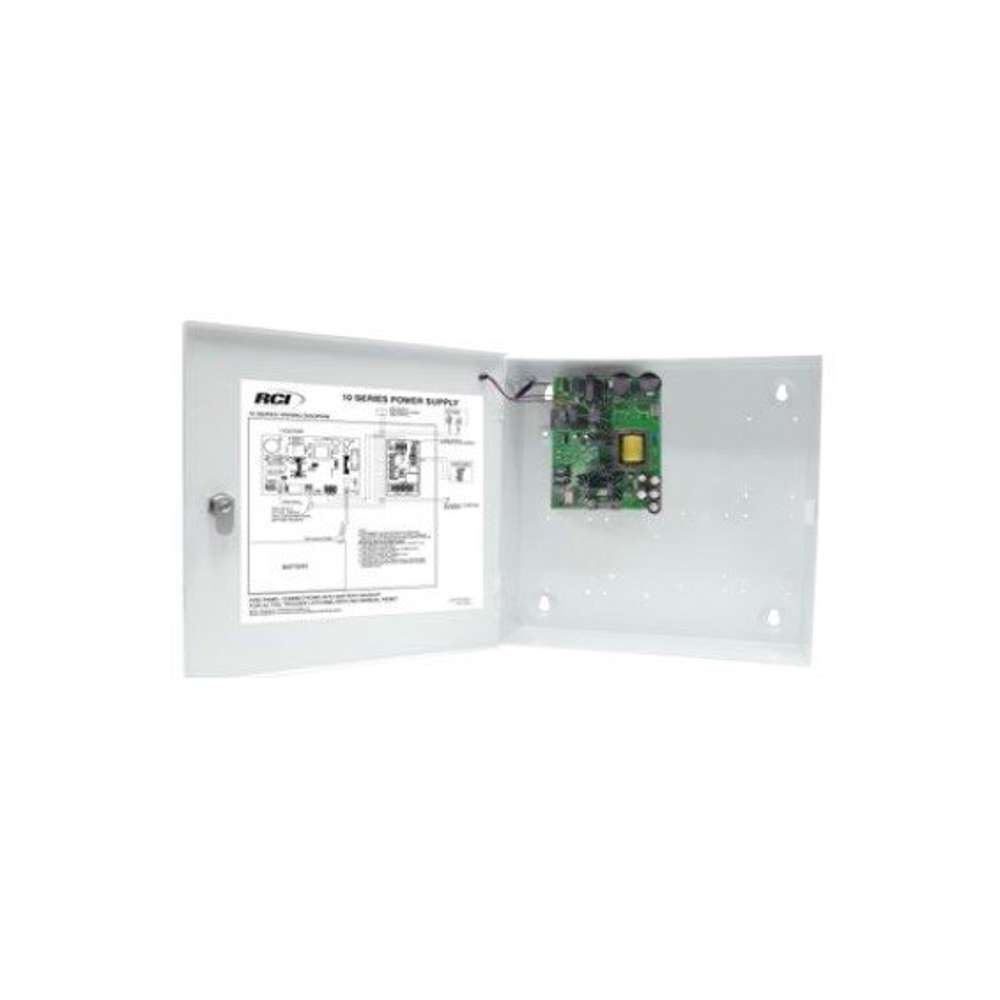

10-3 3A Power Supply
Dimensions: 12-1/2"W x 12-1/2"H x 4"D (318mm x 318mm x 102mm)

10-3-FPD 3A Power Supply with Fire Panel Disconnect
Dimensions: 12-1/2"W x 12-1/2"H x 4"D (318mm x 318mm x 102mm)

• UL 294 Listed for access control unit power supply
• CAN/ULC-S319 Listed for access control unit power supply for Canada

Applications
To Power Access Control Systems
To Power Electric Locking Systems
To Power Electromagnetic Locking System

RCI 10 Series Filtered Regulated Power Supplies

Exceptional Brownout Protection

10-1 (1.5 Amp), 10-1-FPD (Fire Panel Disconnect), 10-3 (3 Amp), or 10-3-FPD (Fire Panel Disconnect).

• Shared Features of 10-3 & 10-3-FPD
• Multiple listing for a wide variety of applications
• Field-Selectable voltage 3A at 12VDC or 1.5A at 24VDC
• Filtered and regulated DC output
• Short circuit protection
• AC fail output relay
• Modular options
• External AC power indicator
• Easy installation
• Battery charging circuit
• Field-Selectable 3A At 12VDC 1.5A At 24VDC
• Lifetime Limited Warranty
• FPD – Fire Panel Disconnect
