Precision EPT-5 Power Transfer w-Armored Conduit

Precision EPT-5 Power Transfer w-Armored Conduit

Flexible Power Transfer Conduit. 5 Conductor. For use with Exit Devices. 11-1/2" Length.

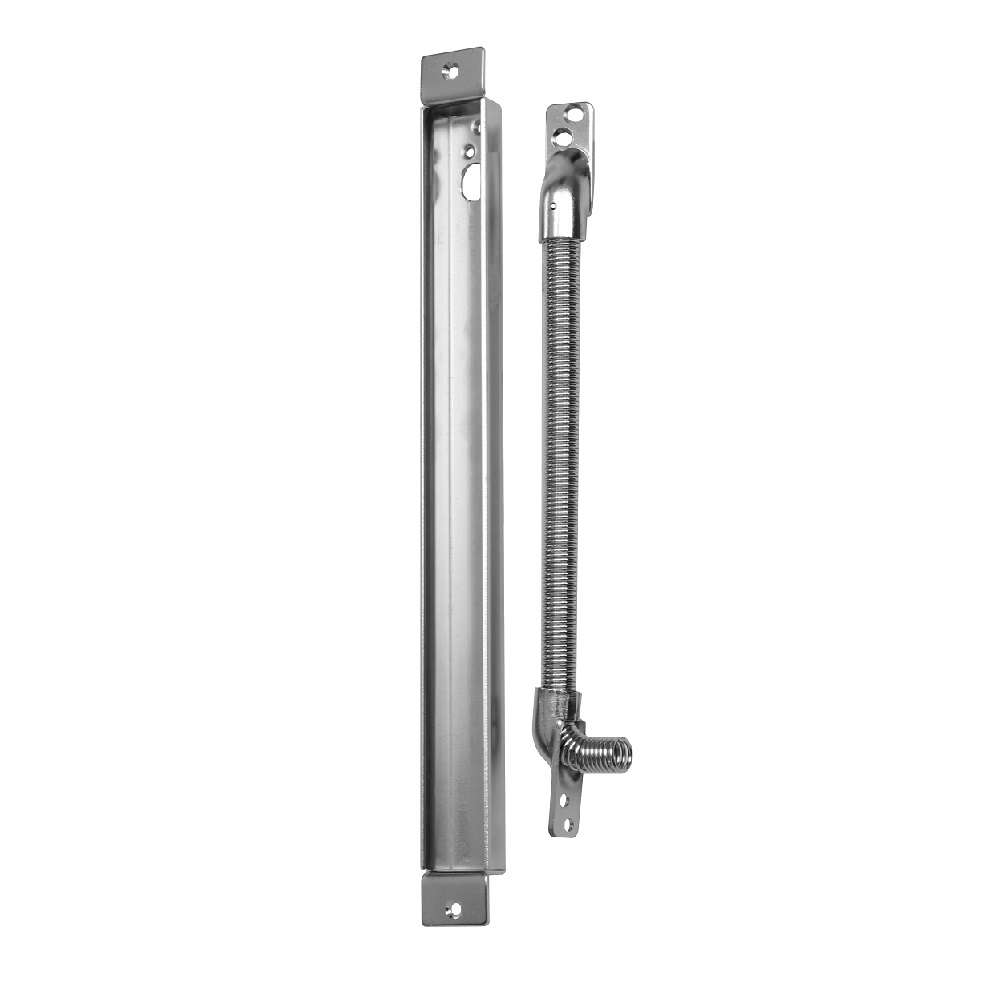

EPT-5 Power Transfer with stainless steel housing and flexible tube. Secure and inconspicuous channel to bring power from the frame to the door. Narrow, shallow channel easily mortises into frame edges. Accepts up to 5/16” diameter wire bundle. Accommodates doors that swing open 120 degrees. Unit is concealed when the door is closed. Suitable for wood, aluminum or steel application.

• Bright Chrome.
• Holds up to (10) 22 gauge Teflon coated wires.

Special Orders: For pricing on any Precision Hardware Exit Devices not on this page please contact Taylor via e-mail (sales@taylorsecurity.com) or call 1-800-676-7670.

The EPT-5 Power Transfer with Armored Flex Conduit is part of Precision Hardware

Design:

• Stainless steel housing with a flexible armored tube
• Narrow, shallow channel mortises into frame edges
• Concealed when the door is closed for tamper resistance and aesthetics

Capacity:

• Supports up to ten 22-gauge Teflon-coated wires
• Accepts wire bundles up to 5/16" diameter
• Compatibility:
• Suitable for wood, aluminum, or steel doors
• Works with BEST APEX electrified exit devices

Functionality:

• Accommodates doors that swing open up to 120 degrees
• Non-handed design for universal application
• UL Listed and UL10C fire-rated

Used in access control systems, especially where electrified hardware (e.g., locks, exit devices) is installed on the door

Delivery: The Precision EPT-5 Power Transfer w-Armored Conduit is factory-ordered, please allow 8-10 business days' lead time.
