PHI CM150-08 Control Module (on/off adjustable Time Delay standard) for ELR150 Series Power Supply

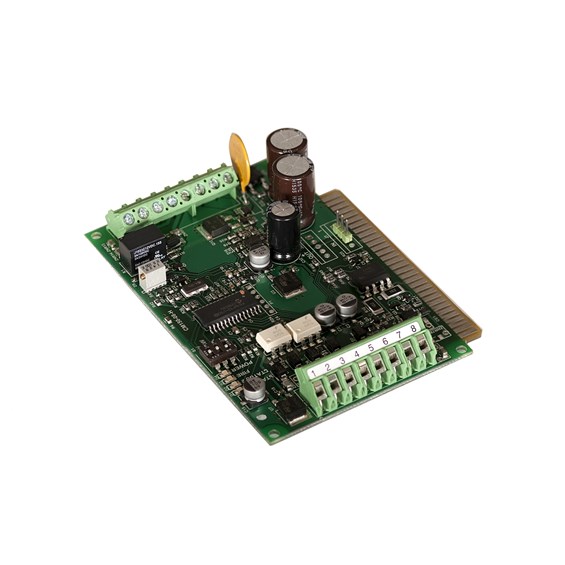

The CM150-08 Control Module is a card that is installed in the ELR150 Series Power Supply and controls one ELR device and includes a Time Delay Feature. The Time Delay provides a variable Latch Retraction period in response to a momentary input

Voltage Input

• Input Voltage: 5-24VDC or VAC
• Input Current: approx. 0.005 Amp.
• Minimum pulse width: 0.25 seconds

Output

Current Pulse: 4.75 Amp. (2 seconds max.)

Continuous: 3.6 VDC / 0.8 Amp.

Time Delay

User selectable: 0-4 minutes delay after input is removed

Fire Alarm Terminal

• Red LED (D3) blinks when Fire Alarm interrupts circuit
• Provides immediate termination of output

Switch Input

Accepts normally closed contacts or 5-24 Volts from a listed fire detecting device.

Voltage Input

• Input Current: 0.005 Amp.
• Minimum pulse width: 0.25 seconds

Auxiliary Contacts

• Relay isolated contacts provided for remote signaling (e.g. door operator)
• Normally open or normally closed contacts are rated at 0.5 Amp., 24VDC or VAC
• Contact operation follows successful operation of the ELR device.

Precision CM150-08 ELR Control Module

• UL Listed for Class II Output.
• UL 294 - Conforms to U.L. 294 Standards incorporating enhanced Access Control communication capabilities.
• Circuit breakers provide protection for Motherboard.
• 115 or 230 Volt user selectable switch.
• A.C. Input = 115 Volts at 1 Amp.
• Battery Back-up / Power Tap available.
• LED Indicator - Provides clear indication that power is available to the supply.
• Keyed Cabinet - To maintain safety and security, each Power Supply is equipped with a preinstalled key-cylinder.
• Includes lockable box with key lock.
• Dimensions: 16" W x 14" H x 6" D.
• Weight: 15 lbs.
