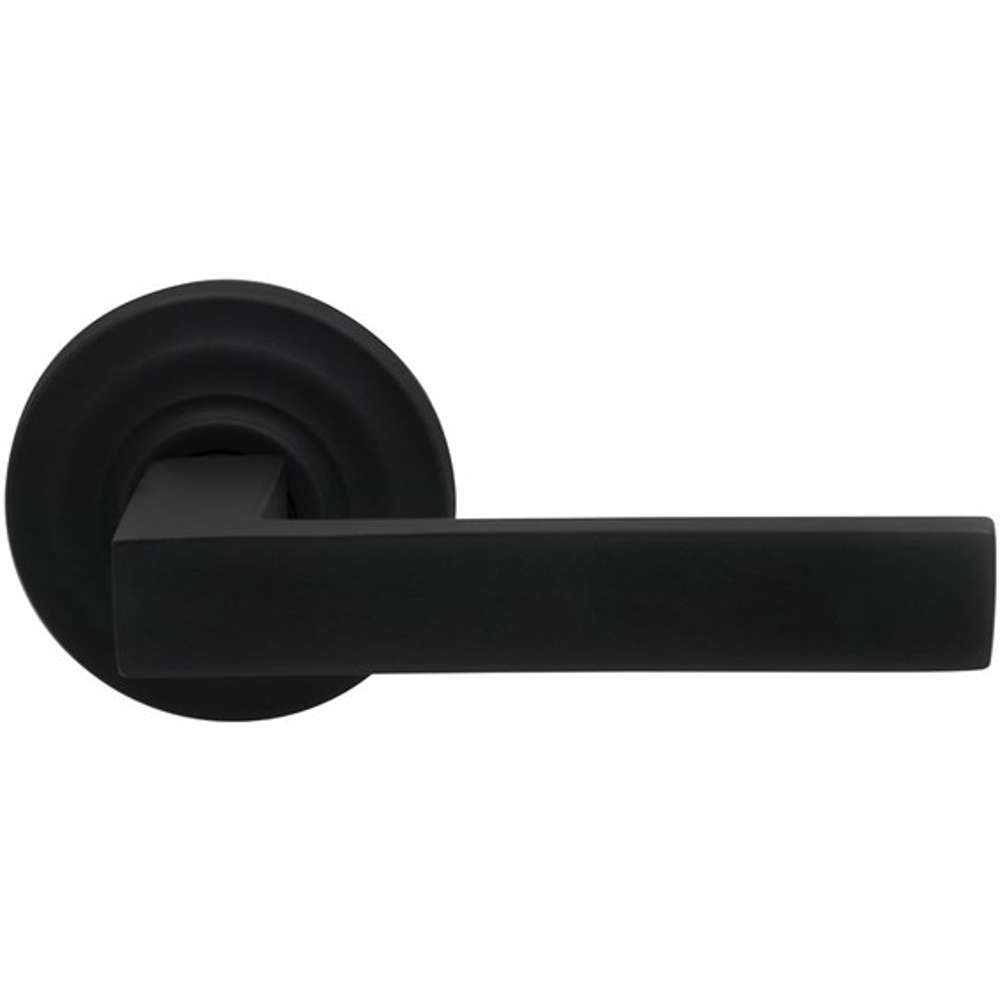

Omnia 930TD-PA-US10B-RH Style Lever Traditional Rose
Omnia 930TD, Square Leverset with Round Rose
The modern shape of Omnia's 930 Lever is accented in this leverset by the traditional stepped round rose. It is a stunning juxtaposition of hard and soft--a very contemporary statement in both the world of fashion and in the home decorating world. The Square Lever with Stepped Round Rose is available as a dummy, passage, or privacy set. Choose from 7 finishes with modern and traditional options. The Square Leverset with Round Rose is available for either 2-3/8" or 2-3/4" backsets and the two functions are packaged for both 1-3/8" or 1-3/4" thick doors.
Features:
Concealed screw mounting.
Full lip strike comes standard.
28° rotation to retract latch.
Covers 2-1/8" bore hole.
Omnia Prodigy Installation Instructions (PDF)
Specifications:
Lever Length: 4-3/4"
Lever Projection: 2-1/2"
Rose Diameter: 2-5/8"
Backset: Optional 2-3/8" or 2-3/4"
Door Thickness: 1-3/8" or 1-3/4"
When Selecting Function:
Single Dummy: A stationary lever for use as a pull or to match trim on one side of door. Includes 1 lever, 1 rose, and mounting screws.
Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door. Complete set - 2 levers, 2 roses, 2 sub-roses, tubular latch, strike plate, spindle, and mounting screws.
Privacy (bedroom or bathroom): For doors that could need locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy and retract latchbolt. Complete set - 2 levers, 2 roses, 2 sub-roses, privacy button, tubular latch, strike plate, spindle, and mounting screws.
