Omnia 930SQ-PA-US14-LH Style Lever Square Rose
The Omnia 930 square door lever with square rose is the perfect addition to contemporary homes with its sleek, clean lines that reflect the current style trends that are so popular in home decorating right now. the Omnia 930SQ leversets are available in 8 finishes and 4 functions.
All the Omnia Prodigy Collection door levers features 28 degree retraction latches for that high end feeling of quality you expect Omnia Industries door hardware.
Features:
Concealed screw mounting.

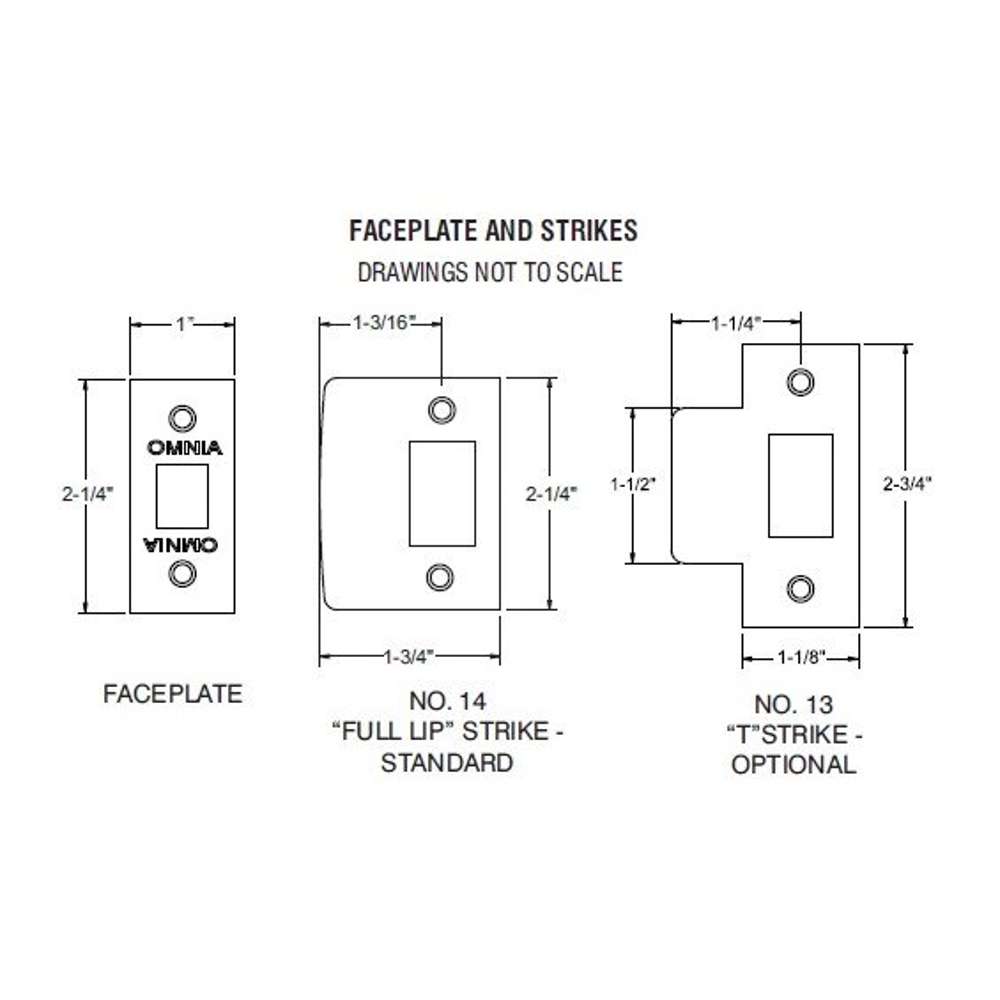

Full lip strike comes standard.
28° rotation to retract latch.
Covers 2-1/8" bore hole.
Omnia Prodigy Installation Instructions (PDF)
Specifications:
Lever Length: 4-3/4"
Lever Projection: 2-1/2"
Rose: 2-9/16" Square
Backset: Optional 2-3/8" or 2-3/4"
Door Thickness: 1-3/8" or 1-3/4"
When Selecting a Function:
Single Dummy: A stationary lever for use as a pull or to match trim on one side of door. Includes 1 lever, 1 rose, and mounting screws.
Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door. Complete set - 2 levers, 2 roses, 2 sub-roses, tubular latch, strike plate, spindle, and mounting screws.
Privacy (bedroom or bathroom): For doors that could need locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy and retract latchbolt. Complete set - 2 levers, 2 roses, 2 sub-roses, privacy button, tubular latch, strike plate, spindle, and mounting screws.
