Omnia 930MD-SD-US10B-LH Style Lever Modern Rose

SKU # OM/930MD-SD-US10B-LH

Read Review(s) | Log in to Review

The "930MD" Lever is part of the Omnia Prodigy Series

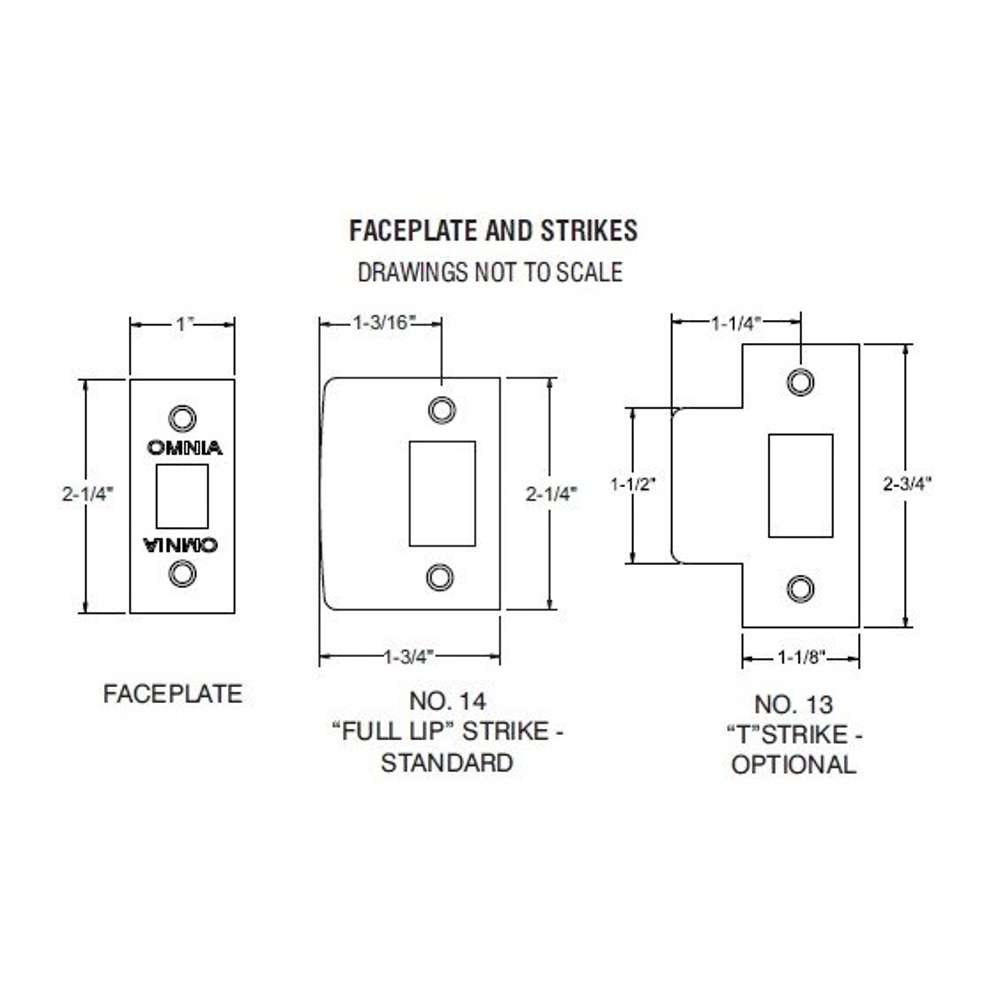

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 014 "Full Lip" Strike, and are available for 1-3/8" & 1-3/4" Thick Doors"

Features:
Crafted from high quality solid brass for a durable and long lasting life.
Modern styling provides a sleek and clean look that can be incorporated into any home.
Includes all required hardware for installation.

Key Product Attributes:

  • Single Dummy: Dummy leversets have no latch or locking mechanism. Typically dummy leversets are used as merely a pull on the inactive side of a double door. This is a single dummy, and comes with only one lever. Pair two of these with a passage or keyed leverset for a complete double door solution.
  • Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.

Specifications:
Handing: Left, Reversible, Right
Handle Style: Lever
Lever Length: 4.75
Projection: 2.5
Shape: Square, Straight
Solid Construction: Solid Brass

US$69.00

Taylor Security ID #: 2453328003

Description:

Description:

Omnia 930MD-SD-US10B-LH Style Lever Modern Rose

Omnia 930MD, New-Fashioned Square Lever with Modern Round Rose
Omnia's 930MD Leverset is a strongly designed, contemporary lever great for modern spaces everywhere. The New-Fashioned Lever is available in dummy, passage, and privacy functions. The passage and privacy functions are available for either 2-3/8" or 2-3/4" backsets and the two functions are packaged for both 1-3/8" or 1-3/4" thick doors. Choose from 8 finishes.

Features:
Concealed screw mounting.
Full lip strike comes standard.
28° rotation to retract latch.
Covers 2-1/8" bore hole.
Omnia Prodigy Installation Instructions (PDF)

Specifications:
Lever Length: 4-3/4"
Lever Projection: 2-1/2"
Rose Diameter: 2-5/8"
Backset: Optional 2-3/8" or 2-3/4"
Door Thickness: 1-3/8" or 1-3/4"

When Selecting a Function:
Single Dummy: A stationary lever for use as a pull or to match trim on one side of door. Includes 1 lever, 1 rose, and mounting screws.
Double Dummy: A stationary lever for use as a pull or to match trim on both sides of door. Includes 2 levers, 2 roses, and mounting screws.
Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door. Complete set - 2 levers, 2 roses, 2 sub-roses, tubular latch, strike plate, spindle, and mounting screws.
Privacy (bedroom or bathroom): For doors that could need locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy and retract latchbolt. Complete set - 2 levers, 2 roses, 2 sub-roses, privacy button, tubular latch, strike plate, spindle, and mounting screws.

Features:

Features:

The "930MD" Lever is part of the Omnia Prodigy Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 014 "Full Lip" Strike, and are available for 1-3/8" & 1-3/4" Thick Doors"

Features:
Crafted from high quality solid brass for a durable and long lasting life.
Modern styling provides a sleek and clean look that can be incorporated into any home.
Includes all required hardware for installation.

Key Product Attributes:

  • Single Dummy: Dummy leversets have no latch or locking mechanism. Typically dummy leversets are used as merely a pull on the inactive side of a double door. This is a single dummy, and comes with only one lever. Pair two of these with a passage or keyed leverset for a complete double door solution.
  • Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.

Specifications:
Handing: Left, Reversible, Right
Handle Style: Lever
Lever Length: 4.75
Projection: 2.5
Shape: Square, Straight
Solid Construction: Solid Brass

Specifications:

Specifications:

Click here for Omnia Prodigy Latchset Data Sheet

Literature:

Literature:

Click Here for Omnia Product Catalog

Product Videos:

Product Videos:
