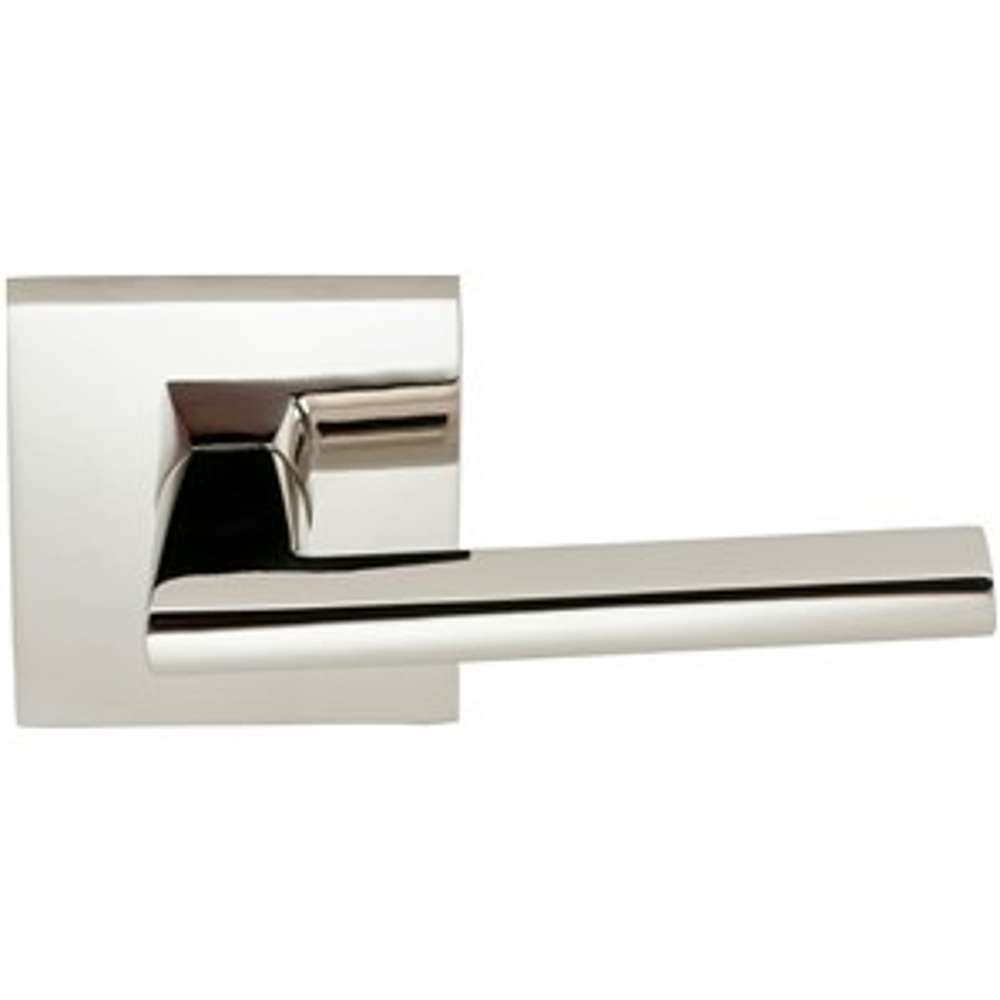

Omnia 925SQ-PA-US14-RH Style Lever Square Rose

SKU # OM/925SQ-PA-US14-RH

Read Review(s) | Log in to Review

The "925SQ" Lever is part of the Omnia Prodigy Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 014 "Full Lip" Strike, and are available for 1-3/8" & 1-3/4" Thick Doors"

OMNIA’s latchsets are packaged complete with knobs or levers, specified roses, tubular latch, a metal spring loaded sub-rose, spindle, and all mounting hardware. Sets are concealed screw mounted.

  • An installation template is included.
  • Door prep: 2-1/8 in. bore hole
  • Supplied with both 2-3/8 in. backset and 2-3/4 in. backset.
  • Supplied for both 1-3/8 in. or 1-3/4 in. door thickness.
  • Supplied with No. 013 T-strike and No. 014 Full Lip strike.
  • Tubular Latch - 55 degree latch standard for Knobsets. 28 degree latch standard for Leversets. 28 degree latch option available for knob sets by special order only. Please call.
  • Functions are passage, privacy, and single dummy. Must specify when ordering.
  • Passage function: Latch operates by knob or lever from either side of door. Uses 8mm solid spindle.
  • Lever: 4-5/8 in. length
  • Projection: 2-3/4 in.
  • Rose: 2-5/8 in. square, 1/2 in. projection
US$141.75

Taylor Security ID #: 2453320008

Description:

Description:

Omnia 925SQ-PA-US14-RH Style Lever Square Rose

Features:
Solid Brass construction provides a luxurious feel and long lasting durability
Reversible handing for maximum versatility
Includes all mounting hardware and instructions for easy installation
Mounted with concealed screws for a clean, seamless look
Comes with standard 55 degree rotation latch or optional 28 degree rotation latch for easier turning and smoother operation
Covered under a 1-year limited manufacturer warranty
Meets ADA accessibility requirements
Supplied with standard full lip strike plate (T strike plate available)
Product Technologies:

Passage Function: Omnia's passage lever sets have no locking function and are free turning on both sides. These levers are perfect for a hallway or closet where no locking is necessary. Sometimes passage levers are used in conjunction with a deadbolt for an entrance or back door.

Specifications:
Backset: 2-3/8" (Standard) or 2-3/4"
Cross Bore: 2-1/8"
Edge Bore: 7/8"
Door Thickness: 1-3/4", 1-3/8"
Handing: Left, Reversible, Right
Lever Length: 4-5/8"
Projection: 2-3/4"
Latch Faceplate: Square Corner

Features:

Features:

The "925SQ" Lever is part of the Omnia Prodigy Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 014 "Full Lip" Strike, and are available for 1-3/8" & 1-3/4" Thick Doors"

OMNIA’s latchsets are packaged complete with knobs or levers, specified roses, tubular latch, a metal spring loaded sub-rose, spindle, and all mounting hardware. Sets are concealed screw mounted.

  • An installation template is included.
  • Door prep: 2-1/8 in. bore hole
  • Supplied with both 2-3/8 in. backset and 2-3/4 in. backset.
  • Supplied for both 1-3/8 in. or 1-3/4 in. door thickness.
  • Supplied with No. 013 T-strike and No. 014 Full Lip strike.
  • Tubular Latch - 55 degree latch standard for Knobsets. 28 degree latch standard for Leversets. 28 degree latch option available for knob sets by special order only. Please call.
  • Functions are passage, privacy, and single dummy. Must specify when ordering.
  • Passage function: Latch operates by knob or lever from either side of door. Uses 8mm solid spindle.
  • Lever: 4-5/8 in. length
  • Projection: 2-3/4 in.
  • Rose: 2-5/8 in. square, 1/2 in. projection

Specifications:

Specifications:

Click here for Omnia Prodigy Latchset Data Sheet

Literature:

Literature:

Click Here for Omnia Product Catalog
