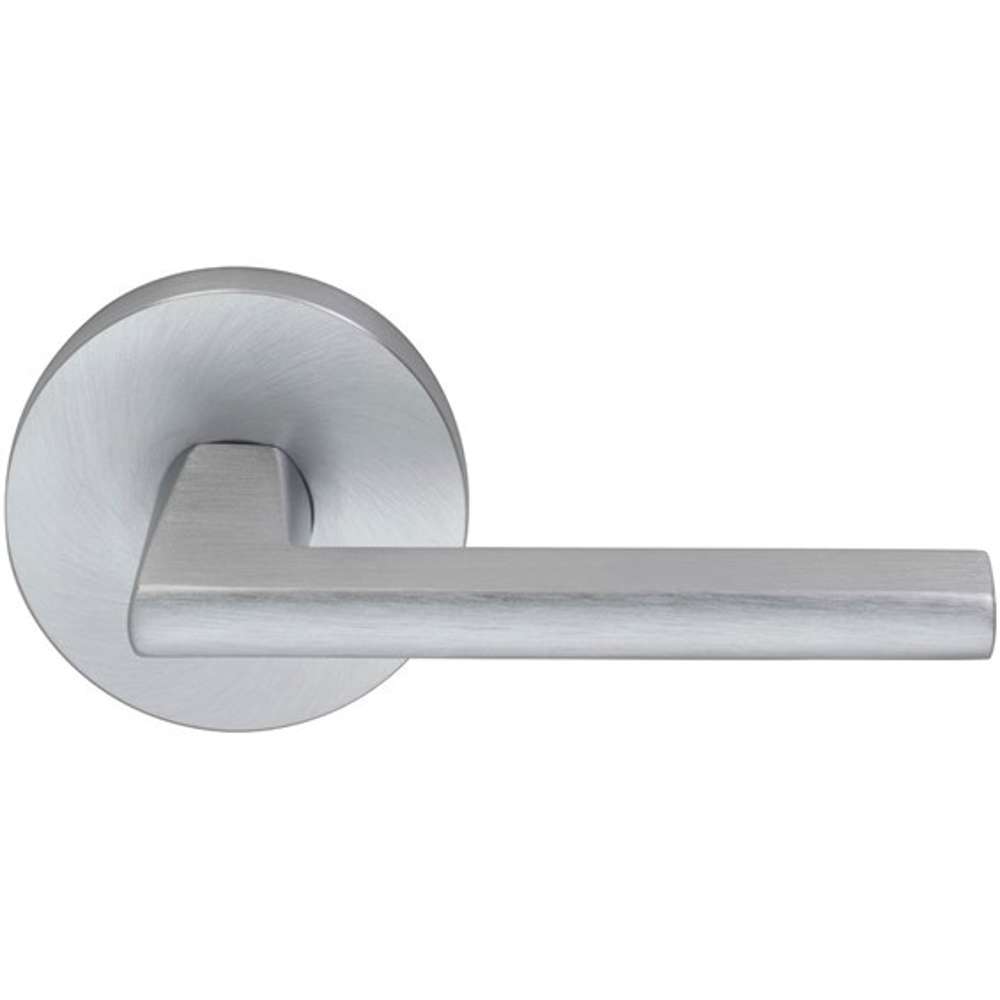

Omnia Prodigy "925MD" Style Lever (Modern Rose)

Omnia Prodigy "925MD" Style Lever (Modern Rose)

Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.

Features:
Constructed of high quality brass for lasting durability
Installs easily with all necessary mounting hardware included
Covered by a 1 year limited warranty
ADA compliant
Features concealed screws for a streamlined look

Product Technologies:
Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.

Specifications:
Backset: 2-3/4", 2-3/8"
Cross Bore: 2-1/8"
Edge Bore: 7/8"
Door Thickness: 1-1/2", 1-3/4", 1-3/8", 1-5/8"
Handing: Left, Reversible, Right
Latch Faceplate: Square Corner

The "925MD" Lever is part of the Omnia Prodigy Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 014 "Full Lip" Strike, and are available for 1-3/8" & 1-3/4" Thick Doors"

OMNIA’s latchsets are packaged complete with knobs or levers, specified roses, tubular latch, a metal spring loaded sub-rose, spindle, and all mounting hardware. Sets are concealed screw mounted.

• An installation template is included.
• Door prep: 2-1/8 in. bore hole
• Supplied with both 2-3/8 in. backset and 2-3/4 in. backset.
• Supplied for both 1-3/8 in. or 1-3/4 in. door thickness.
• Supplied with No. 013 T-strike and No. 014 Full Lip strike.
• Tubular Latch - 55 degree latch standard for Knobsets. 28 degree latch standard for Leversets. 28 degree latch option available for knob sets by special order only. Please call.
• Privacy function: Latch operates by lever from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy and retract latchbolt. For bathroom or bedroom.
• Lever: 4-5/8 in. length
• Projection: 2-3/4 in.
• Rose: 2-5/8 in. diameter, 1/2 in. projection
