Omnia 912TD-PR-TB-RH Style Lever Traditional Rose

Omnia 912TD-PR-TB-RH Style Lever Traditional Rose

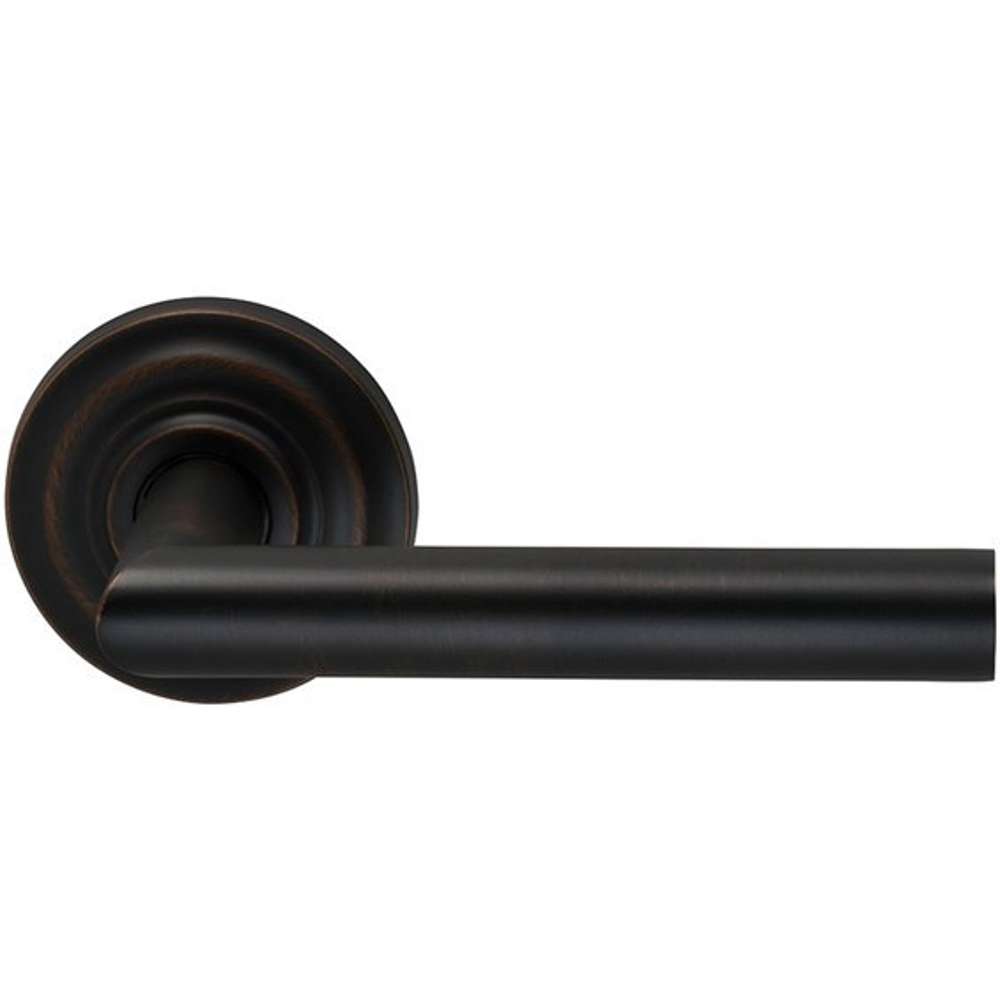

Omnia 912TD, Sleek Lever with Traditional Rose
The beauty of the round rose and simple lever are sure to be eye-catching on any door. A true classic, the Sleek Lever With Stepped Round Rose is the perfect addition to traditional as well as contemporary homes. The stepped round rose adds a point of interest to an otherwise simple lever. Made by Omnia Industries, the 912TD Leverset is available in single dummy, double dummy, passage, and privacy functions. Both the single dummy and the double dummy functions feature concealed surface mounting for easy installation. The passage and privacy functions are available for either 2-3/8" or 2-3/4" backsets and the two functions are packaged for both 1-3/8" or 1-3/4" thick doors.

Features of the Sleek Leverset:
Concealed screw mounting.
Full lip strike comes standard.
28° rotation to retract latch.
Covers 2-1/8" bore hole.

Specifications of the Omnia 912TD Sleek Lever With Round Rose:
Lever Length: 5-1/4"
Lever Projection: 3"
Rose Diameter: 2-5/8"
Backset: Optional 2-3/8" or 2-3/4"
Door Thickness: 1-3/8" or 1-3/4"
When Selecting Function:

Single Dummy: A stationary lever for use as a pull or to match trim on one side of door. Includes 1 lever, 1 rose, and mounting screws.
Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door. Complete set - 2 levers, 2 roses, 2 sub-roses, tubular latch, strike plate, spindle, and mounting screws.
Privacy (bedroom or bathroom): For doors that could need locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy and retract latchbolt. Complete set - 2 levers, 2 roses, 2 sub-roses, privacy button, tubular latch, strike plate, spindle, and mounting screws.
Note: Single Dummy is Handed. All other functions are non-handed.

The "912TD" Lever is part of the Omnia Prodigy Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 014 "Full Lip" Strike, and are available for 1-3/8" & 1-3/4" Thick Doors"

Omnia 912TDPR Privacy Door Lever Set from the Stainless Steel Collection

OMNIA's line of Stainless Steel latch-sets and lock sets are designed to enhance any setting where a modern, sophisticated look is desired. Every piece is strong and durable, made from premium grade materials and coupled with interior components that prove worthy of OMNIA's exceptional standards.

Features:
Solid brass construction, finished and polished by hand
55 degree rotation to retract latch (28 degree latch available)
"Full Lip" strike supplied as standard or "T" strike as an option
Concealed screws
All latchsets meet ADA accessibility requirements
Traditional Rose

Specifications:
Backset: 2-3/8" (standard) or 2-3/4"
Door Thickness: 1-3/8" and 1-3/4"
Cross Bore: 2-1/8"
Handle Length: 5-1/4"
Projection: 3"

Privacy Function: Omnia's privacy levers feature a push button lock on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side of this privacy knobset features a small pin hole to unlock the lever from the outside. Emergency release tool included (small pin).
