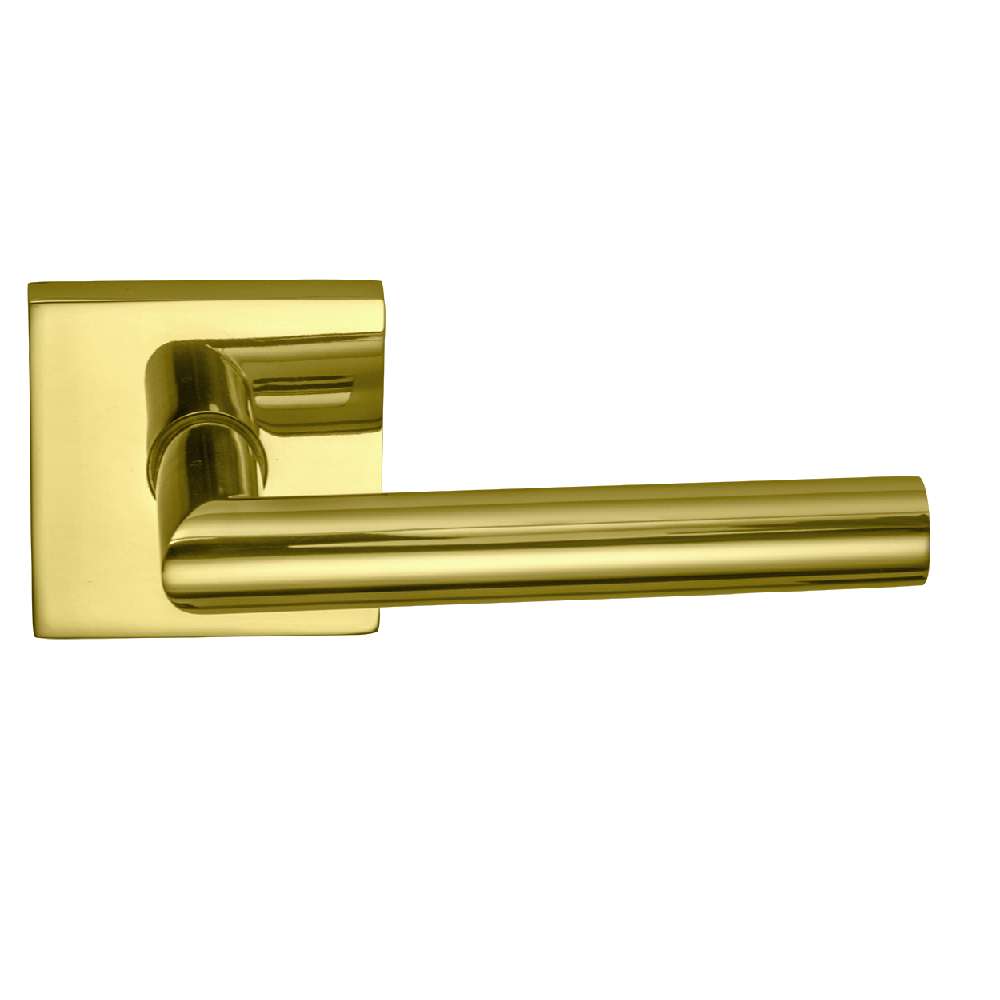

Omnia Prodigy "912SQ" Style Lever (Square Rose)

Omnia Prodigy "912SQ" Style Lever (Square Rose)

The Omnia 912 contemporary door lever with square rose is the perfect addition to contemporary homes with its sleek, clean lines that reflect the current style trends that are so popular in home decorating right now. the Omnia 912SQ leversets are available in 8 finishes and 4 functions.

Features of the 912SQ Contemporary Square Rose Leverset:

• Concealed screw mounting.
• Full lip strike comes standard.
• 28° rotation to retract latch.
• Covers 2-1/8" bore hole.
• Omnia Prodigy Installation Instructions (PDF)

Specifications of the Omnia 912SQ Contemporary Square Rose Leverset:

• Lever Length: 5-1/4"
• Lever Projection: 3"
• Rose: 2-9/16" Square
• Backset: Optional 2-3/8" or 2-3/4"
• Door Thickness: 1-3/8" or 1-3/4"
• When Selecting a Function:

Single Dummy: A stationary lever for use as a pull or to match trim on one side of door. Includes 1 lever, 1 rose, and mounting screws.
Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door. Complete set - 2 levers, 2 roses, 2 sub-roses, tubular latch, strike plate, spindle, and mounting screws.
Privacy (bedroom or bathroom): For doors that could need locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy and retract latchbolt. Complete set - 2 levers, 2 roses, 2 sub-roses, privacy button, tubular latch, strike plate, spindle, and mounting screws.

The "912SQ" Lever is part of the Omnia Prodigy Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 014 "Full Lip" Strike, and are available for 1-3/8" & 1-3/4" Thick Doors"

OMNIA’s latchsets are packaged complete with knobs or levers, specified roses, tubular latch, a metal spring loaded sub-rose, spindle, and all mounting hardware. Sets are concealed screw mounted.
An installation template is included.

• Door prep: 2-1/8 in. bore hole
• Supplied with both 2-3/8 in. backset and 2-3/4 in. backset.
• Supplied for both 1-3/8 in. or 1-3/4 in. door thickness.
• Supplied with No. 013 T-strike and No. 014 Full Lip strike.
• Tubular Latch - 55 degree latch standard for Knobsets. 28 degree latch standard for Leversets. 28 degree latch option available for knob sets by special order only. Please call.
• Functions are passage, privacy, and single dummy. Must specify when ordering.
• Privacy function: Latch operates by lever from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy and retract latchbolt. For bathroom or bedroom.
• Lever: 5-1/4 in. length
• Projection: 3 in.
• Rose: 2-5/8 in. square, 1/2 in. projection
• Specify finish when ordering.
• All lever latchsets meet ADA accessibility requirements.
