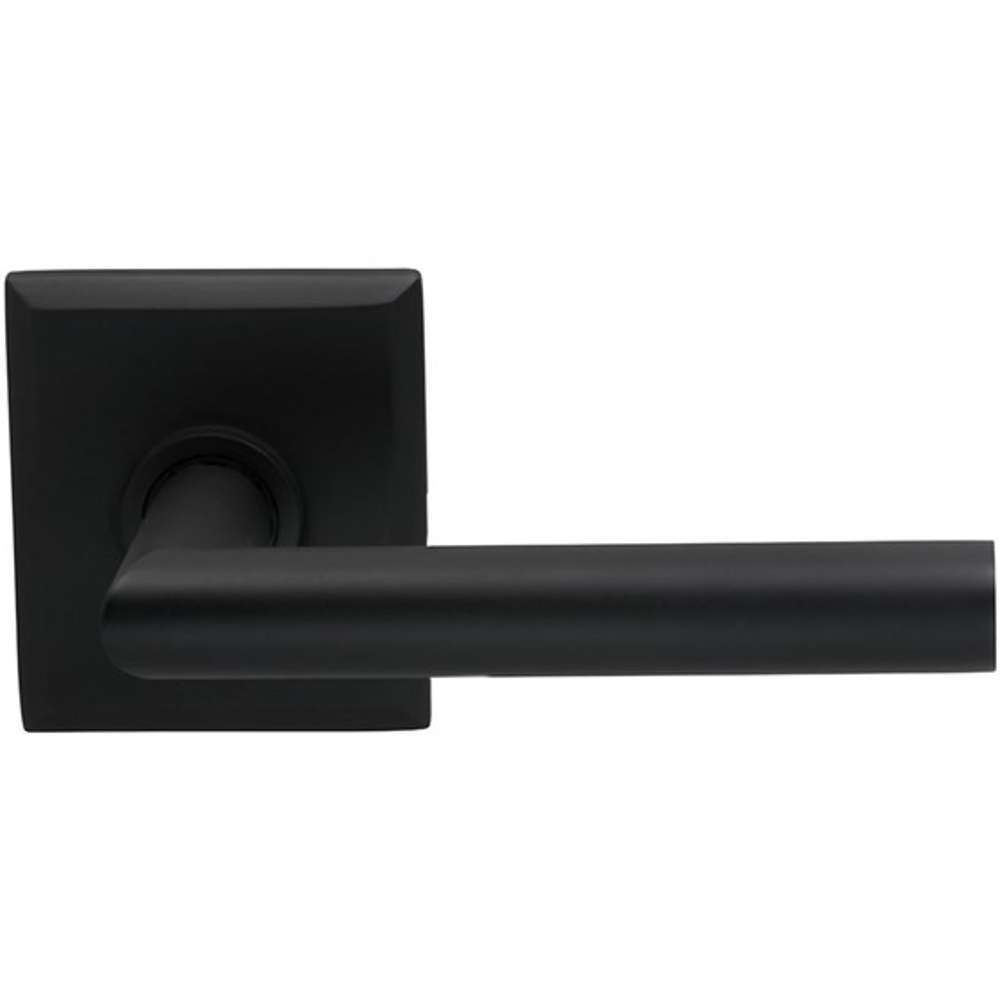

Omnia 912RT-SD-US10B-LH Prodigy Style Lever (Rectangular Rose)

SKU # OM/912RT-SD-US10B-LH

Read Review(s) | Log in to Review

All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 014 "Full Lip" Strike, and are available for 1-3/8" and 1-3/4" Thick Doors

OMNIA’s latchsets are packaged complete with knobs or levers, specified roses, tubular latch, a metal spring loaded sub-rose, spindle, and all mounting hardware. Sets are concealed screw mounted.
An installation template is included.
  • Door prep: 2-1/8 in. bore hole
  • Supplied with both 2-3/8 in. backset and 2-3/4 in. backset.
  • Supplied for both 1-3/8 in. or 1-3/4 in. door thickness.
  • Supplied with No. 013 T-strike and No. 014 Full Lip strike.
  • Tubular Latch - 55 degree latch standard for Knobsets. 28 degree latch standard for Leversets. 28 degree latch option available for knob sets by special order only. Please call.
  • Single Dummy: Trim on one side of door only. Knob or lever surface mounted, concealed screw (unassembled).
  • Lever: 5-1/4 in. length
  • Projection: 3 in.
  • Rose: 2-5/8 in. W x 3 in. H, 1/2 in. projection
  • Specify finish when ordering.
  • All lever latchsets meet ADA accessibility requirements.

Delivery: The Omnia 912RT-SD-US10B-LH Prodigy Style Lever (Rectangular Rose) is factory-ordered, please allow 8-10 business days' lead time.

US$69.00

Taylor Security ID #: 2453304003

Omnia

You may also like

Description:

Description:

Omnia 912RT-SD-US10B-LH Prodigy Style Lever (Rectangular Rose)

  • Material: Brass
  • Function: Privacy: Push pin provided for privacy inside room. Emergency release hole for an outside room. Emergency release key is also provided.
  • Backset: 2 3/8" (Most Common, if you require a different backset, please contact customer service priot to placing your order.)
  • Door Thickness: Supplied for both 1 3/8" and 1 3/4" door thickness as standard.
  • Latch:
    • 55° rotation to retract latch
    • Tough, non-rusting materials used throughout. Face covers and strikes are solid brass.
    • Lever Length: 5 1/4"
    • Lever Projection: 3"
    • Rose Width: 2 5/8"
    • Rose Height: 3"
    • Finish Shown: Polished Nickel (US14)

Features:

Features:

All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 014 "Full Lip" Strike, and are available for 1-3/8" and 1-3/4" Thick Doors

OMNIA’s latchsets are packaged complete with knobs or levers, specified roses, tubular latch, a metal spring loaded sub-rose, spindle, and all mounting hardware. Sets are concealed screw mounted.
An installation template is included.
  • Door prep: 2-1/8 in. bore hole
  • Supplied with both 2-3/8 in. backset and 2-3/4 in. backset.
  • Supplied for both 1-3/8 in. or 1-3/4 in. door thickness.
  • Supplied with No. 013 T-strike and No. 014 Full Lip strike.
  • Tubular Latch - 55 degree latch standard for Knobsets. 28 degree latch standard for Leversets. 28 degree latch option available for knob sets by special order only. Please call.
  • Single Dummy: Trim on one side of door only. Knob or lever surface mounted, concealed screw (unassembled).
  • Lever: 5-1/4 in. length
  • Projection: 3 in.
  • Rose: 2-5/8 in. W x 3 in. H, 1/2 in. projection
  • Specify finish when ordering.
  • All lever latchsets meet ADA accessibility requirements.

Delivery: The Omnia 912RT-SD-US10B-LH Prodigy Style Lever (Rectangular Rose) is factory-ordered, please allow 8-10 business days' lead time.

Specifications:

Specifications:

Click Here for Omnia Prodigy Latchset Data Sheet

Literature:

Literature:

Click Here for Omnia Product Catalog
