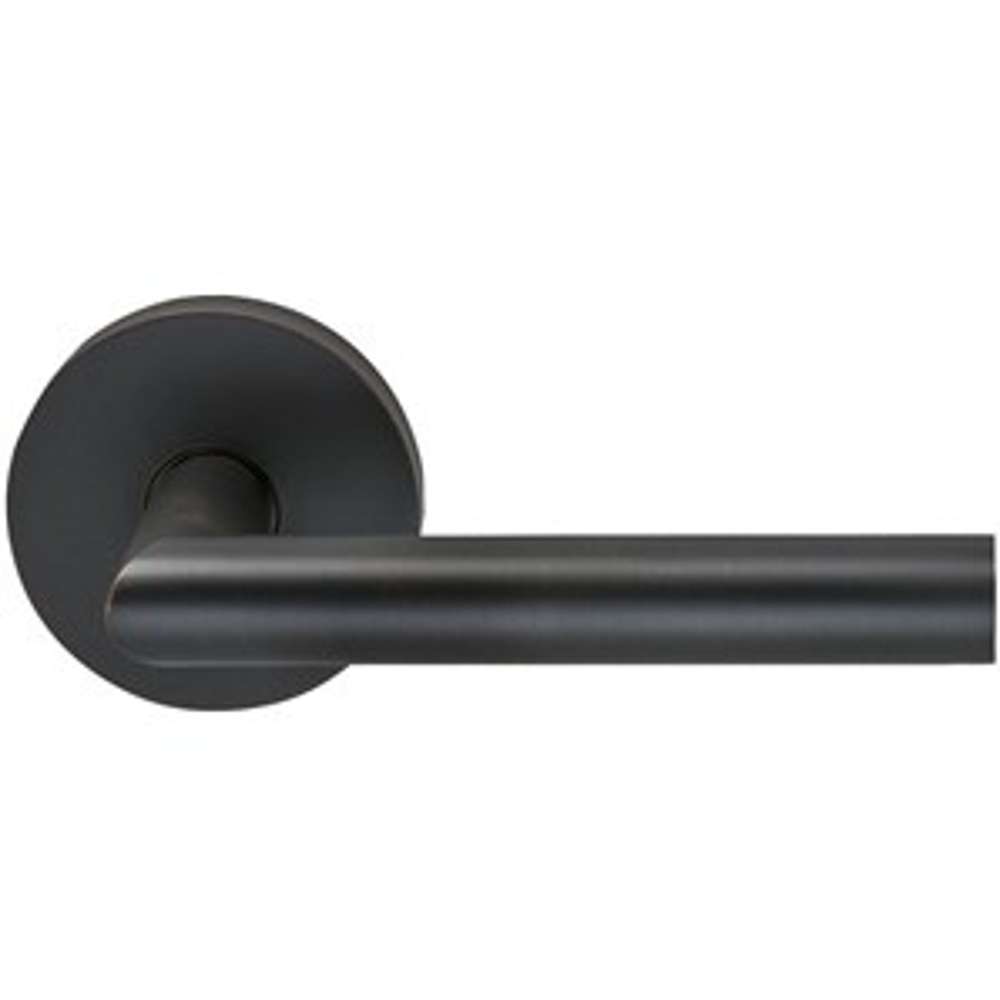

Omnia 912MD-PA-TB-LH Style Lever Modern Rose

SKU # OM/912MD-PA-TB-LH

Read Review(s) | Log in to Review

The "912MD" Lever is part of the Omnia Prodigy Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 014 "Full Lip" Strike, and are available for 1-3/8" & 1-3/4" Thick Doors"

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:
Constructed of high quality brass for lasting durability
Installs easily with all necessary mounting hardware included
ADA compliant
Features concealed screws for a streamlined look

Product Technologies:
Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.

Specifications:
Backset: 2-3/4", 2-3/8"
Cross Bore: 2-1/8"
Door Thickness: 1-1/2", 1-3/4", 1-3/8", 1-5/8"
Handing: Left, Reversible, Right
Handle Length: 5-1/4"
Handle Projection: 3"
Product Weight: 2-11/16 lbs
Latch Faceplate: Square Corner

US$141.75

Taylor Security ID #: 2453296011

Description:

Description:

Omnia 912MD-PA-TB-LH Style Lever Modern Rose

Omnia 912MD, Contemporary Lever With Modern Round Rose
The Modern Lever With Round Rose is the perfect addition to contemporary homes with its sleek, clean lines that reflect the current style trends that are so popular in home decor right now. Made by Omnia Industries, the 912MD Leverset is available in single dummy, double dummy, passage, and privacy functions. Both the single dummy and the double dummy functions feature concealed surface mounting for easy installation. The passage and privacy functions are available for either 2-3/8" or 2-3/4" backsets and the two functions are packaged for both 1-3/8" or 1-3/4" thick doors. Available in 8 finishes.

Features of the Modern Leverset:

  • Concealed screw mounting.
  • Full lip strike comes standard.
  • 28° rotation to retract latch.
  • Covers 2-1/8" bore hole.

Specifications of the Omnia 912MD Modern Lever With Round Rose:

  • Lever Length: 5-1/4"
  • Lever Projection: 3"
  • Rose Diameter: 2-5/8"
  • Backset: Optional 2-3/8" or 2-3/4"
  • Door Thickness: 1-3/8" or 1-3/4"
  • When Selecting a Function:

Single Dummy: A stationary lever for use as a pull or to match trim on one side of door. Includes 1 lever, 1 rose, and mounting screws.
Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door. Complete set - 2 levers, 2 roses, 2 sub-roses, tubular latch, strike plate, spindle, and mounting screws.
Privacy (bedroom or bathroom): For doors that could need locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy and retract latchbolt. Complete set - 2 levers, 2 roses, 2 sub-roses, privacy button, tubular latch, strike plate, spindle, and mounting screws.

Features:

Features:

The "912MD" Lever is part of the Omnia Prodigy Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 014 "Full Lip" Strike, and are available for 1-3/8" & 1-3/4" Thick Doors"

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:
Constructed of high quality brass for lasting durability
Installs easily with all necessary mounting hardware included
ADA compliant
Features concealed screws for a streamlined look

Product Technologies:
Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.

Specifications:
Backset: 2-3/4", 2-3/8"
Cross Bore: 2-1/8"
Door Thickness: 1-1/2", 1-3/4", 1-3/8", 1-5/8"
Handing: Left, Reversible, Right
Handle Length: 5-1/4"
Handle Projection: 3"
Product Weight: 2-11/16 lbs
Latch Faceplate: Square Corner

Specifications:

Specifications:
