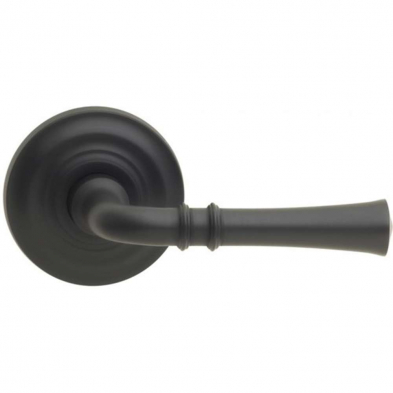

Omnia 785TD-PR-US10B-LH Style Lever Traditional Rose
Omnia 785TD, Traditional Fluted Lever with Round Rose
Both beautiful and timeless, the Traditional Lever With Matching Stepped Rose exudes the kind of elegance that will never go out of style. It is perfect for people with sophisticated tastes. It is available in single dummy, double dummy, passage, and privacy functions. Both the single dummy and the double dummy functions feature concealed surface mounting for easy installation. The passage and privacy functions are available for either 2-3/8" or 2-3/4" backsets and the two functions are packaged for both 1-3/8" or 1-3/4" thick doors. Available in 7 finishes.
Features of the Classic Fluted Leverset:
Concealed screw mounting.
Full lip strike comes standard.
28° rotation to retract latch.
Covers 2-1/8" bore hole.
Specifications of the Omnia 785TD Traditional Lever With Round Rose:
Lever Length: 4-1/2"
Lever Projection: 2-1/2"
Rose Diameter: 2-5/8"
Backset: Optional 2-3/8" or 2-3/4"
Door Thickness: 1-3/8" or 1-3/4"
When Selecting Function:
Single Dummy: A stationary lever for use as a pull or to match trim on one side of door. Includes 1 lever, 1 rose, and mounting screws.
Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door. Complete set - 2 levers, 2 roses, 2 sub-roses, tubular latch, strike plate, spindle, and mounting screws.
Privacy (bedroom or bathroom): For doors that could need locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy and retract latchbolt. Complete set - 2 levers, 2 roses, 2 sub-roses, privacy button, tubular latch, strike plate, spindle, and mounting screws.
Note: Single Dummy is Handed. All other functions are non-handed.
