Omnia 565MD-PR-US4 Style Knob Modern Rose

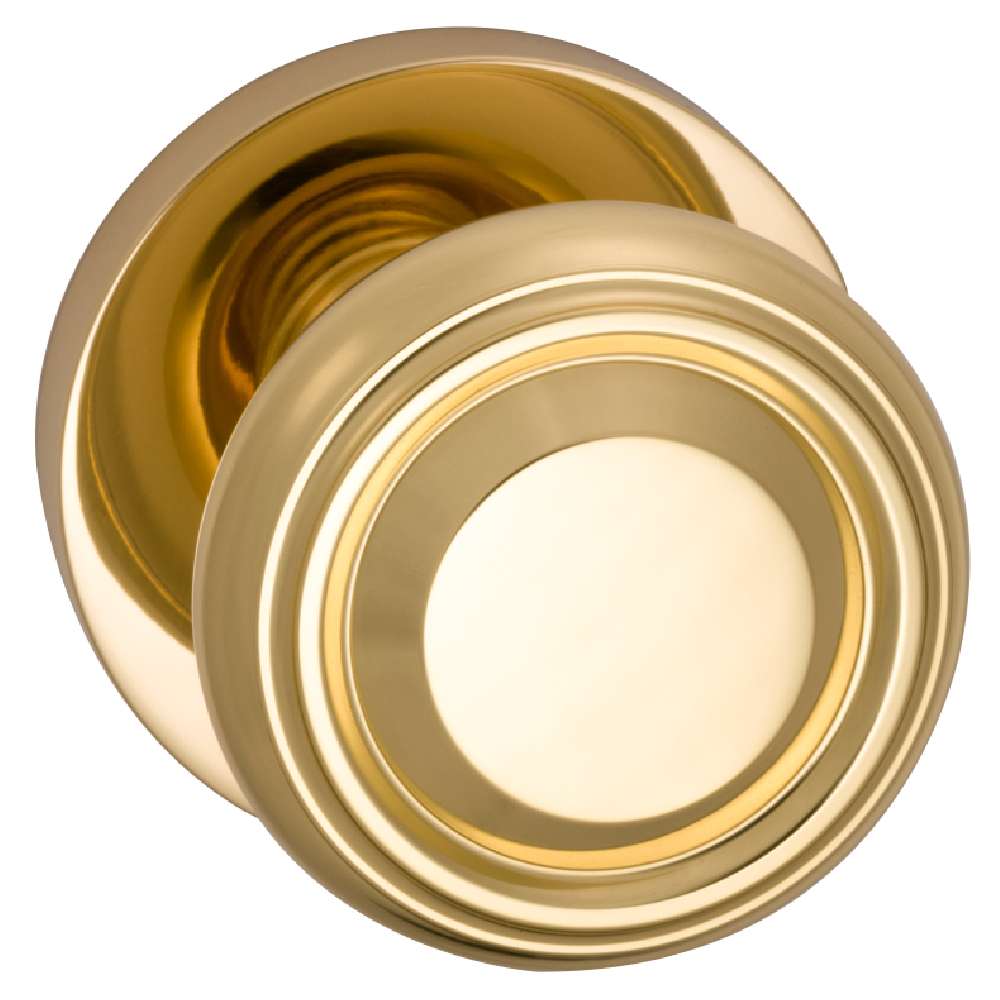

Omnia 565MD, Beveled Half Round Knob With Round Rose
With such a subtle design, the Half Round Knobset is a great way to update your door hardware without having to commit to a type a decor because it will look great amongst any home style from contemporary to traditional. It is available in single dummy, double dummy, passage and privacy functions. Both the single dummy and the double dummy functions feature concealed surface mounting for easy installation. The passage and privacy functions are available for either 2-3/8" or 2-3/4" backsets and the two functions are packaged for both 1-3/8" or 1-3/4" thick doors.
Features of the Omnia 565MD Beveled Half Round Knob With Round Rose:
Concealed screw mounting.
Full lip strike comes standard.
55° rotation to retract latch.
Covers 2-1/8" bore hole.
Specifications of the Omnia 565MD, Beveled Half Round Knob With Round Rose:
Knob Diameter: 2-3/8"
Knob Projection: 2-1/2"
Rose Diameter: 2-5/8"
Backset: Optional 2-3/8" or 2-3/4"
Door Thickness: 1-3/8" or 1-3/4"
Available Functions
Single Dummy: A stationary knob for use as a pull or to match trim on one side of door. Includes 1 knob, 1 rose, and mounting screws.
Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door. Complete set - 2 knobs, 2 roses, 2 sub-roses, tubular latch, strike plate, spindle, and mounting screws.
Privacy (bedroom or bathroom): For doors that could need locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside knob will release privacy and retract latchbolt. Complete set - 2 knobs, 2 roses, 2 sub-roses, privacy button, tubular latch, strike plate, spindle, and mounting screws.
