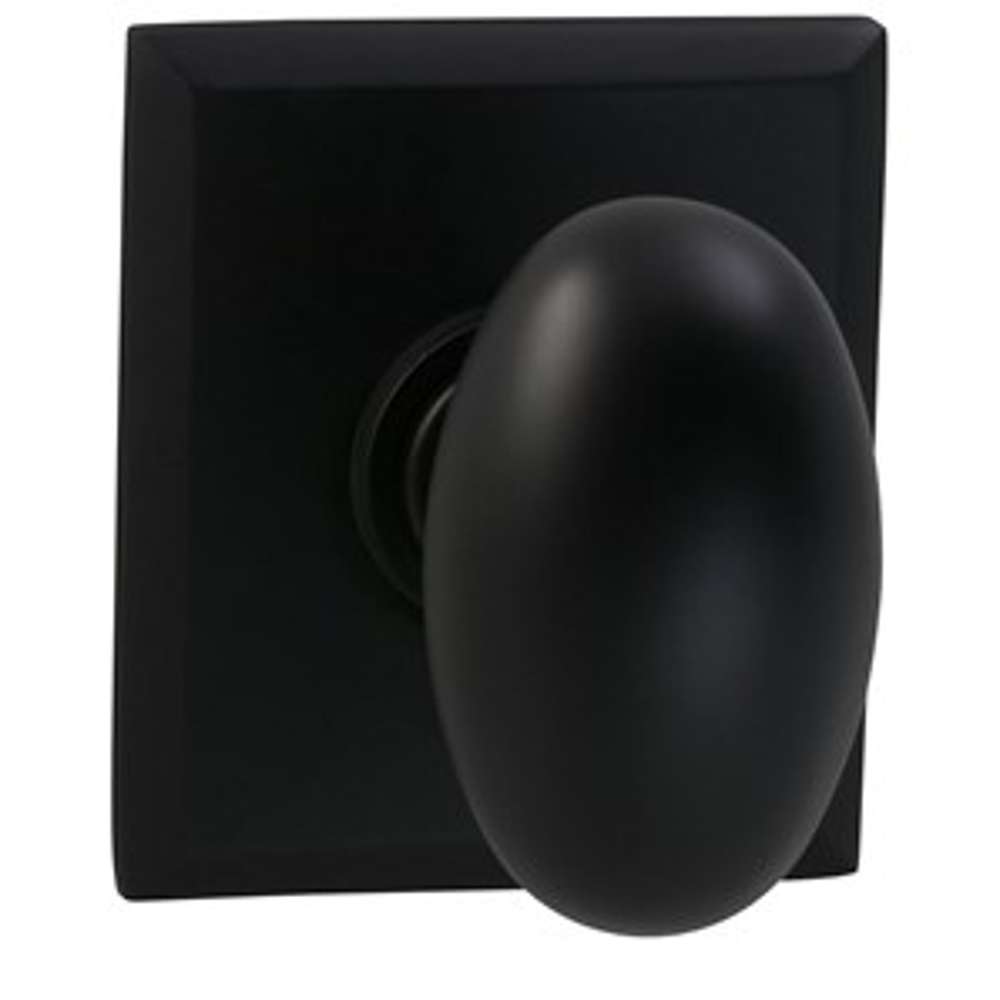

Omnia 434RT, Modern Egg Knob with Rectangular Rose
This Modern Egg Knobset has a traditional shape with a modern feel for contemporary homes that are in need of an update that will look great for years to come. The Egg Knob With Rectangular Rose is available in single dummy, double dummy, passage and privacy functions. Both the single dummy and the double dummy functions feature concealed surface mounting for easy installation. The passage and privacy functions are available for either 2-3/8" or 2-3/4" backsets and the two functions are packaged for both 1-3/8" or 1-3/4" thick doors. The 434RT Egg Shaped Knob is from Omnia's Prodigy Collection and is available in 7 finishes.
Features of the Omnia 434RT Modern Egg Knob with Rectangular Rose:
Concealed screw mounting.
Full lip strike comes standard.
55° rotation to retract latch.
Covers 2-1/8" bore hole.
Omnia Prodigy Installation Instructions (PDF)
Specifications of the Omnia 434RT Modern Egg Knob with Rectangular Rose:
Knob Length: 2-1/2"
Knob Projection: 3"
Rose Width: 2-5/8"
Rose Height: 3"
Backset: Optional 2-3/8" or 2-3/4"
Door Thickness: 1-3/8" or 1-3/4"
Available Functions
Single Dummy: A stationary knob for use as a pull or to match trim on one side of door. Includes 1 knob, 1 rose, and mounting screws.
Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door. Complete set - 2 knobs, 2 roses, 2 sub-roses, tubular latch, strike plate, spindle, and mounting screws.
Privacy (bedroom or bathroom): For doors that could need locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside knob will release privacy and retract latchbolt. Complete set - 2 knobs, 2 roses, 2 sub-roses, privacy button, tubular latch, strike plate, spindle, and mounting screws.
