Omnia 368S, Solid Brass Chic Door Leverset with Square Rose
This sleek modern door lever set from Omnia features a square rose combined with a rounded lever for a unique blend of hard and soft that will surely bring a contemporary feel to any space. The square rose has concealed screw mounting (installation screws are hidden) for a very modern look. The Chic Solid Brass Lever with Square Rose is available in a wide array of contemporary finishes. The Solid Brass Chic Door Leverset with Square Rose fits standard 2-1/8 inch bore hole door preparations. It will fit 1-3/8 inch, 1-3/4 inch, or 2 inch door thicknesses with 2-3/8 inch or 2-3/4 inch backsets.
All critical interior parts are made of brass. Tough, non-rusting materials are used throughout. All dimensions are standard to fit existing bores for easy replacement installations.
Features of the Modern Chic Leverset:
Solid brass construction.
Fits most standard door cut outs.
ADA Compliant

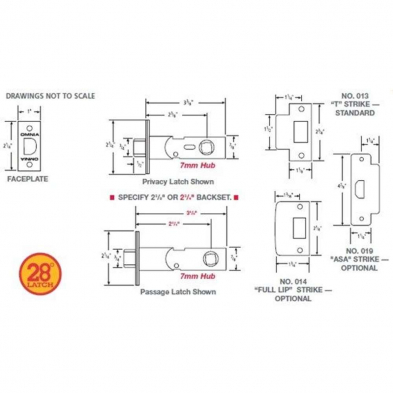

Specifications for the Omnia 368S Chic Lever with Square Rose:
Material: Solid Brass
Lever Length: 4-1/2"
Lever Projection: 2-1/2"
Rose Length: 2-9/16" square
Door Thickness: 1-3/8", 1-3/4", or 2"
Backset: either 2-3/8" or 2-3/4"
28 degrees rotation to retract latch.
Fits standard 2-1/8" inch door bore.
Concealed screw rose.
Available Functions:
Single Dummy: No door latch. Stationary door lever on one side of the door. Package Includes: 1 lever, 1 rose, and mounting screws.
Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, solid spindle, and mounting screws.
Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, slit spindle, and mounting screws
