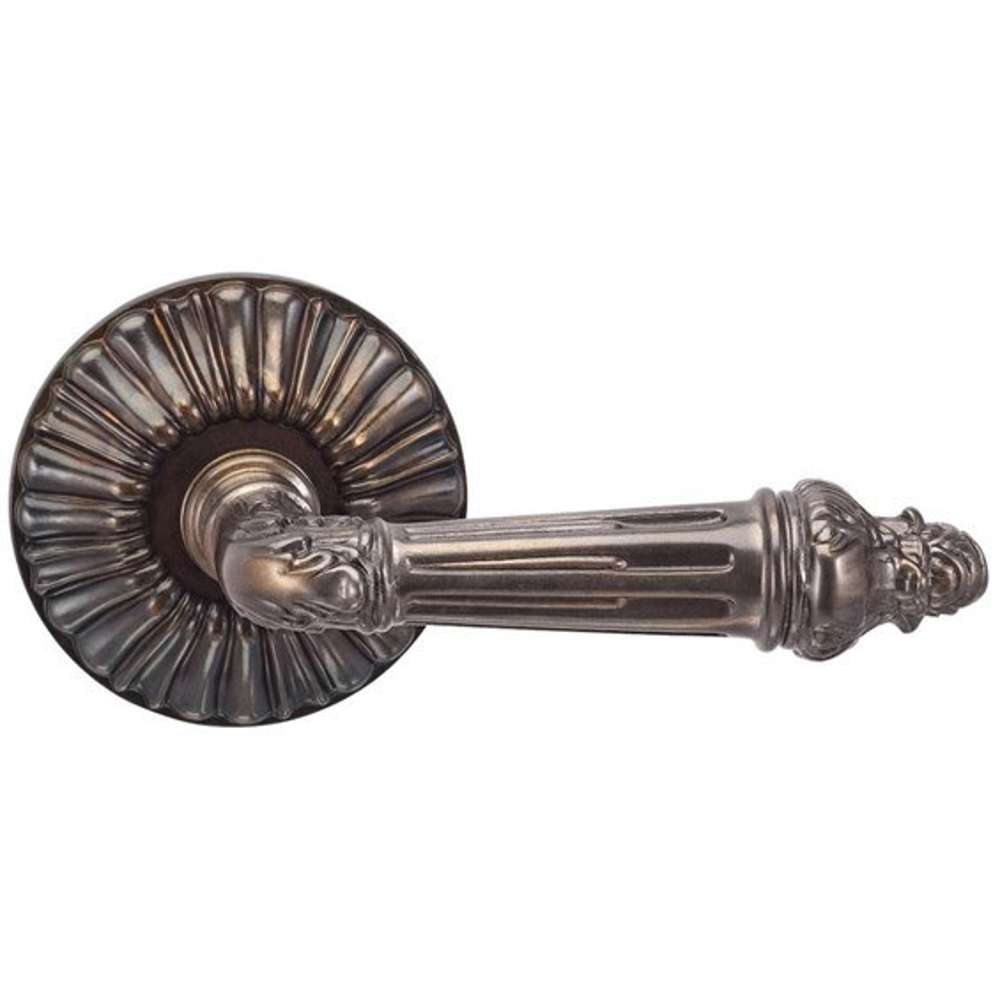

Omnia 340RE, Ornate Royal Door Lever
The Classico Collection Royal Leverset is the epitome of ornate beauty. With its attention to detail, it looks as if it is fit for a palace. Bring home the majesty of the 340RE Omnia Lever. It is available in 4 finishes: Florentine Brass, Siena Brass, Etruscan Bronze, and Venetian Nickel. The Ornate Royal Door Lever is available in dummy, passage, and privacy functions for 1-3/8", 1-3/4", or 2" thick doors with either 2-3/8" or 2-3/4" backsets.
Features of the Royal Lever:
Solid brass construction.
Fits most standard door cut outs.
Full lip strike comes standard.
Specifications for the Omnia 340RE Classico Collection Royal Door Lever:
Material: Solid Brass
Lever Length: 4-3/4"
Lever Projection: 2-7/8"
Door Thickness: 1-3/8", 1-3/4", 2"
Backset: either 2-3/8" or 2-3/4"
55 degrees rotation to retract latch.
Fits standard 2-1/8" inch door bore.
Concealed screw rose.
Available Functions:
Single Dummy: No door latch. Stationary door lever on one side of the door. Package Includes: 1 lever, 1 rose, and mounting screws.
Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, solid spindle, and mounting screws.
Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, slit spindle, and mounting screws
The Single Dummy Lever Functions are Handed.
