Omnia 235-PA-US3 Style Lever

SKU # OM/235-PA-US3

The "235" Lever is part of the Omnia Solid Brass Series

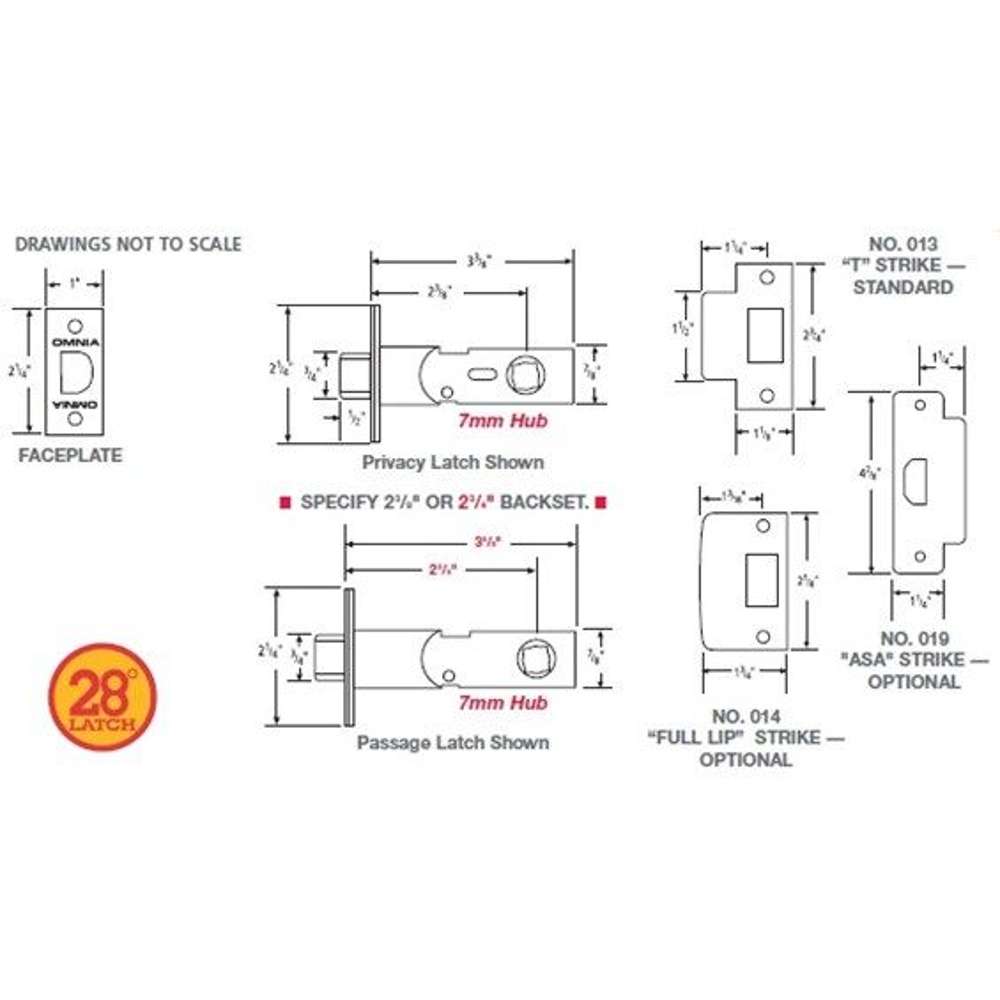

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 013 "T" Strike, and are available for 1-3/8" Thick Doors"

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:
Constructed of high quality stainless steel for lasting durability
Installs easily with all necessary mounting hardware included
ADA compliant

Specifications:
Backset: 2-3/4", 2-3/8"
Cross Bore: 2-1/8"
Door Thickness: 1-3/8"
Handing: Left, Right
Handle Width: 4-3/8"
Handle Projection: 2-3/16"
Product Weight: 5 lbs
Latch Faceplate: Square Corner

US$206.25

Taylor Security ID #: 2450278

Description:

Description:

Omnia 235-PA-US3 Style Lever

Omnia 235, Beaded Solid Brass Leverset
Simple hobnail styling around the edge of this Beaded Solid Brass Leverset grants this Omnia made traditional latchset a glamor without being gaudy. The textured inlay of the handle adds just enough opulent detail to add a subtle point of interest to more ritzy decors. The Fancy Beaded Lever is Available in polished brass and shaded bronze finishes.

Features of the Fancy Beaded Lever with Round Rose:
Solid brass construction.
Fits most standard door cut outs.
ADA Compliant

Specifications for the Omnia 235 Beaded Door Lever:
Material: Solid Brass
Lever Length: 4-3/8"
Lever Projection: 2-3/16"
Rose Diameter: 2-5/8"
Door Thickness: 1-3/8", 1-3/4", or 2"
Backset: either 2-3/8" or 2-3/4"
28 degrees rotation to retract latch.
Fits standard 2-1/8" inch door bore.
Concealed screw rose.

Available Functions:
Single Dummy: No door latch. Stationary door lever on one side of the door. Package Includes: 1 lever, 1 rose, and mounting screws.
Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, solid spindle, and mounting screws.
Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, slit spindle, and mounting screws

Features:

Features:

The "235" Lever is part of the Omnia Solid Brass Series

"All Omnia Levers comes standard with 2-3/8" Backset (Latch), No. 013 "T" Strike, and are available for 1-3/8" Thick Doors"

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:
Constructed of high quality stainless steel for lasting durability
Installs easily with all necessary mounting hardware included
ADA compliant

Specifications:
Backset: 2-3/4", 2-3/8"
Cross Bore: 2-1/8"
Door Thickness: 1-3/8"
Handing: Left, Right
Handle Width: 4-3/8"
Handle Projection: 2-3/16"
Product Weight: 5 lbs
Latch Faceplate: Square Corner

Specifications:
