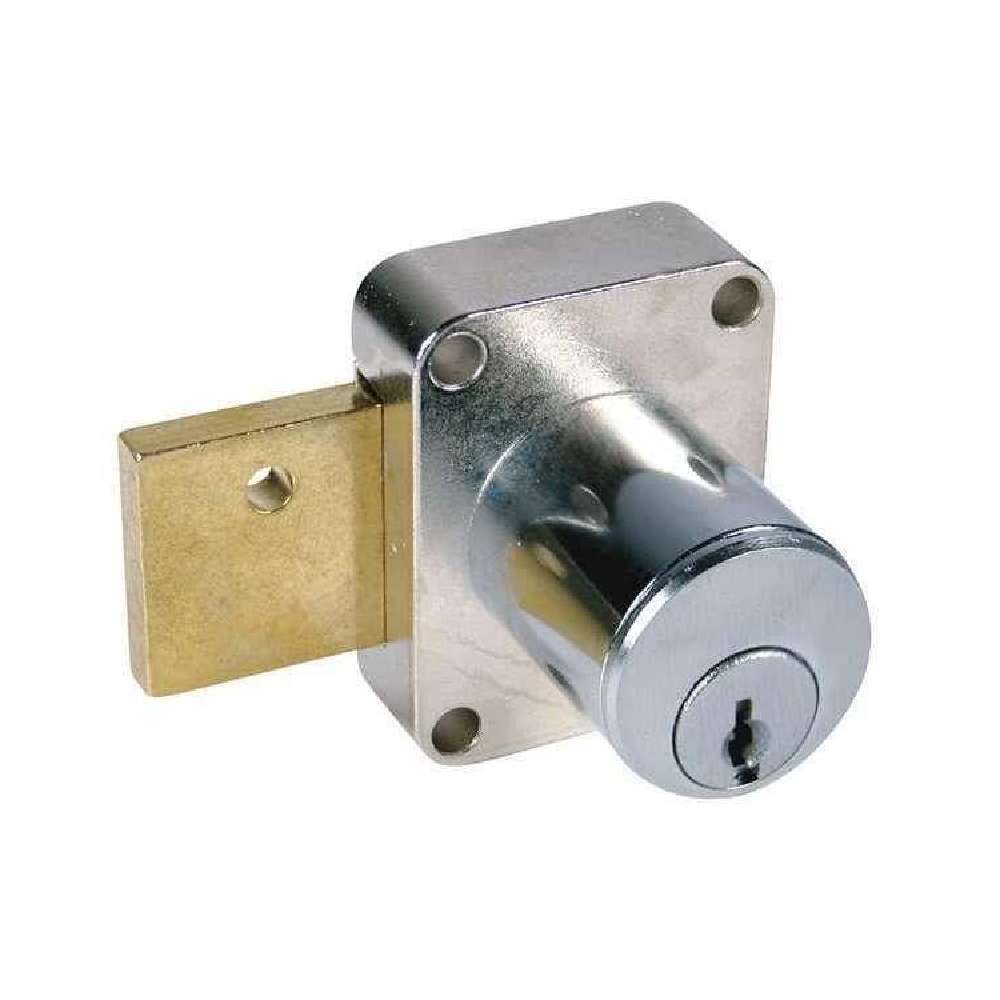

National Pin Tumbler Door Lock, KA-101

National Pin Tumbler Door Lock, KA-101

Technical Specifications

• Bolt Travel: 3/4"
• Bolt Type: dead
• Cylinder Length Size: 7/8"
• Installation: door
• Key Rotation: clockwise
• Keying: KA
• Max Material Thickness: 7/8
• Type of Mounting: Surface

Additional Details

CompX National pin tumbler Deadbolt right and keft hand cabinet door lock, BHMA Certified Grade 2 (E07122 – lock type designation), 7/8" cylinder length key removable in both locked and unlocked positions, with Advantage Plus feature.Keyed alike to 101, 103, 107, and 915. 850 keyed different codes and 650 masterkey keyed different codes. Available in dull chrome, satin brass and antique brass finish. BHMA Grade 1 version special order (E07121 – lock type designation). Not all key codes available in all finishes.

National Pin Tumbler Door Lock, KA-101

• Application For R.H. or L.H. doors. Surface mounted. Requires 57/64"" diameter hole for cylinder.
• Operation Key removable in both locked and unlocked positions
• Keying Will key together with all other pin tumbler locks using D4291 key blank. See table for available keying. Master keying to GM1.
• Packaging Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately
