National Disc Tumbler 7/16" Cam Lock

National Disc Tumbler 7/16" Cam Lock

• Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: 90° cam turn on all locks. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut and two cams. If flat washer (for metal) is needed, order C2015-2C separately. See page 22 of CompX National STOCK LOCKS catalog.

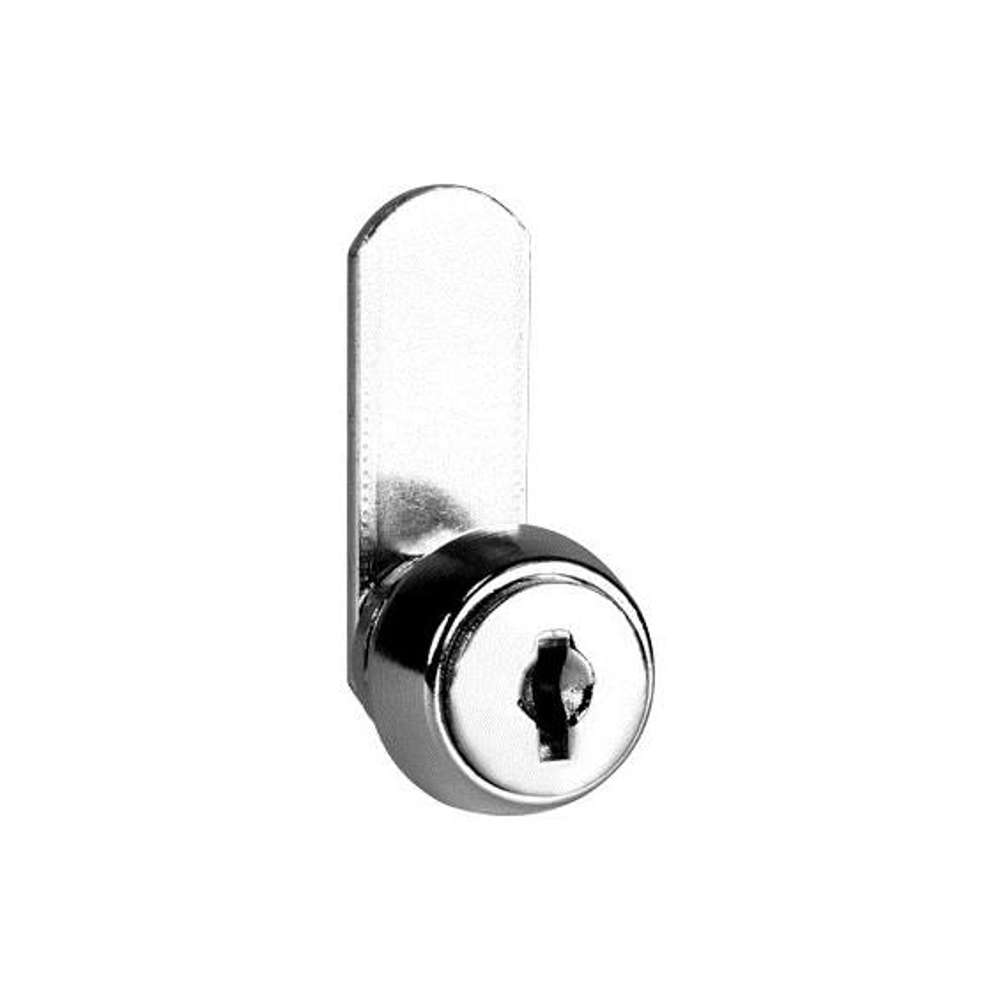

National C8051-14A-KD Disc Tumbler 7/16" Cam Lock

• Cylinder Length Size: 7/16"
• Key Rotation: clockwise
• Keying: KD
• Max Material Thickness: 7/64
• Type of Mounting: flush, lipped overlay, overlay

Additional Details

• CompX National disc tumbler cam lock with 7/16" cylinder length, 90 degree CW rotation, 3/4" mounting hole, keyed alike to C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A. 200 keyed different and masterkey keyed different codes. Bright nickel and bright brass finish.Not all key codes available in all finishes.
