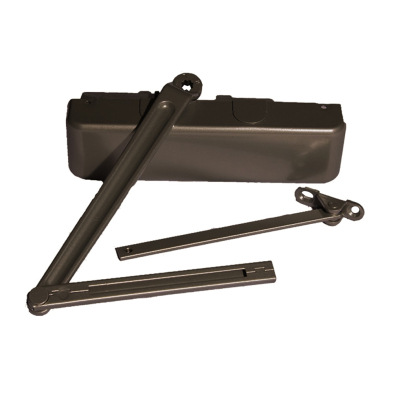

LCN 4031 Rw/PA DKBRZ Closer

LCN 4031 Rw/PA DKBRZ Closer

The LCN 4030 Series is a cast iron universal closer that has a forged steel main arm.
The LCN 4030 Series is designed specifically for doors in moderate traffic conditions. This versatile closer compliments the rest of the heavy duty 4000 Series and offers the choice of three mountings and multiple arm options.

• Standard new 4030 series closer is shipped with forged regular arm, metal cover and wood/self-tapping machine screw pack. See the Options tab for more information.
• Non-sized (1-4) 4031 cylinder for exterior doors to 36” (914 mm) and interior doors to 48” (1219 mm)
• Closer mounts hinge side, top jamb, and parallel arm, on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish
• Optional plated finish on metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions is available with powder coat only
• The 4030 Series is UL and cUL listed for Self-closing doors without hold-open
• Tested and certified under ANSI Standard A156.4, grade one

LCN 4031 Rw/PA DKBRZ Closer

The heavy-duty 4030 Series is a universal closer designed for moderate traffic conditions, meeting ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements. It complements the heavy-duty 4000 Series, and offers a choice of three mountings and multiple arm options. The 4030 Series is UL and cUL listed for self-closing doors without hold-open and boasts a 30-year limited warranty.

The 4030 Series features a metal cover. It mounts hinge side, top jamb and parallel arm, on left- or right-swinging doors. Materials include a high-strength cast iron cylinder and forged steel main arm.

• Cast iron body
• Tri-packed: regular, top jamb, or parallel arm mount
• Adjustable spring size 1-4
• Metal cover standard
• UL 10C Fire-Rated
• Meets BAA – Buy American Act
