1006 Series Electric Strikes

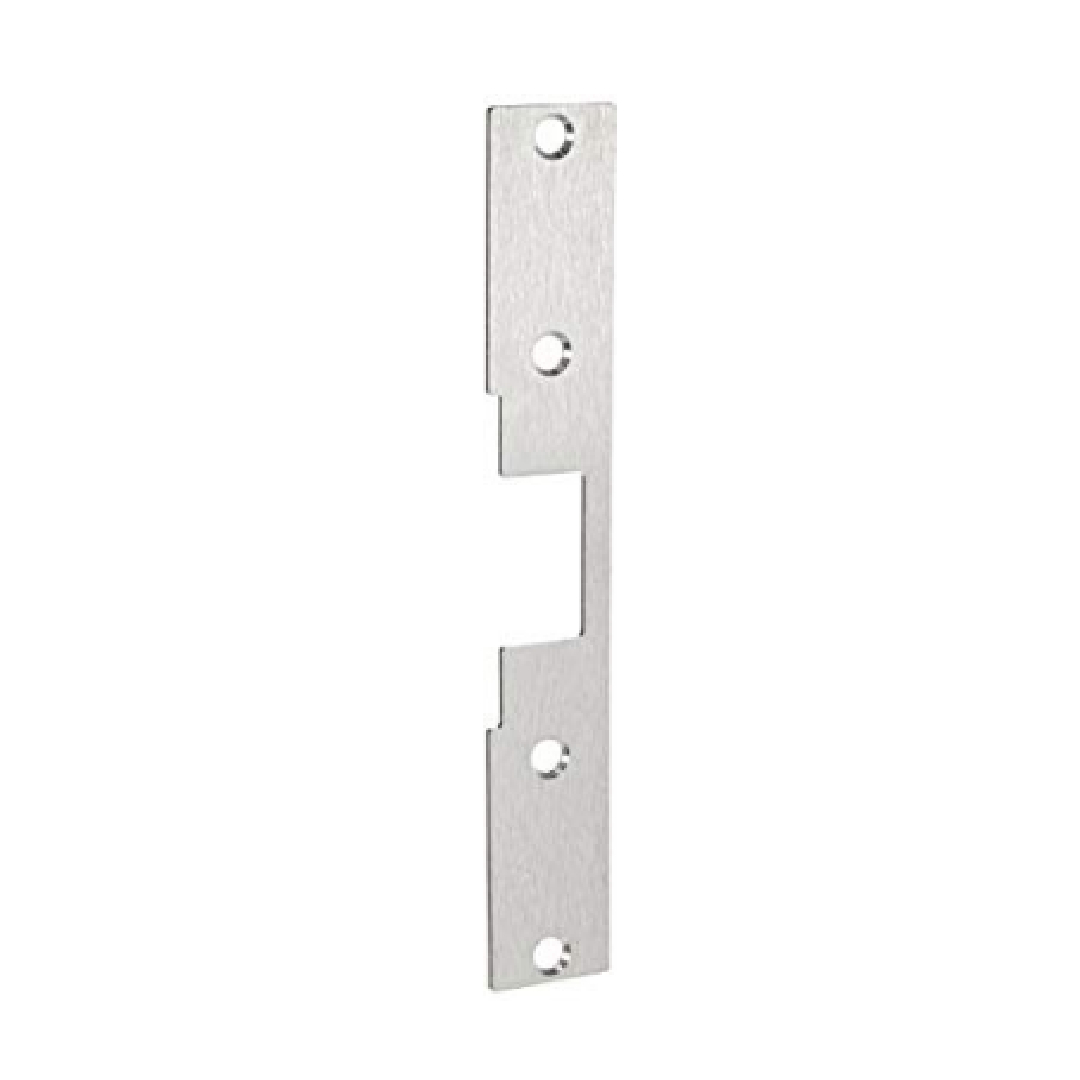

With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate.
The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
Frame application
- Metal
- Wood
- Electrical
- .45 Amps at 12VDC* continuous duty
- .25 Amps at 24VDC* continuous duty
- *Note: DC must be well filtered with ripple less than 1 volt RMS.
