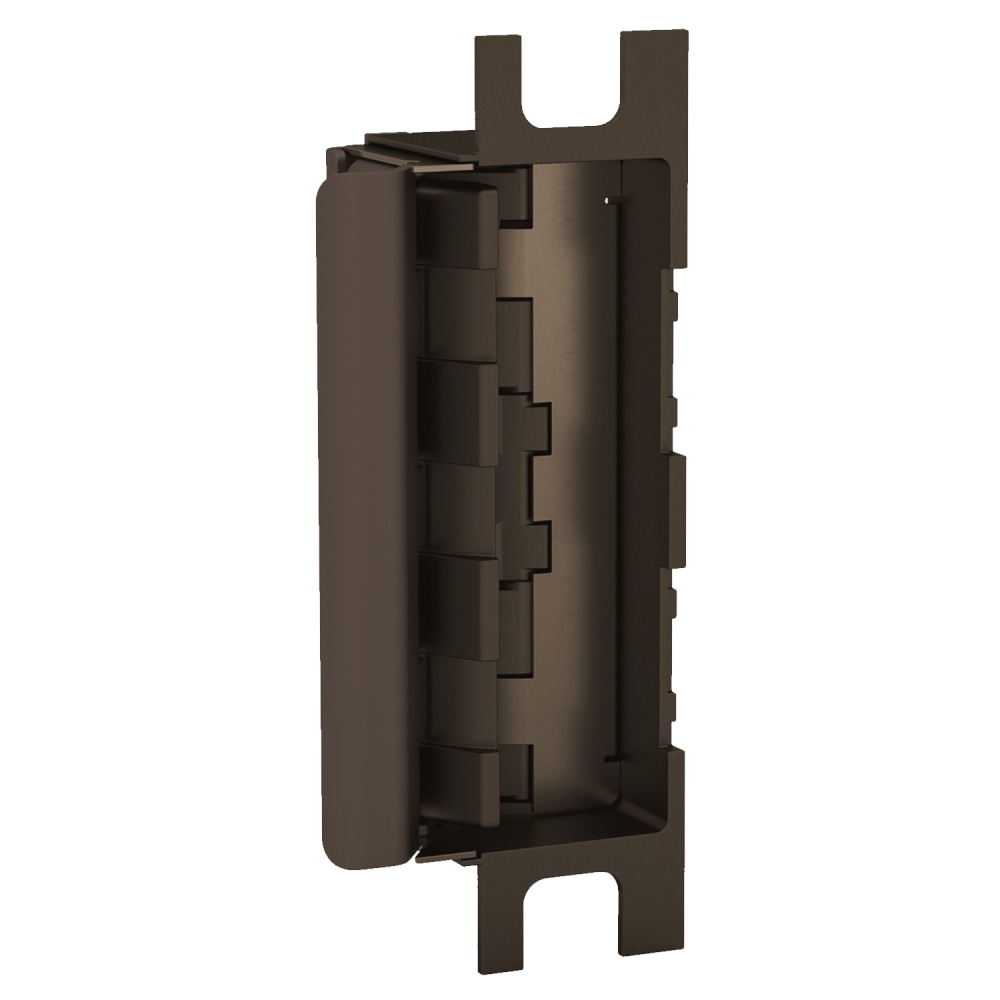

HES 8500-613 Electric Strike, Body Only is an Electric Strike Body Only in Bronze toned finish
The HES 8500-613 Electric Strike, Body Only is an Electric Strike Body Only in Bronze toned finish. The 8500 series is a fire rated, compact, high performance electric strike featuring a unique concealed design for use with mortise locksets without a deadbolt. Designed for fast, convenient installation, the 8500 installs with little or no modification to the frame. Simply remove the existing strike plate, remove the dust box and install. Its strength is derived from a unique keeper pin locking design, enabling the 8500 to exceed Grade-1 ratings. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8500 accommodates mortise latchbolts up to 3/4" throw.
Features include:
- Electric Strike Body Only
- 8500 Series
- Bronze toned finish
- No cutting of the face of the frame
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 500,000 cycles
- Field selectable fail safe / fail secure
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Metal or Wood Frame
- Internally mounted solenoid
- Accommodates 3/4” mortise latchbolts
- Strike body depth 1-5/16”
- Plug-in connector
- Full pocket shims for horizontal adjustment
