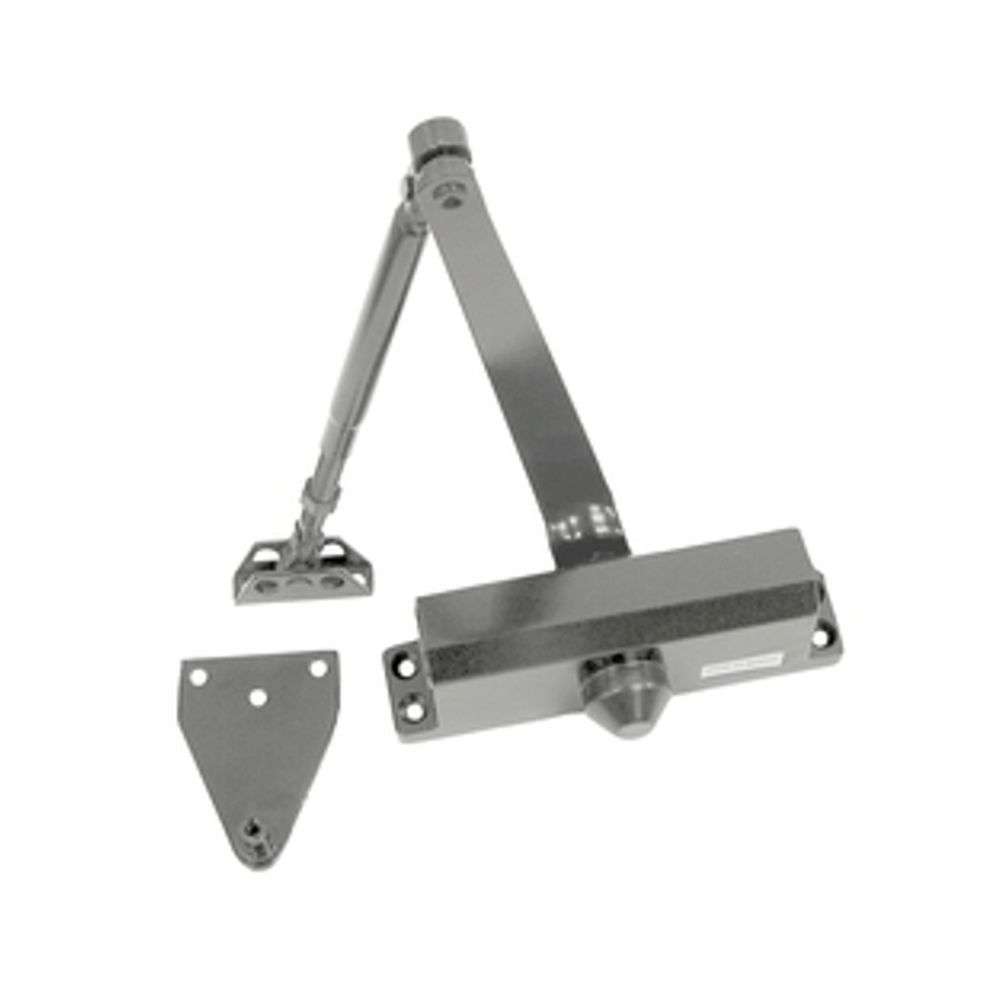

Falcon/Doromatic Door Closer, Aluminum, Light Duty
Sizing: Fixed Sizing: 1, 3, and 4
Structure: Single piece cast aluminum body
Valves: Staked valves
Arm Style: Choose from options above. See Arm Type tab below for detailed description of all arm types.
Pinion: Heated-treated pinion
Piston: steel piston
Cover: Full cover available for additional fee. Select above.
Handing: Non-handed for left or right swinging doors
Adjustable Options: Separate adjustable general speed, latch speed and backcheck
Screws: Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming and tapping screws.
Finishes: Choose from options above.
Mounting: Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.
Installation: Fast and easy installation
Installation Accessories: Choose from options above. See Installation Accessories Tab for more information.
Compliance Details: UL approved and compliant with the UL10C and UBC7-2 (1997) fire test. Additionally, closers are designed to meet the American Disabilities Act (ADA) and ANSI A117.1. Closers are Listed ANSI/BHMA A156.4, Grade 3.
