Chicago Lock On-Off Key Switch

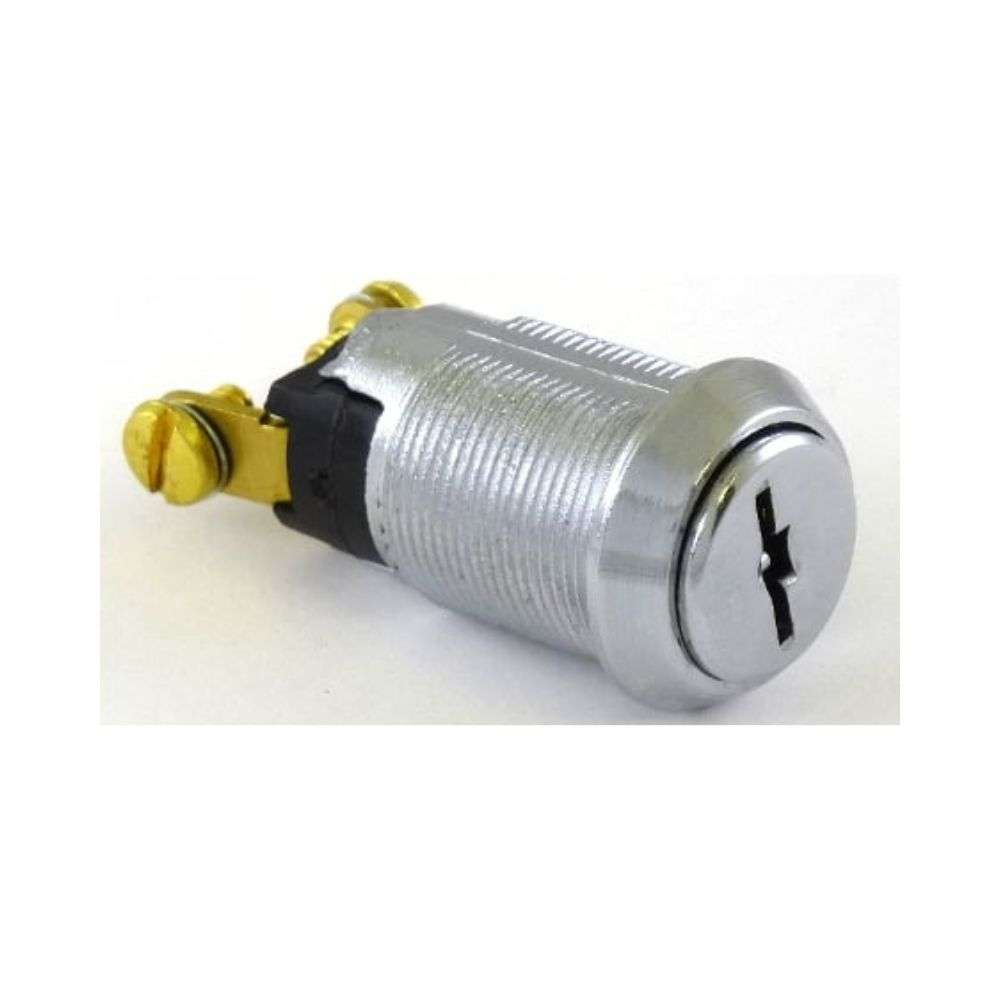

Chicago Lock 2174-2 On-Off Key Switch

CompX Chicago double bit, switch lock, single pole, single throw, key pull at off only. Momentary contact switch operated by manually rotating inserted key 90° clockwise from open to closed position.7 amps @ 28 VAC/VDC, electrical Life: 6,000 cycles @ Max. Load. Contact Resistance: 50 milliohms initial maximum, bright chrome finish, two keys per lock. Master keying not available. Keyed alike to 2001, 2007 and 2126, 200 keyed different codes

Chicago Lock 2174-2 On-Off Key Switch

Double bitted switch lock is designed to integrate with a switch to control the operation of the switch. Switch locks limit use of the switch to someone with a key to the lock

Operation Momentary contact switch locks feature spring return from closed to open position after 90° clockwise key rotation to closed position. Key pull at off only.

Keying Will key together with all other CompX Chicago disc tumbler locks using DK-4 key blank.

Packaging Switch lock and two keys, mounting hardware

Technical Specifications

• Cylinder Length Size: 1-9/16"
• Installation: panel
• Key Rotation: clockwise
