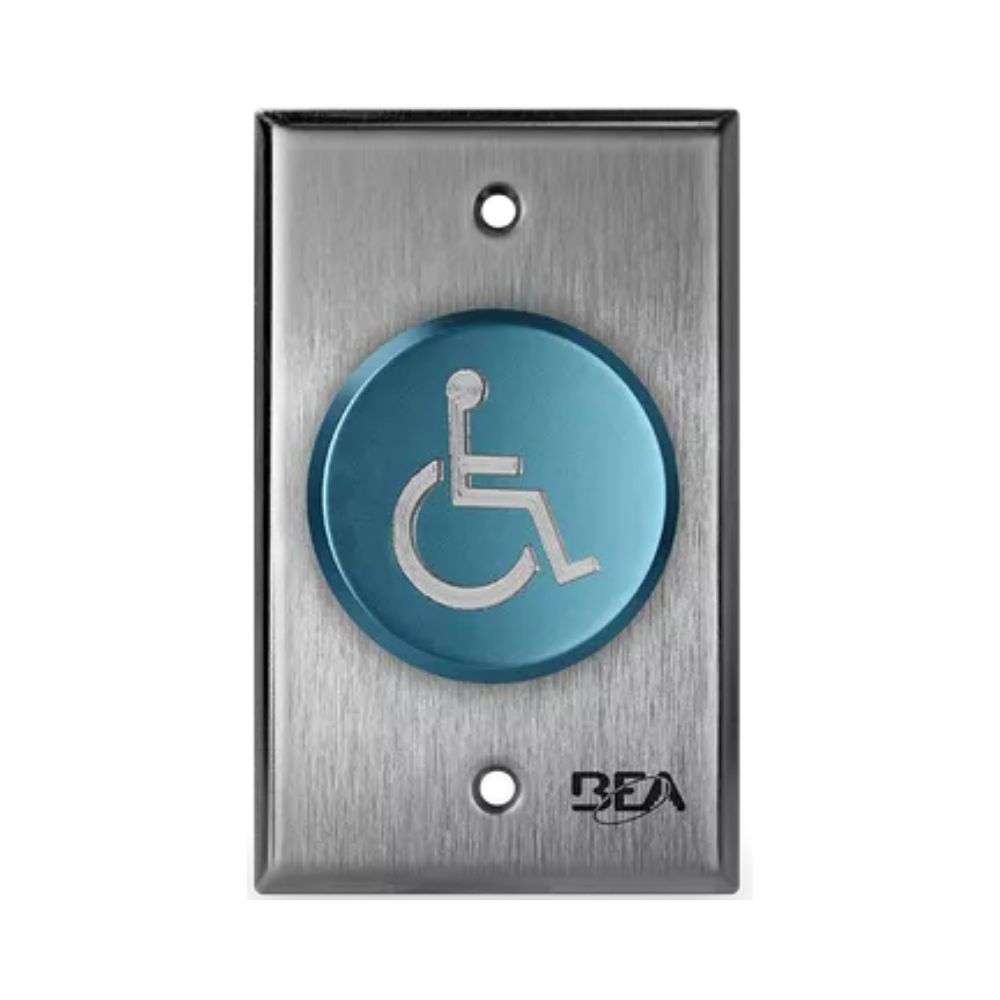

BEA Pneumatic Button 2 Plate-2 Blue Button-Handicap Logo

BEA Pneumatic Button 2 Plate-2 Blue Button-Handicap Logo

BEA’s PNEUMATIC PUSH BUTTONS are ruggedized, including stainless steel faceplates and colored, anodized aluminum buttons, appropriate for most indoor applications.

The device is uniquely designed to minimize the number of moving parts, in turn reducing the wear and tear of the button and extending the life of the device.

Upon activation, the user-defined time delay initiates without additional mechanical action or the need of external power.

TECHNOLOGY:
Pneumatic

FACEPLATE DIMENSIONS:
SINGLE - 2 ¾” (W) × 4 ½” (H)
JAMB - 1 ¾” (W) × 4 ½” (H)

VISUAL STYLES:
Red Button with “Push to Exit” text
Blue Button with Handicap Logo
Green Button with “Push to Exit” text

MATERIALS:
Stainless steel faceplate with colored, anodized aluminum button

SWITCH RATING:
5 A @ 125 VAC

TIME RANGE:
2 – 60 s ±15%, adjustable

RELATIVE TIMING ACCURACY:
±5% @ 72 °F

OPERATING TEMPERATURE:
Rated for indoor use only -15 – 120 °F

TIMER LIFE:
1 million operations

BEA Pneumatic Button 2 Plate-2 Blue Button-Handicap Logo

• Adjustable hold time of 2 to 60 seconds
• Listed UL 508/ CSA C22.2 No 14-10 with MET LABS
• Exceeds NFPA safety codes with respect to security button delay time
• Available in single and jamb size plates
• Buttons available in 1 5/8 inch (standard) or 2 inch (large) sizes
• Available in a variety of combinations of color, text and logo upon request
• Tested to perform greater than 1 million operations
