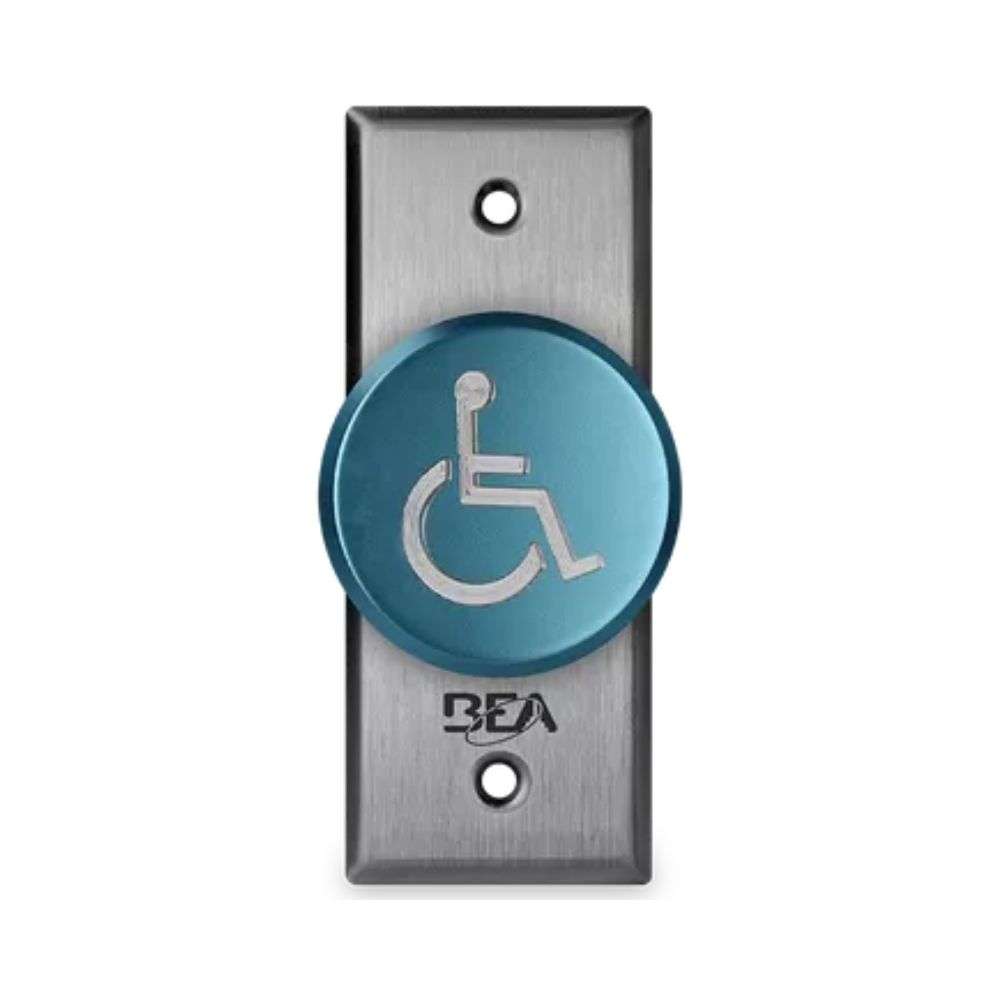

BEA Pneumatic Button 1-5/8 Plate-2 Blue Button-Handicap Lo
BEA’s PNEUMATIC PUSH BUTTONS are ruggedized, including stainless steel faceplates and colored, anodized aluminum buttons, appropriate for most indoor applications.
The device is uniquely designed to minimize the number of moving parts, in turn reducing the wear and tear of the button and extending the life of the device.
Upon activation, the user-defined time delay initiates without additional mechanical action or the need of external power.
TECHNOLOGY:
Pneumatic
FACEPLATE DIMENSIONS:
- SINGLE - 2 ¾” (W) × 4 ½” (H)
- JAMB - 1 ¾” (W) × 4 ½” (H)
VISUAL STYLES:
- Red Button with “Push to Exit” text
- Blue Button with Handicap Logo
- Green Button with “Push to Exit” text
MATERIALS:
Stainless steel faceplate with colored, anodized aluminum button
SWITCH RATING:
5 A @ 125 VAC
TIME RANGE:
2 – 60 s ±15%, adjustable
RELATIVE TIMING ACCURACY:
±5% @ 72 °F
OPERATING TEMPERATURE:
Rated for indoor use only -15 – 120 °F
TIMER LIFE:
1 million operations
