BEA Pneumatic Button 1-5/8 Plate-1-5/8 Green Button-Push t

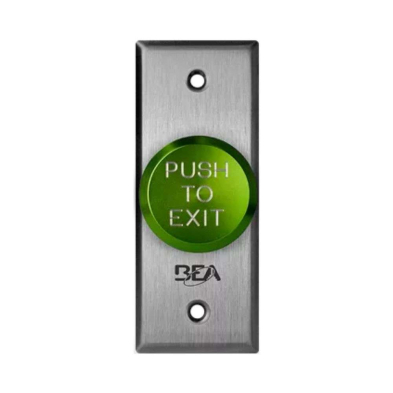

BEA 10ACPBDA11 Pneumatic Push Button, Jamb plate, oversized 2" Green button, "Push to Exit" text, 2.5 AMP 12 to 24 V AC/DC
BEA’s PNEUMATIC PUSH BUTTONS are ruggedized, including stainless steel faceplates and colored, anodized aluminum buttons, appropriate for most indoor applications.
The device is uniquely designed to minimize the number of moving parts, in turn reducing the wear and tear of the button and extending the life of the device.
Upon activation, the user-defined time delay initiates without additional mechanical action or the need of external power.
Specifications
- Technology: Pneumatic
- Faceplate Dimension: Jamb - 1-3/4” (W) × 4 1/2” (H)
- Visual Style: Green Button with “Push to Exit” text
- Materials: Stainless steel faceplate with colored, anodized aluminum button
- Switch Rating: 5 A @ 125 VAC
- Time Range: 2 – 60 s ±15%, adjustable
- Repeat Accuracy: ±5% @ 72 °F
- Operating Temperature: Rated for indoor use only-15 – 120 °F
- Timer Life: 1 million operations
