Adams Rite Lever Handle-Aluminum
Function:
- Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam plug that mounts on the handles' escutcheon and fits solidly into the cylinder hole of the latch. Not intended for use as a door pull.
- 4560 handles feature an ADA compliant lever shaped to fit the hand.
- 4565 handles feature a thumbturn of minimum practical length.
- 4568 handles feature an ADA compliant lever shaped to fit the hand.
- 4569 handles feature a return end, often required by code.
Features:
Handle: Handle of cast aluminum.

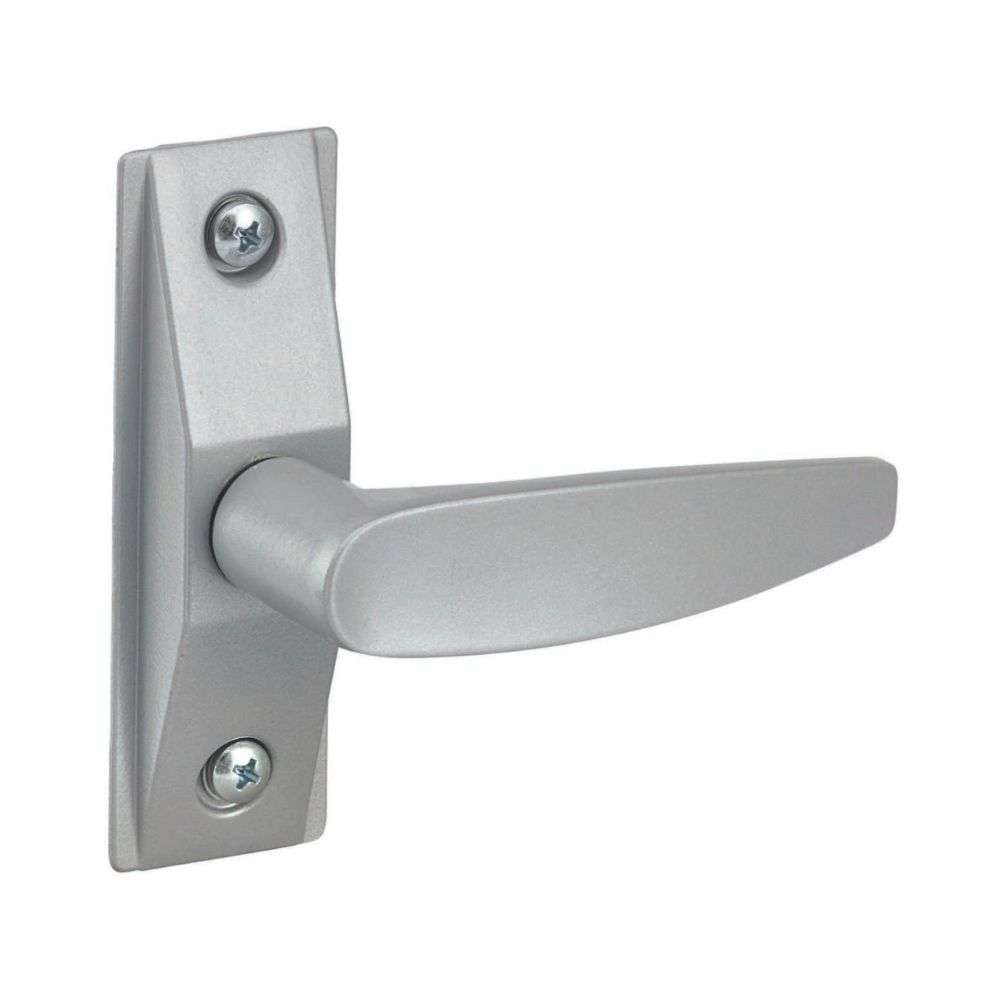

4560: ADA compliant lever is shaped to fit the hand, with a concave thumbrest portion that tends to keep knuckles and thumb safely away from the jamb, even on a short backset narrow stile.
4565: Thumbturn of minimum practical length is designed to offer a firm grip to the fingertips. Ideal for doors where the latch is operated infrequently.
European styling of 4568 and 4569 offers a generous hand grip with shank offset from the narrow stile jamb for hand safety. Rugged construction ensures dependable performance, with a high-wear spring to return the handle to position after use.
4568: ADA compliant lever is shaped to fit the hand.
4569: ADA compliant lever features a returnend, often required by code. Please verify local code requirements to ensure compliance.
Escutcheon: A 1/4" [6.4 mm] square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
- 4560, 4565 use the same sloping 1-3/8" x 4" [34.9 mm x 101.6 mm] escutcheon, designed to match the clean lines of a narrow stile door.
- 4568, 4569 use the same 1-3/8" x 4"[34.9mm x 101.6mm] escutcheon, designed to match the clean lines of a narrow stile door. Steel mounted base is secured by hidden screws and has two large helical compression springs (one becomes a “spare” once handing is given).
Cam Plug: Secured in latch body by cylinder set screw, the plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.
Standard Package: Individually packaged with mounting hardware and cam plug handed LH or RH as specified.
Shipping Weight: 2 lbs [0.91 kg].
- 4560, 4565 are also available bulk-packedin cartons, up to 100 per carton. Please contact factory for more information.
