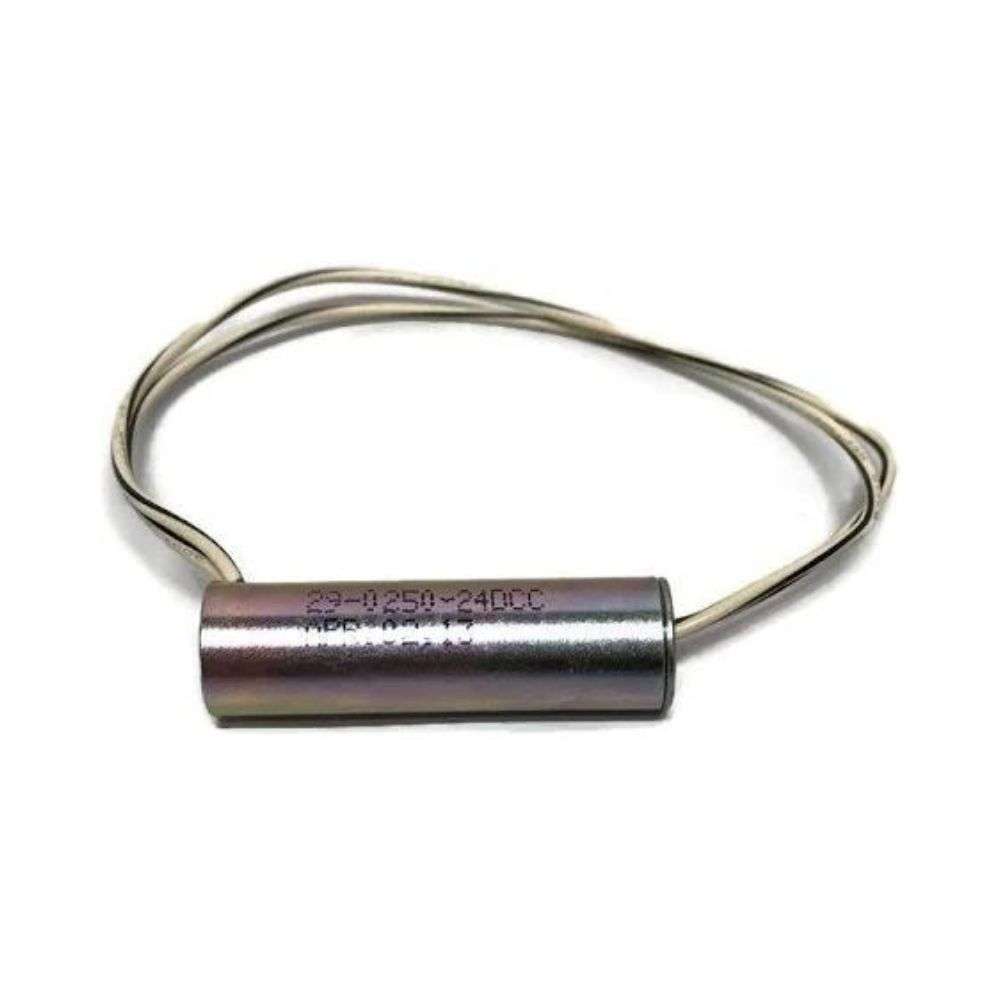

Adams Rite 24VDC Solenoid
Application: Solenoid only for Adams Rite electric strikes
Voltage Selection:
- 12ACI (12V AC INT.) Yellow & Black Wire
- 12DCC (12VDC CONT./24VAC INT.) Red & Black Wire
- 16ACI (16VAC INT.) Blue & Black Wire
- 16DCC (16VDC CONT.) Green & Black Wire
- 24VAC (24V AC INT) Red & Black Wire
- 24DCC (24VDC CONT.) White & Black Wire
Current Draw:
- 0.33A at 12 VDC, 1.42A at 12 VAC
- 0.22A at 16 VDC, 0.63A at 16 VAC
- 0.17A at 24 VDC, 0.74A at 24 VAC
Voltage: Available in 12, 16, or 24 Volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.
Fail Safe | Fail Secure: Field selectable at time of installation. However, AC intermittent solenoid must not be used continuously in either.
