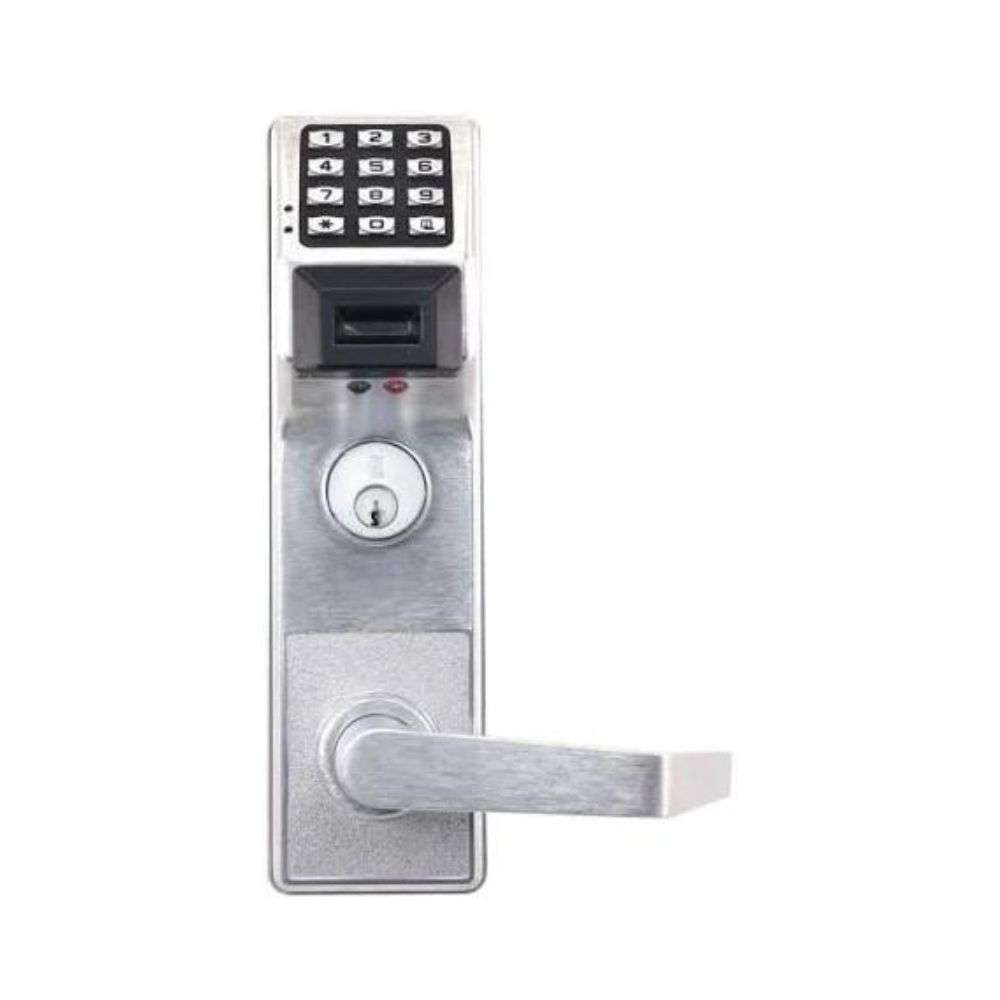

Alarm Lock Trilogy Exit Trim for Sargent 8800
Heavy Duty, BHMA Grade 1 security door lock with UL 3 hr. fire rated cylindrical latch. Field reversible full size ADA lever. Perfect for wood and metal doors (or as a gate lock – mounting box sold at checkout) – installation screws for both included. Fingertip programming done at keypad. Rugged clutch mechanism insures long life & durability. Accommodates 100 Users with 3-6 digit PIN codes, including: Master, 10 Manager codes, 90 User codes, and 3 Service codes. Auto-locking, but may be programmed to passage mode. Always an instant, panic free exit with inside lever. New! Remote Release Kit for ‘Buzz-In’
- Easy to install. Retrofits most cylindrical locksets and digital locks
- Key Override: Includes 6-pin standard cylinder with a Schlage SC1 keyway. You may also use other Schlage cylinders, or Corbin-Russwin CL, Sargent 480, ASSA 65-611, & Lori cylinders
- Battery operation: 5 AA’s; low battery alerts; lock may be hard-wired with 9VDC or 9VAC power supply for remote release / battery backup
- Backset: 2 3/4″ included (2 3/8″ available at checkout) How do I measure?
- Base Model p/n: DL2700/26D
- 2 Year manufacturer warranty
