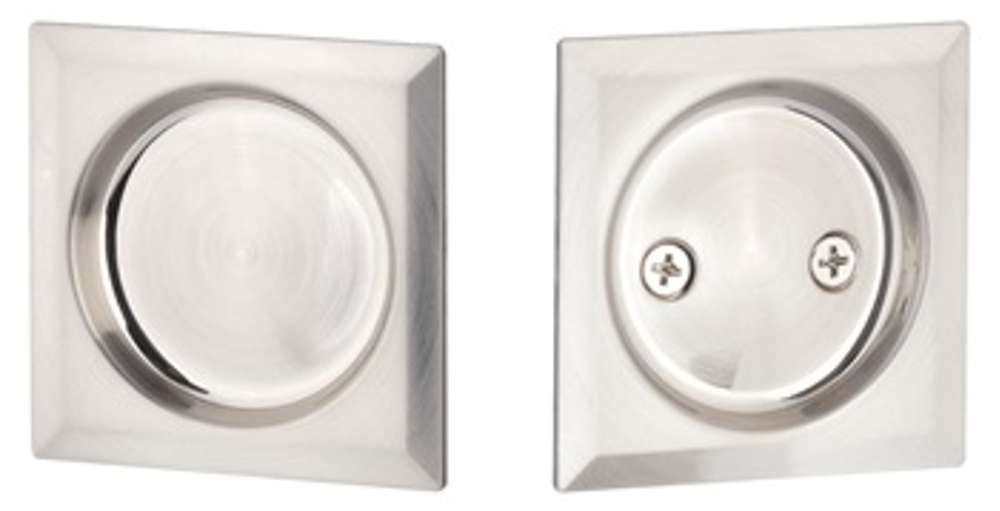

Yale Expressions YTPDSQU62.US15 Passage Tubular Pocket Door Lock
A more geometric answer to our Round alternative, the Square Tubular Pocket Door Lock also easily assembles in a standard tubular door prep and includes passage or privacy function options in a range of finishes.
Finish: The Yale Expressions Square Passage Pocket Door Lock comes in Brass (US3), Satin Brass (US4), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Flat Black (US19), and Polished Chrome (US26) finish.
- Universal handing: Fits both right and left-handed doors.
- Easy assembly in a standard tubular door prep.
Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: 2-3/8" backset.
Door Prep: 2-1/8" face bore, 1" edge bore, 1" x 2-1/4" radius corner.
Dimensions: 2-7/16" W x 3/8" D.
