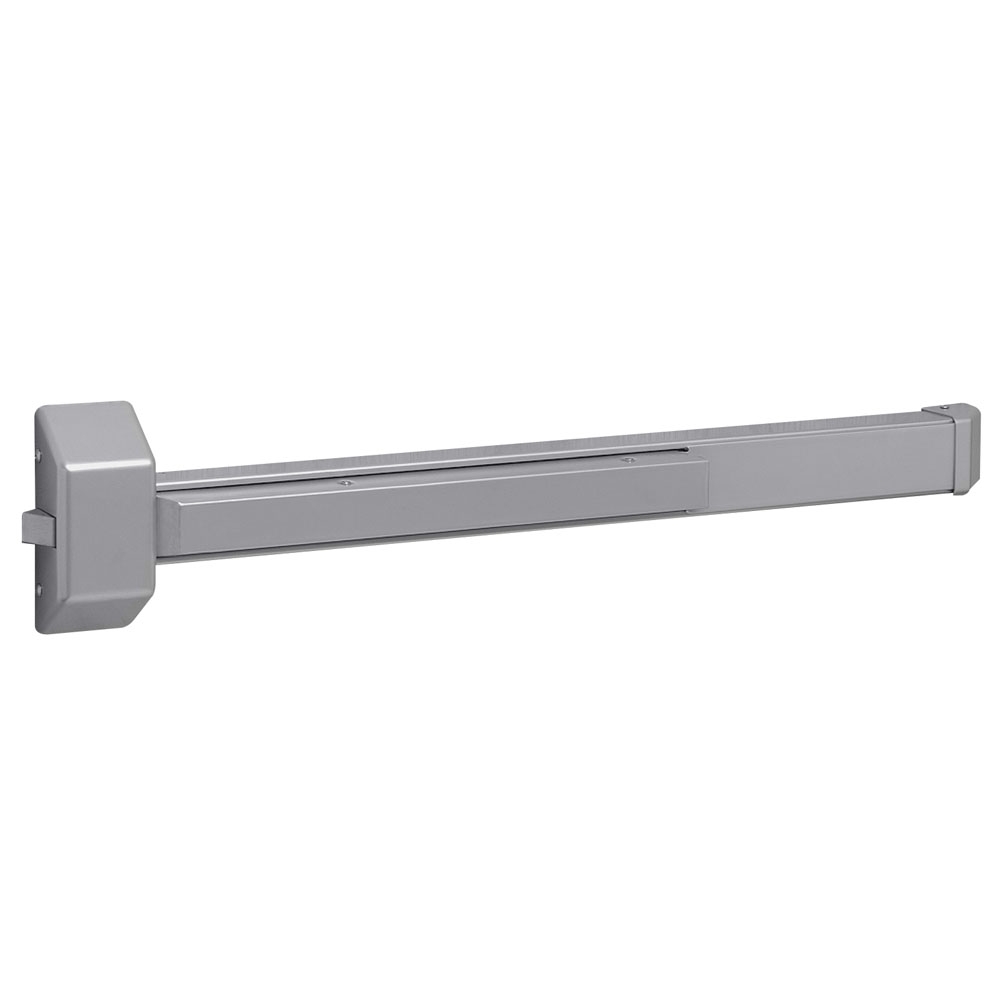

Sargent 3828F-EN Rim Exit Device, 36", Sprayed Aluminum

SKU # SA/3828F-EN

Read Review(s) | Log in to Review

The Sargent 3828F-EN Rim Exit Device, 36", Sprayed Aluminum is a  Rim Exit Device and is part of the Sargent 30 Series Exit Devices. 30 Series has rugged exit devices in surface vertical rod and rim designs. The chassis mounted unit construction assures easy installation and maintenance. All exit devices meet ANSI/BHMA Standard 156.3, Grade 1,  UL Listed, and  UL Listed to Canadian safety standards.

Features include:
  • Rim Exit Device
  • For Doors: 33 - 36 inches length. 1-3/4" (44mm) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door application using standard 649 strike
  • Mounting: Furnished standard with wood and machine screws
  • Cover: Steel
  • Chassis: Nonferrous alloy
  • Rail Assembly: Roll formed steel
  • End Cap: Steel
  • Hand: Non-Handed
  • Latchbolt: Stainless steel 3/4" (19mm) throw
  • Strike: 649 packed standard
    • Standard for 3828
    • Surface applied
    • Standard & Fire Rated
    • Stikres are blank nylon coated
  • Dogging Feature: Allen-type key furnished standard
  • Sprayed Aluminum
US$474.27

Description:

Description:

Sargent 3828F-EN Rim Exit Device, 36", Sprayed Aluminum

  • Rugged pushpad exit device available in rim and surface vertical rod designs
  • Pushpad extends slightly more than half of the length of the full device
  • Available in five functions with a variety of trim and finish options
  • Suitable for single or double door applications

Benefits

  • Strong and Reliable: Rugged design with steel endcaps and covers to withstand abuse
  • Aesthetics: Attractive design featuring a tapered push rail and angled covers

Specifications

  • Handing: Non-handed
  • ANSI/BHMA Grade: Grade 1
  • Door Height: 96"
  • Minimum Door Width: 48"
  • Warranty: 3-year limited warranty

Features:

Features:

The Sargent 3828F-EN Rim Exit Device, 36", Sprayed Aluminum is a  Rim Exit Device and is part of the Sargent 30 Series Exit Devices. 30 Series has rugged exit devices in surface vertical rod and rim designs. The chassis mounted unit construction assures easy installation and maintenance. All exit devices meet ANSI/BHMA Standard 156.3, Grade 1,  UL Listed, and  UL Listed to Canadian safety standards.

Features include:
  • Rim Exit Device
  • For Doors: 33 - 36 inches length. 1-3/4" (44mm) thick standard. 4-1/2" (114mm) minimum stile width required for single or double door application using standard 649 strike
  • Mounting: Furnished standard with wood and machine screws
  • Cover: Steel
  • Chassis: Nonferrous alloy
  • Rail Assembly: Roll formed steel
  • End Cap: Steel
  • Hand: Non-Handed
  • Latchbolt: Stainless steel 3/4" (19mm) throw
  • Strike: 649 packed standard
    • Standard for 3828
    • Surface applied
    • Standard & Fire Rated
    • Stikres are blank nylon coated
  • Dogging Feature: Allen-type key furnished standard
  • Sprayed Aluminum
