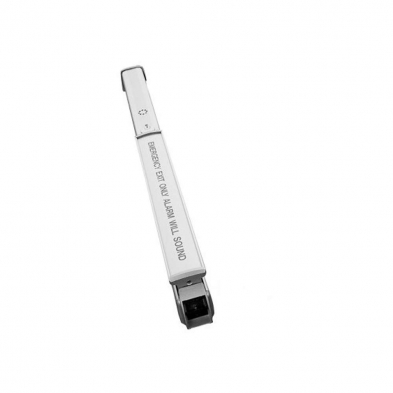

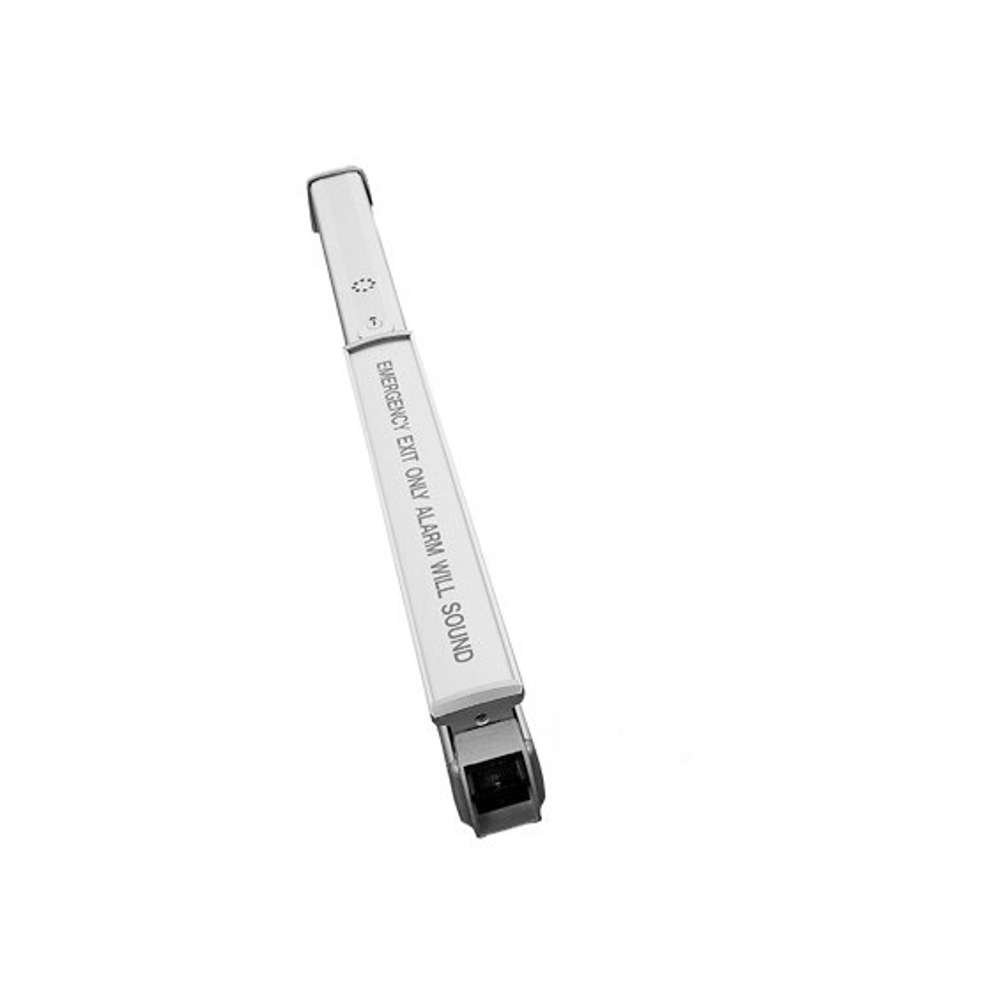

RCI L1200F-X-40 Mechanical Rim Exit Bar

RCI L1200F-X-40 Mechanical Rim Exit Bar

RCI 1200 and 1300 Series exit devices resolve the conflict between life safety and security. Both1200 Mechanical and 1300 Electric Series exit devices feature a patented latch that rotates to engage and grip the specially designed strike. This unique interlocking grip action secures the door to the jamb without conventional roller strikes or retracting latches. In addition an interlocking mechanism located in the chassis offers a double interlocking system which makes these exit devices virtually impossible to tamper with, pry or force open. The attractive lever trim can be used on the exterior side of the door for access.

Features:

• Pushbar, no latch or strike
• Ideal for easy egress to release electromagnetic lock
• Specify SS1 (SPDT) 3A@30VDC (Inductive), 4A@30VDC (Resistive)
• Specify SS2 (Two SPDT) 3A@30VDC (Inductive), 4A@30VDC (Resistive)
• Standard lengths for 36" (3 feet) and 48" (4 feet) doors
• Can be field cut for undersized doors

1200A(Rim Exit Device No Trim).
1200F (Fire Rated Exit Device No Trim).
1200C (Cylindrical Dog No Trim).

- Brushed Anodized Aluminum (US28) or Brushed Anodized Dark Bronze (313).

• cULus listed (3-hour Fire Exit Hardware)
• Fits any 3-foot wide (or smaller) door (narrowline aluminum, pre-cut stock metal or standard wood)
• Models 1200L/1300L available for 4-foot wide doors
• Available with cam lock dogging and cylinder dogging (see options)
• Model 1300 includes a 24VDC continuous-duty solenoid which provides a remote unlock feature for controlled entry. (12VDC also available)
