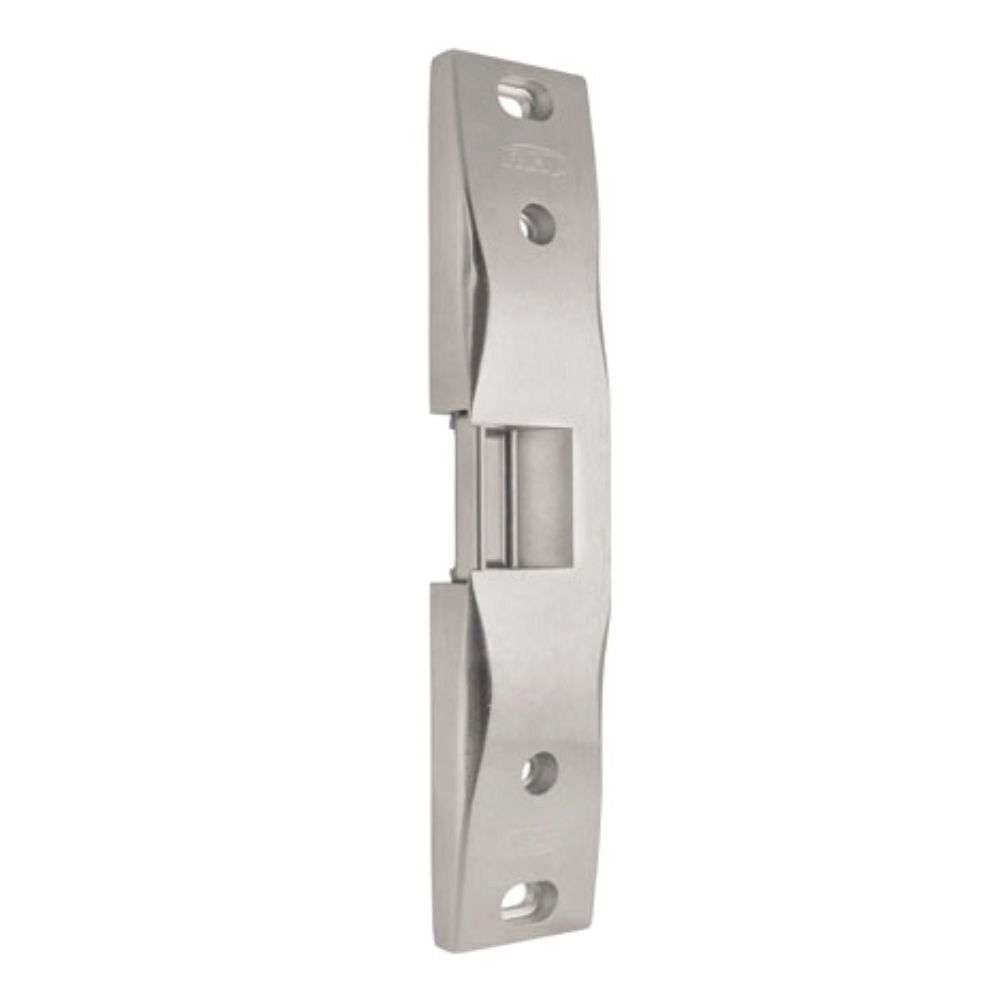

RCI 0162-32D Electric Strike
The 0162 electric strike accommodates ½” to ¾” latch projection and is designed for use with Pullman latch rim exit devices. As a completely surface mounted strike the RCI 0162 requires no cutting of the door frame. The rugged stainless-steel strike accommodates hollow metal, aluminum and wood door frames. Its heavy-duty housing is reinforced to eliminate twisting in the case of imperfect frames. The one-piece conventional keeper promotes even load distribution for increased security in the event of an attempted forced entry.
- Energy: 500mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
- Strength: 1,500lbf Static 70ft-lb Dynamic
- Endurance: 250,000 Cycles
- Mode: Fail-Secure
- Latch Monitor: Optional Latch Monitor Model Available
- Fire-Rated: Optional 3-Hour Model Available
- Warranty: 10 Year Limited
Technical Details
- Dimensions: 1-3/4"W x 9"H x 3/4"D (45mm x 229mm x 20mm)
- Brushed Stainless Steel (32D) finish
- Factory tested to over 4-million cycles of operation
- UL 294 Listed for Access Control Unit Accessory
- UL 1034 burglary-resistant Listed
- UL 10C, 3-hour fire-rating Listed2
- CAN/ULC S104 3-hour fire-rating Listed2
- California State Fire Marshal Listed (CSFM: 3776-2127:0101)2
- Patent #: US 7,722,097
- Patent #: Cdn 2,597,916
- For fire-rated models
Accessories
- 0162DDH - Double door housing, SPC finish (SPC=Silver Powder Coat)
- 0162MSK - 1/16" (1.5mm) mounting spacer
- Note: UL 1034 Burglary-resistant listing and fire-rating do not apply with use of 0162DDH.
Applications
- Commercial Centers
- Industrial Buildings
- Educational Facilities
- Retail Outlets
- Health Care Facilities
- Office Complexes
