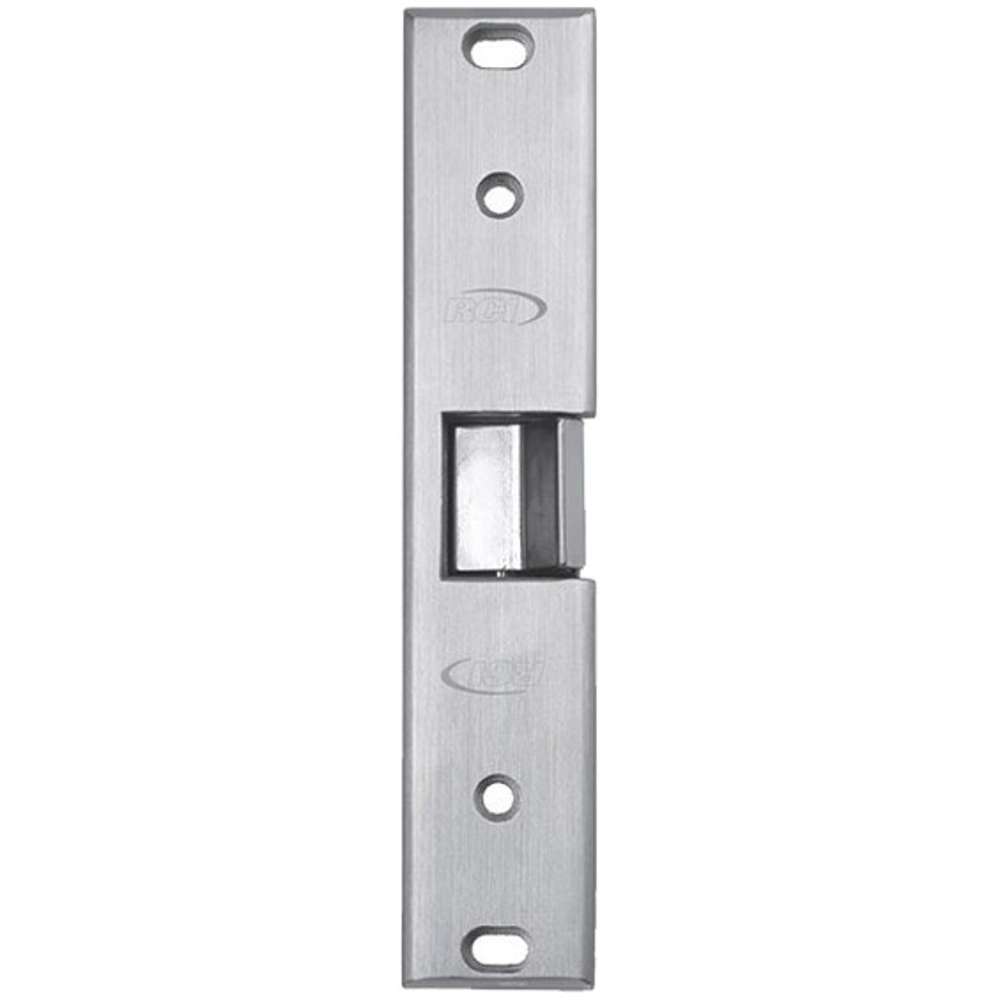

RCI 0161-08-32D Electric Strike

RCI 0161-08-32D Electric Strike

- Universal design accommodates most manufacturers' exit devices.
- Accommodates 1/2" to 3/4" Pullman latch projection.
- The 1-5/8" deep electrical insert may be horizontally adjusted after final installation to correct door misalignments without altering the original faceplate location (A minimum frame depth of 1-5/8" for surface-mounted installations).
- AC or DC input acceptable to all models.
- Fully reversible for left or right-hand doors.
- Available in Brushed Stainless Steel (32D) finish.
- Applications: Commercial Centers, Industrial Buildings, Educational Facilities, Retail Outlets, Health Care Facilities & Office Complexes.
- Door Frame Type: Hollow Metal, Aluminum & Wood.

- UL1034 Burglary-resistant listed.
- UL Listed: Static strength: 1500 lbs. Dynamic strength: 70 ft-lb.
- Fully reversible (non-handed).
- Extensive Horizontal adjustment.
- Secure lock-down holes.

RCI 0161-08-32D Electric Strike

"For Use with Rim Exit Devices with Pullman Latch"

- Finish: Brushed Stainless Steel (32D).
- Select Voltage: 12V (0161-05) or 24V (0161-08).

• Semi-mortise rim strike designed for use with Pullman latch rim exit devices
• Accommodates 1/2" to 3/4" (13mm–19mm) latch projection
• Ensures proper latch alignment with horizontal adjustment
• Stainless steel ensures superior strength and creates a sleek aesthetic design
• Lockdown holes for secure mount
• Non-handed
• 200mA 12VAC/VDC Or 24VAC/VDC (Max at 12VDC)
• 1,500lbf Static 70ft-lb Dynamic
• 500,000 Cycles
• Fail-Secure
