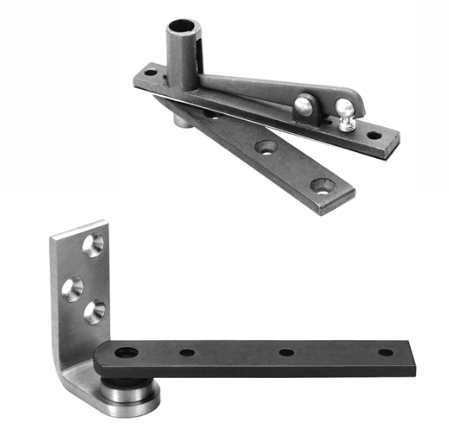

Rixson 127-3/4-605 Center Hung Side Jamb Attached Pivot

The Rixson 127-3/4-605 Center Hung Side Jamb Attached Pivot is a light-duty pivot system designed for interior center-hung door applications. This jamb-mounted pivot configuration provides reliable support and alignment while ensuring smooth and consistent door operation.

Manufactured by Rixson, an ASSA ABLOY brand, this pivot is ideal for lightweight doors in commercial or institutional environments. The bright brass finish offers a classic architectural appearance, while the non-handed design allows for flexible installation.

The Rixson 127-3/4-605 Center Hung Pivot includes the following features:

• Center-hung side jamb attached pivot
• Light-duty pivot system for interior doors
• Bright Brass (605) finish
• Non-handed configuration for flexible installation
• Supports doors up to 200 lbs
• Accommodates door sizes up to 3'6" x 8'6"
• Includes standard #320 top pivot
• Bottom pivot mortised into side jamb
• Weight of door is supported at the floor
• Pivot point centered within door thickness
• Provides smooth and consistent door operation
• Designed for interior use only
• Requires radius edge on pivot side of door
• Not suitable for labeled (fire-rated) openings
• Furnished with wood and machine screws
• Extended spindles available for custom applications
