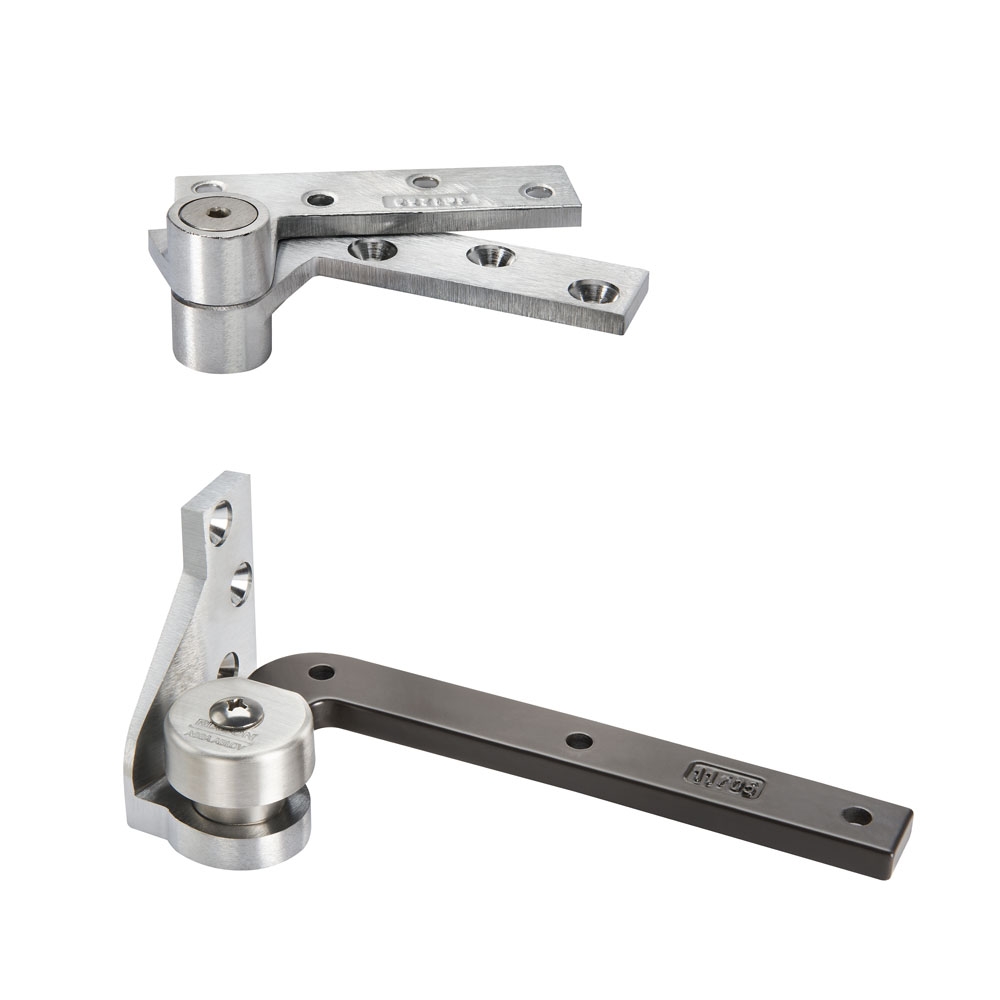

Rixson 117-1/4-LH-626 3/4" Offset Pivot, Includes Top Pivot

The Rixson 117-1/4-LH-626 Offset Pivot Set is a light-duty pivot system designed for interior offset door applications. This jamb-attached configuration provides reliable door alignment and smooth operation while maintaining a clean and efficient installation.

Manufactured by Rixson, an ASSA ABLOY brand, this pivot set includes the standard #180 top pivot and features a 3/4" offset. It is ideal for lightweight commercial or institutional doors where consistent performance and ease of installation are required.

The Rixson 117-1/4-LH-626 Offset Pivot Set includes the following features:

• 3/4" offset pivot set with included top pivot
• Left-hand (LH) configuration
• Satin Chrome (626) finish
• Light-duty pivot system for interior doors
• Includes standard #180 top pivot
• Jamb-attached pivot configuration
• Bottom pivot mortised into side jamb
• Supports doors up to 250 lbs
• Accommodates door widths up to 3'6"
• Provides smooth and reliable pivoting operation
• Weight of door is supported at the floor
• Compatible with intermediate pivots for taller doors
• Non-ferrous base material construction
• Not suitable for fire-rated openings
• Requires beveled door edge (1/8" in 2")
• Furnished with wood and machine screws
• Extended spindles available for custom applications
