Pemko 315CN-84 315CN 36 Alum Door Bottom Sweep EPDM Insert

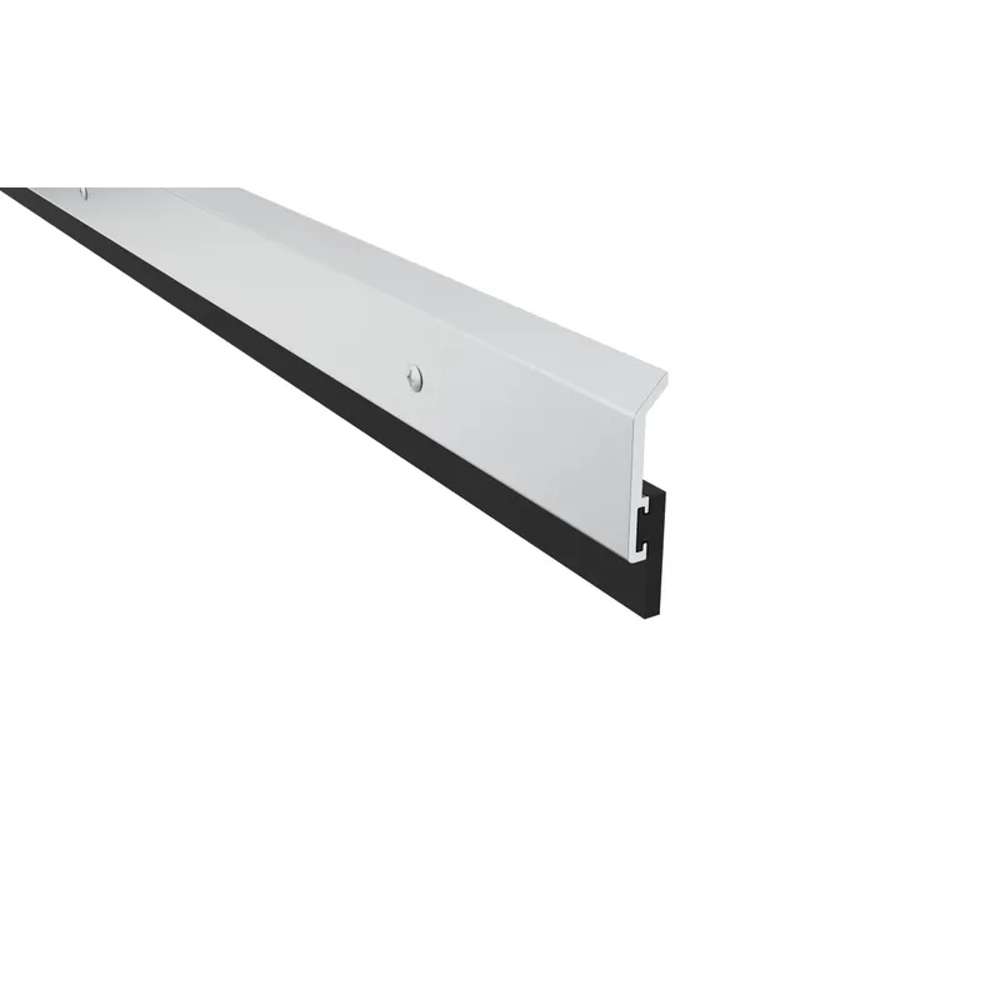

Pemko 315CN-84 315CN 36" Clear Aluminum Door Bottom Sweep with EPDM Insert

The 315_N Surface Plate Door Sweep is designed with a 1.25" aluminum casing and a neoprene extrusion that is rated for smoke, fire, and air infiltration. It creates a seal between the door bottom and the threshold/floor surface. Available in various finishes and sizes, this door sweep is easy to install. Screws are included and color-coordinated with the casing.

• Base Material: Aluminum, Brass, Stainless steel
• Fasteners: PHSMS #6 x 5/8"
• Minimum Length: 24"
• Width: 1/4"

Pemko 315CN-84 315CN 36" Clear Aluminum Door Bottom Sweep with EPDM Insert

• Slotted holes for easy adjustment
• Recommended compression of gasket is 1/16"
• Fitted with a neoprene synthetic rubber extrusion
• Surface applied
• Seal up to a 7/16" the gap between the door and threshold or to the floor surface
• Not recommended in situations that involved significant gasoline or other fuel oil, kerosene, propance, or mineral oil

Click Here for Pemko 315-N Door Sweep Cut Sheet

Click Here for Pemko Product Catalog
