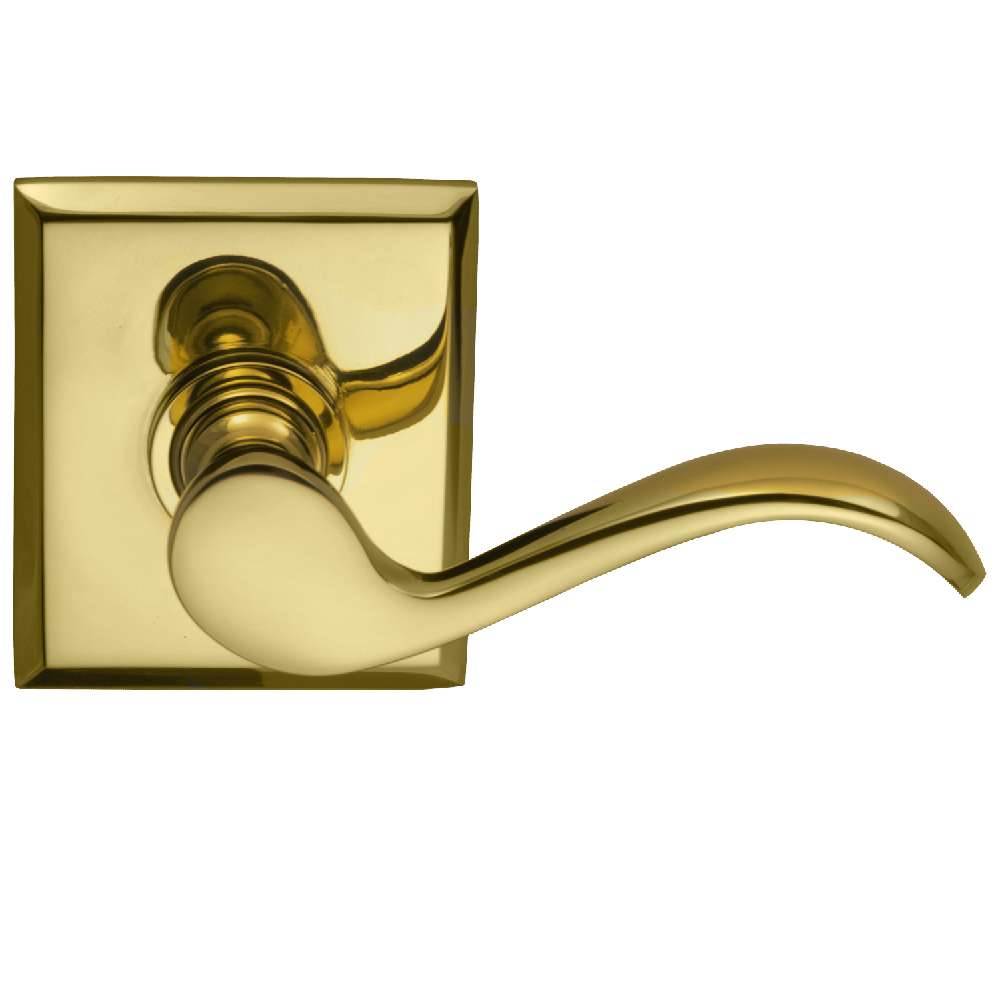

Omnia 895RT, Scroll Lever with Contemporary Rectangular Rose
Contemporary looking, the Scroll Lever with Rectangular Rose has a modern rose that really updates the traditional style lever and makes it something truly chic. It is available in single dummy, double dummy, passage, and privacy functions. Both the single dummy and the double dummy functions feature concealed surface mounting for easy installation. The passage and privacy functions are available for either 2-3/8" or 2-3/4" backsets and the two functions are packaged for both 1-3/8" or 1-3/4" thick doors. A delicate blend of sharp and soft lines, this Omnia made leverset is very now, but its classic beauty will never go out of style; and with quality like Omnia's it is sure to be around a long time. Available in 7 finishes.
Features of the Scroll Leverset:
Concealed screw mounting.
Full lip strike comes standard.
28° rotation to retract latch.
Covers 2-1/8" bore hole.
Omnia Prodigy Installation Instructions (PDF)
Specifications of the Omnia 895RT Scroll Lever with Rectangular Rose:
Lever Length: 4-3/8"
Lever Projection: 2-3/4"
Rose Width: 2-5/8"
Rose Height: 3"
Backset: Optional 2-3/8" or 2-3/4"
Door Thickness: 1-3/8" or 1-3/4"
When Selecting a Function:
Single Dummy: A stationary lever for use as a pull or to match trim on one side of door. Includes 1 lever, 1 rose, and mounting screws.
Passage (hall or closet): For doors that don't need locking. Latch operates from either side of door. Complete set - 2 levers, 2 roses, 2 sub-roses, tubular latch, strike plate, spindle, and mounting screws.
Privacy (bedroom or bathroom): For doors that could need locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy and retract latchbolt. Complete set - 2 levers, 2 roses, 2 sub-roses, privacy button, tubular latch, strike plate, spindle, and mounting screws.
