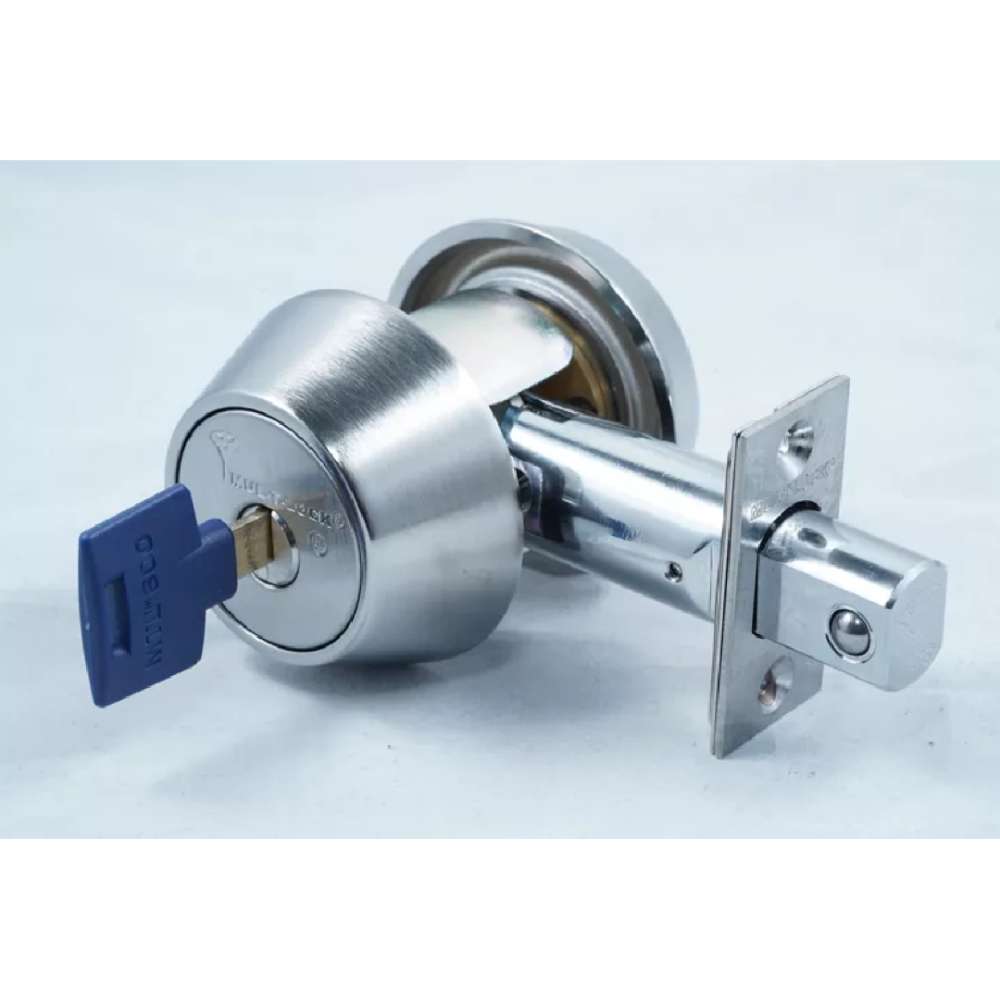

Mul-T-Lock 206SP-HD1-26-D Hercular Grade 1 Deadbolt Single Cylinder Thumbturn MTL-600 Chrome
Application
High Security deadbolt system for commercial and residential doors.
Operation
90˚ key rotation throws the bolt 1" towards the frame, interlocking two hardened ball bearings with the strike to increase jimmying resistance.
Options
Standard faceplate
Drive in (for beveled doors)
Double cylinder
Single cylinder
Captive key deadbolt
Materials
Ring and cylinder: solid brass
Bolt anti drilling ring: hardened steel
Strike: steel
Pins: nickel silver and stainless steel
Standard Finishes
Nickel chrome matte; Nickel chrome; PVD
Special finishes
Antique brass; 10B
Lifetime Finishes
US3; US26; US26D; US5A; US10B6
Cylinder Mechanism
Mul-T-Lock's unique, high-precision pin tumbler system.
Keys
Reversible nickel silver key with plastic key head and colored insert.
Also available in all nickel silver.
Cylinder platforms
Classic; MTL™400; MTL™600; MTL™800
Cylinder Options
Keyed different
Keyed alike
Master keyed
'3 IN 1' (changeable combination)
Standards
UL437; UL; Conforms to ANSI GRADE 1
Notes
Spacers required for doors less than 38 mm width.
