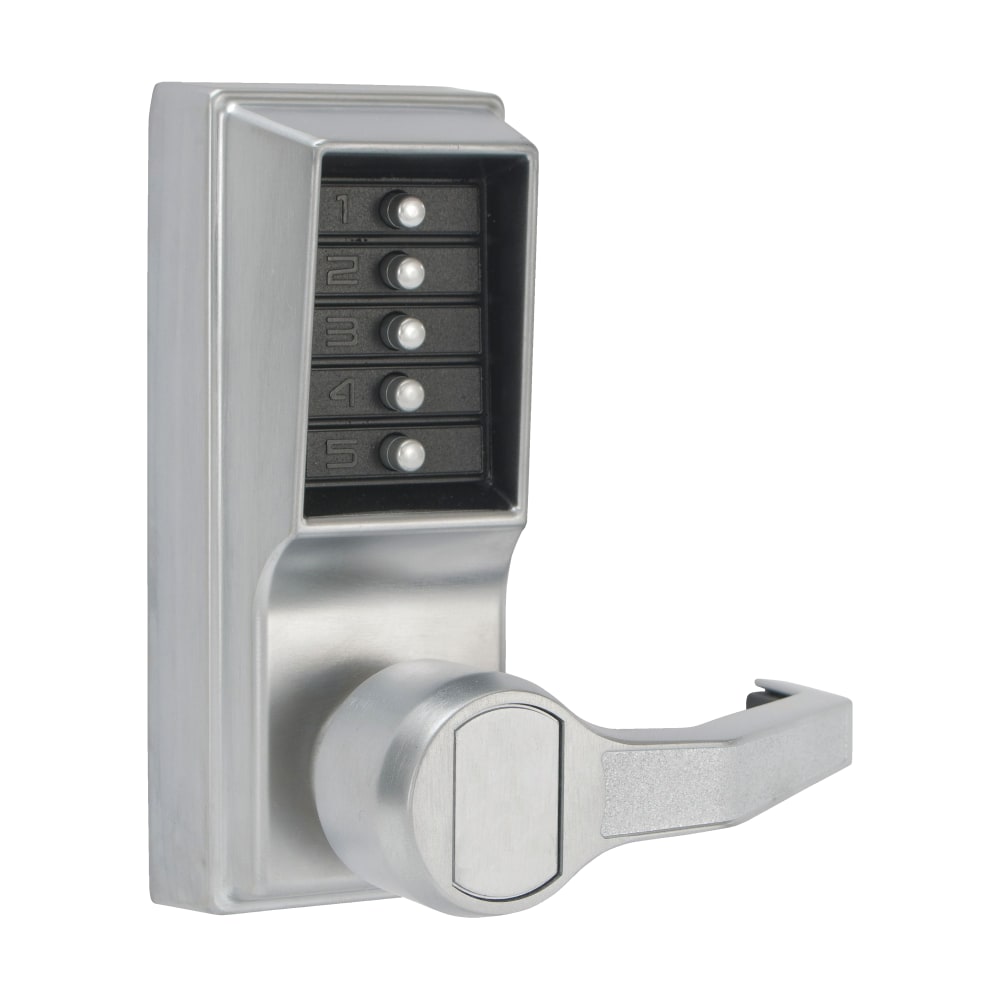

Kaba Simplex LR1011-26D Combo Lever No Override RH

SKU # SI/LR1011-26D

The Kaba Access Simplex LR1011-26D Combo Lever Lock, No Override RH mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.

- Function:
      - L1011 (Combination Entry Only, No Key Override).

Finish: Satin Chrome (26D).
- Handing: LR = Right Hand.
- Delivery: The Simplex LR1011-26D Pushbutton Lock is In Stock and available to ship.

- Special Orders: For pricing on any Simplex L1000 Lock not on this page please contact Taylor via e-mail (sales@taylorsecurity.com) or call 1-800-676-7670.

US$407.68

Description:

Description:

LR1011 - Pushbutton Lock with Lever by Simplex / Unican

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, elimates the material and labor expense of battery replacements, has a single-code and is programmed via the keypad without removing the lock from the door.

Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements.
Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors.
Number of Codes: Single access code - one easy-to-manage code for all users.
Programming: Lock is easily programmed via keypad without removing lock from the door.
Handing: Factory-handed; not field reversible.
Economical: A cost effective access control solution.

Door Thickness: 1-3/8" to 2-1/4".
Strike: T-Strike plate, ASA strike plate. DB strike box.
Backset: 2-3/4" backset.
Finish: Satin Chrome 26D (626).

Operation Modes:
   - L1011 - Combination Entry, No Key Override.

Special Order Information: For pricing on any function, keyway or finish of the Simplex L1000 Series not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.

Specifications:

Specifications:

Click Here for Simplex L1000 Spec Sheet

  • No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door
  • Handing: Factory-handed; not field reversible
  • Economical: A cost effective access control solution

Mechanical Features

  • Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed; not field reversible
  • Standard Finish: Satin Chrome 26D (626))
  • Backset: 2¾" (70 mm), 2⅜" (60 mm)
  • Latch: ½" (13 mm) throw latch
  • Minimum Stile Recommended: 5" (127 mm)
  • Weight: 8.25 lbs. (3.7 kg)
  • Strike: Standard strike plate; ASA strike plate

Installation

  • Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
  • Items Supplied Include: Lock assembly, installation manual, full-scale template, combination change plug and access key, and required installation hardware

Certification and Testing

  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
