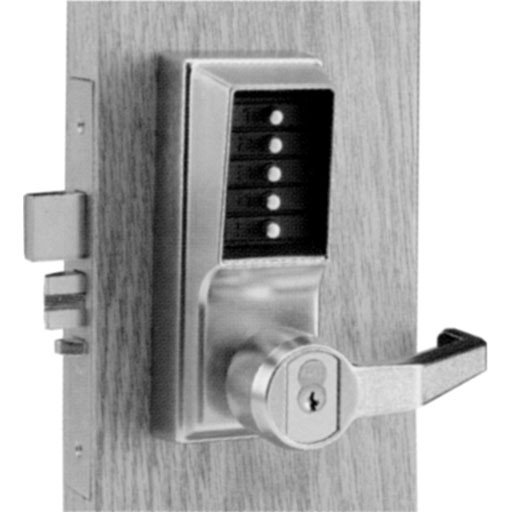

Kaba Access Combination Mortise Lever Locksets

SKU # SIL8140

Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.


G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
Pricing varies based on options selected below.
US$554.40

Specifications:

Specifications:

  • Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.
  • No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Locking Device Options: Mortise with 1" (25 mm) deadbolt, ¾" (19 mm) two-piece anti-friction latch
  • Mortise with ¾" (19 mm) two-piece anti-friction latch
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door
  • Handing: Factory-handed; not field reversible
  • Key Override (Optional): Small format interchangeable cores, large format removable cores
  • Lockout (all models)—disables the lock from the inside so that the entry codes cannot be used to gain access. Access is permitted using key override.

Mechanical Features

  • Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed; not field reversible
  • Standard Finish: Satin Chrome 26D (626)
  • Backset: 2¾" (70 mm)
  • Latch: ¾" (19 mm) two-piece anti-friction latch;
  • Minimum Stile Recommended: 5" (127 mm)
  • Weight: 9.8 lbs. (3.7 kg)
  • Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
