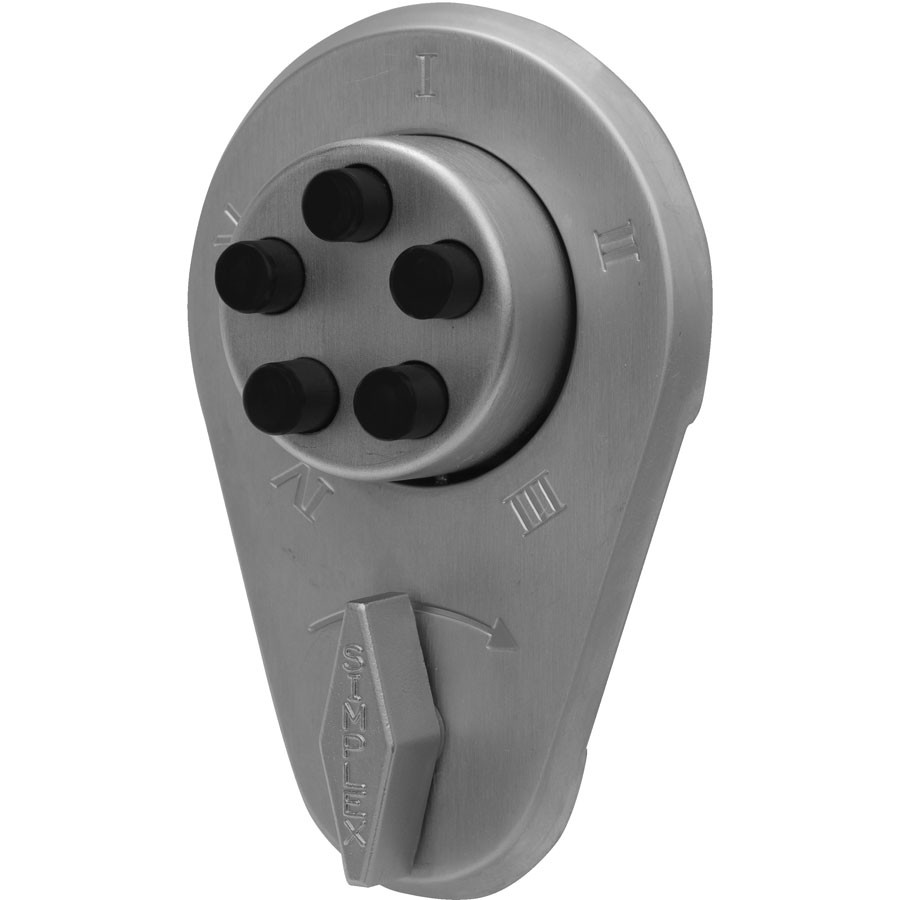

Kaba Access 900 Series Combination Door Locks

SKU # SI900

The 900 Series auxiliary lockset provides fully mechanical access control, while allowing free egress at all times by interior thumbturn. Deadbolt models are manually relocking. Deadlocking spring latch models automatically relock each time the door closes, with standard latch holdback. 900 Series locksets are suitable for commercial or residential applications. The lock mounts above an existing lockset, or can be used alone.

Pricing varies based on options selected below.
US$154.55

Specifications:

Specifications:

  • Construction: All metal; cast rear housing; force-proof clutch-protected thumbturn; exterior brass trim plate

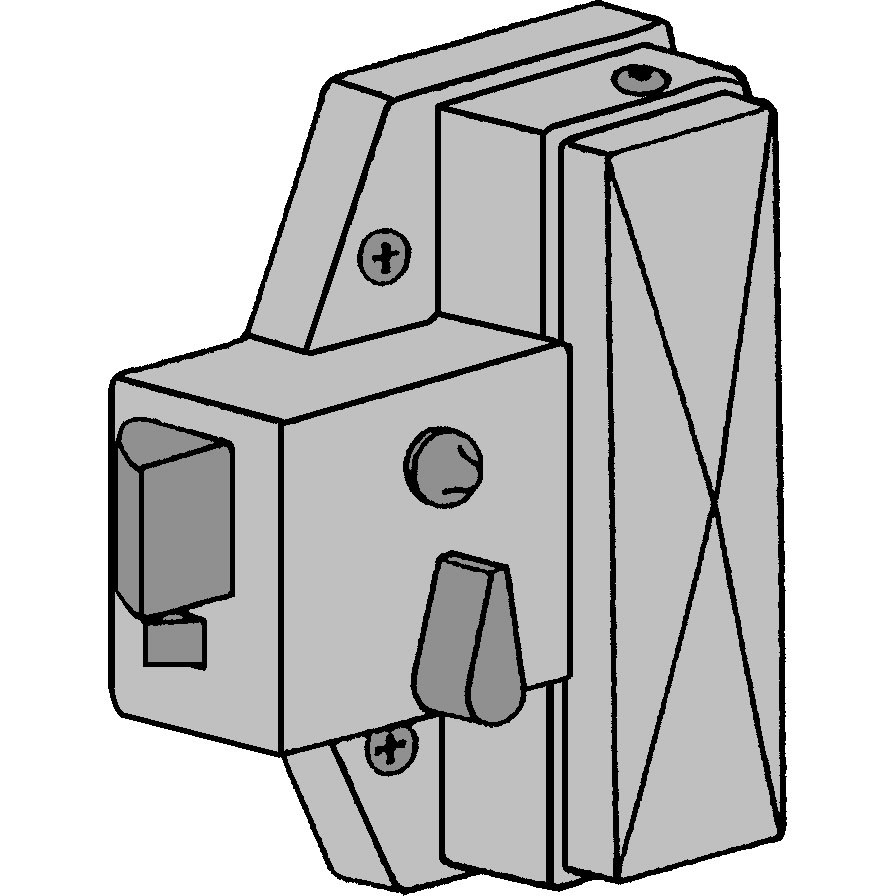

  • Installation: Rim type spring latch (surface mounted on inside of door); through-bore 1 5⁄8" for barrel, 3⁄4" (19 mm) for thumbturn and 7⁄8" (22 mm) for optional key override; face plate covers mounting  holes
  • Door handing: Field reversible latch. Invert the lock for right hand doors. Roman numerals are easily read in either orientation.
  • Numeric pushbuttons: Vandal resistant, 5 button, anodized aluminum, mechanical
  • Weight: 4 lbs. (1.8 kg)
  • Strike: Includes strike plate for outswing doors, cast box strike for inswing doors. Metal door frames require the optional surface mortise box strike, or use of an adapter kit (see accessories)
  • Latch: 1" (25 mm) deadbolt, or rim spring latch with deadlocking trigger and latch holdback
  • Backset: 29⁄16" (65 mm) for outswing doors, 2 1⁄2 (64 mm) for inswing doors
  • Door thickness: Standard models 13⁄8" (35 mm) to 11⁄2" (38 mm) or 13⁄4" (44 mm) to 2 1⁄8" (54 mm)
