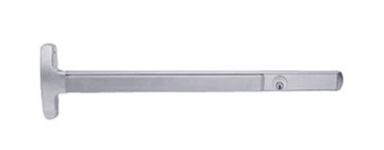

Falcon 24-C-EO-3-26D 24 Series Exit Device

Specifications

Device functions: EO - Exit Only

Device lengths:

• 3' For Doors Up to 36" Wide - Min door opening width: 2' 7 3⁄8"
• 4' For Doors Up to 48" Wide - Min door opening width: 3' 1 3⁄8"

Dogging Options: Hex Key Dogging

Door Stile: 2 1⁄4" (6" for wood doors)

Handing: Field reversible

Strikes: 4188 mortised top and 2130 flush strike bottom, optional bottom 2126A and 4155.

Latchbolt: Top stainless steel, top latch 3⁄4" throw. Bottom bolt 1⁄2"throw.

Deadlocking latchbolt: Standard with top latch.

Latch retention hold: Standard with top latch.

Projections: 2 3⁄4" maximum, 2" dogged

Fasteners: All mounting screws are concealed, sheet metal screws standard, machine screws available

Vertical rods: Furnished to length based on 40" horizontal CL to finished floor and a 7'0" door

ANSI: Certified ANSI A156.3-2001 grade 1 standards

Finishes: US3 (605); US4 (606); US10 (612); US11 (643e); US15 (619); US19 (622); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN (710)

Option: Motorized electric latch retraction

• Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction. The MEL option is available on panic and fire rated devices. Because fire exit hardware must be self latching, an automatic fire alarm system must be incorporated to drop power to fire rated MEL devices in case of fire.

Device Monitoring

• RX Monitoring
• The RX feature monitors the depression of the touch bar or crossbar. Activation of the switch indicates use of a door
• or that the door is in the dogged condition. This feature is especially useful when used to activate or shunt magnetic
• locking systems.

Features and benefits

• • Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• • Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• • On-board installation and troubleshooting diagnostics built into the motor assembly
• • Self-calibrating motor assembly
• • Pushbar is pulled in electronically when dogged
• • Vandal resistant – detects and responds to events of attack and tampering

MEL system requirements

• The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple
• components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
• The MEL device is compatible with the following equipment: PS900 Series power supplies - PS902, 904, 906, 914; 900 Series
• Option Boards - 900-2RS, 900-4R and 900-4RL
• A power transfer (EPT, electrified hinge, or door loop) is required and sold separately

The Falcon 24-C-EO-3-26D 24 Series Exit Device is a 24 Series Exit Device.

Specifications include:

• Concealed vertical rod device
• Panic exit hardware
• EO - Exit Only
• For a 3' door width
• US26D - Satin Chrome
• Concealed vertical rods add strength to the door, while maintaining an attractive appearance.
• The Falcon 24-C Series concealed vertical rod device offers great value, clean styling, a versatile narrow stile design and the security benefits of two-point latching.
• Falcon’s patented center slide mechanism allows easy rod adjustment in the field.
