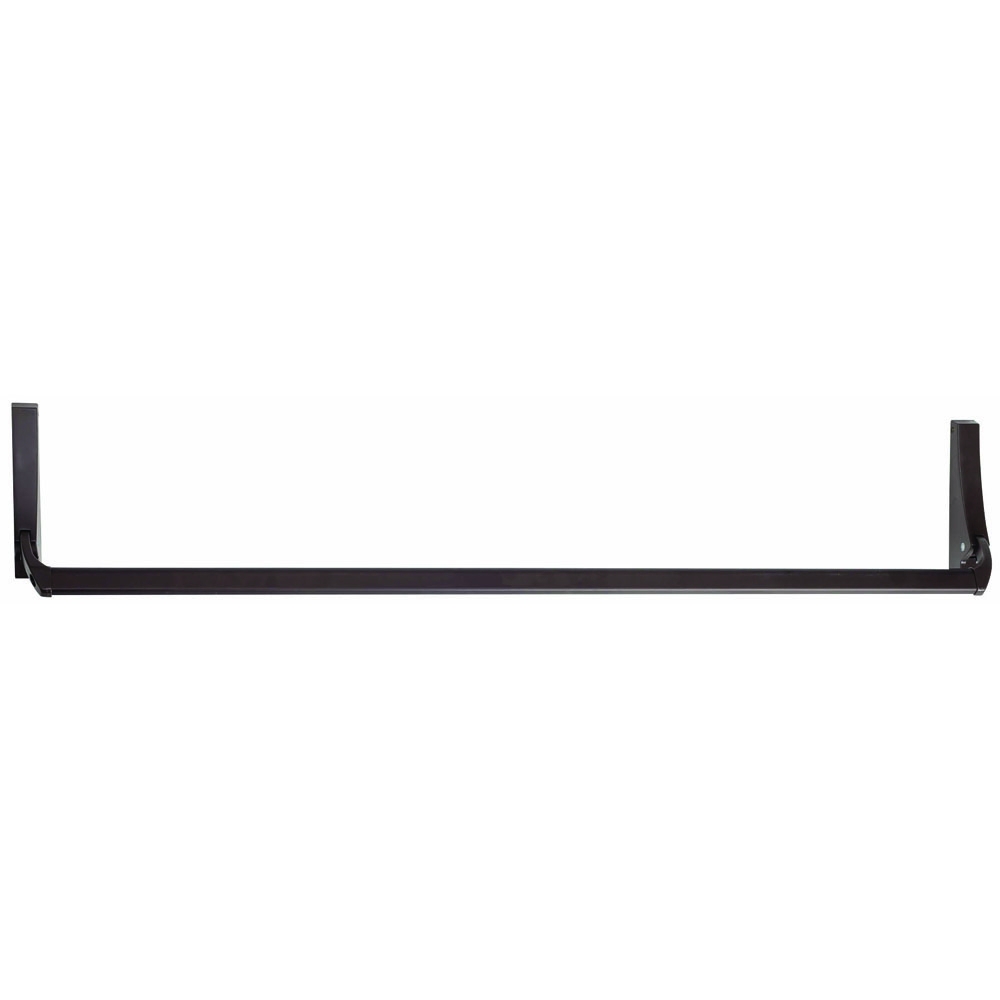

Falcon 1990EO-44IN-P13 Concealed Vertical Exit Device

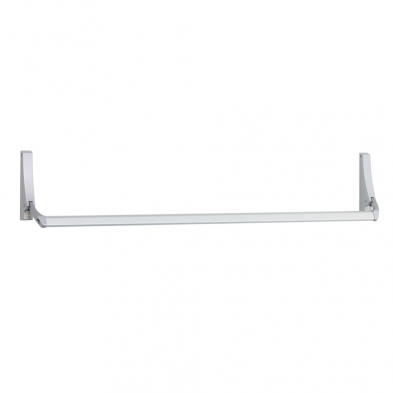

Falcon 1990EO Concealed Vertical Rod Crossbar Exit Device, Exit Only
Tough crossbar design.
The classic look of 1990 has a long history of reliable performance. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation.
1990EO = Exit Only (No Outside Trim Included)
Aluminum cross bar and narrow stile center case to fit small stile aluminum doors
Ideal for retrofit commercial and retail applications, requiring a durable crossbar solution
Comes standard with hex dogging and concealed mounting screws
Field adjustable width, 44″ crossbar standard (51″ option)
Specifications
- Hand: Field reversible, non handed.
- Functions: See trim selection chart on this page.
- Finishes: P28, P13, P35, US26D.
- Strikes: PB48 top.
- Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch, ES - electric strike top latch (optional). Device needs to be less bottom rod (LBR).
- Dogging feature: Hex dogging standard.
- Cylinder: Rim, key entry (NL) or hold back (HB) available (field selectable)
- Sizes: Field adjustable width, 41" crossbar standard extra length cross bar available.
- Doors: 1 3⁄4" thick metal doors.
- Projections: 4 3⁄8" extended, 2 1⁄2" depressed.
- Stile: 1 3⁄4" minimum.
- Fasteners: All mounting screws are concealed.
- ANSI: Certified ANSI A156.3 grade 1 standards.
- UL: UL305 listed.
- Vertical rods: 7' standard, extension rod kits available up to 10'.
