Falcon 1792NL-OP/HB-OP-36IN-US28 Rim Exit Device
1790 Series Exit Devices
Typically used in applications where maintenance is a concern, since the rim device has fewer parts and pieces than other exit devices.
- Cast metal cover plates and end caps provide durability in demanding applications
- Various options, functions, trims and finishes allow for tailoring to any facility needs
- Designed for medium to high use and abuse in institutional applications like schools, hospitals and government facilities
- Certified ANSI A156.3 Grade 1 standards
- UL305 listed

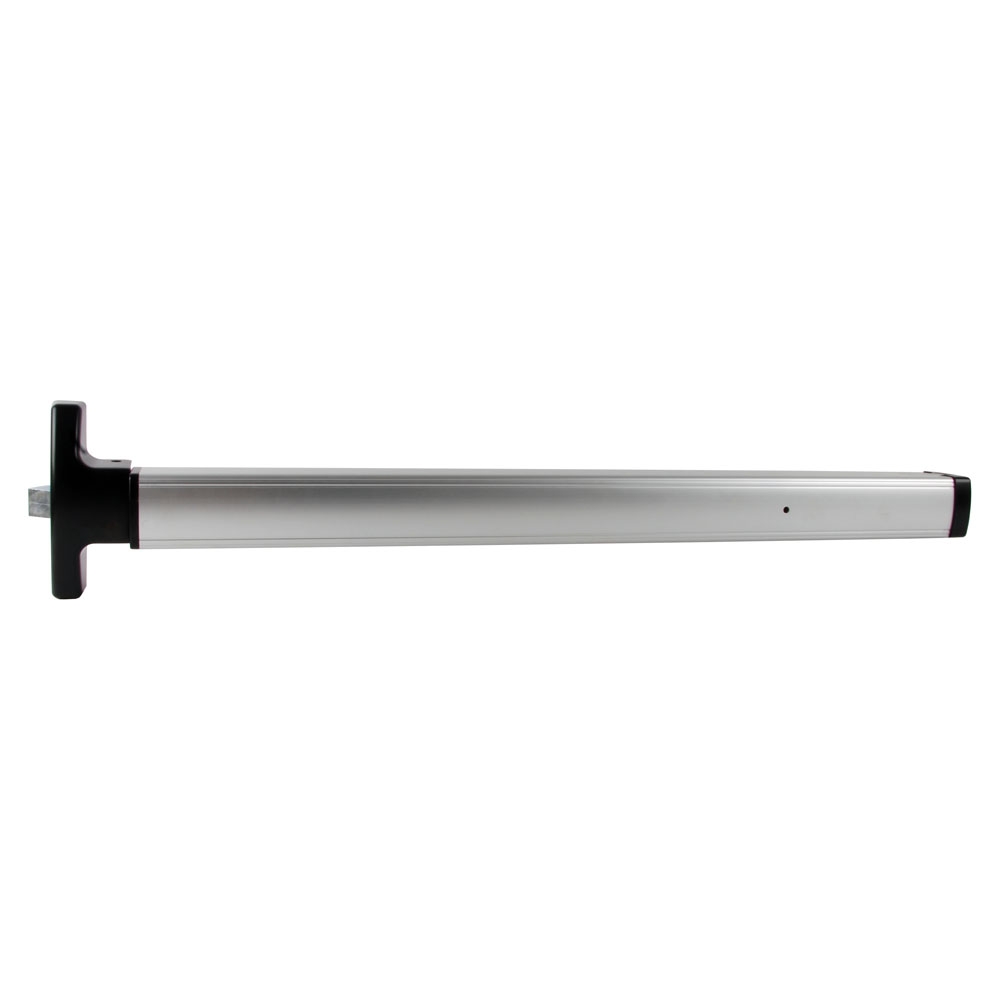

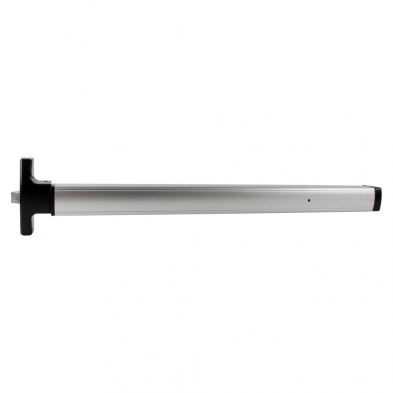

Falcon 1792NL-OP/HB-OP Rim Type Pushpad Exit Device, 36in., Night Latch/Hold Back, Optional Pull, with 179CA and Rim Cylinder
The 1790 Series narrow stile touch bar exit device provides safe and reliable egress that is ideal for aluminum doors. The 1790 is certified ANSI/BHMA A156.3 Grade 1 and boasts a 10-year limited warranty. The 1790 Series rim device is typically used in applications where maintenance is a concern since the rim device has fewer parts and pieces than other exit devices. This results in less maintenance and adjustment. The streamlined design has no openings for chains, reducing code infringements risks and offers increased building security by eliminating tampering and forced entry via coat hangers and other tools.
- 1792NL-OP/HB-OP = With “C Keyway” Rim Cylinder (No Outside Trim Included)
- HB-OP – Hold back, cylinder only: key retracts latch and holds latch back, no pull
- NL-OP – Night latch, cylinder only: key retracts latch but does not unlock exit device, no pull
Projections: 3-3/8″ in neutral position – 2-3/8″ in dogged position
Pushbar Height: 2-1/2″
